12V/24V 20A DC Motor Speed Controller Kit

by: Silicon Chip Magazine
SKU: K6007

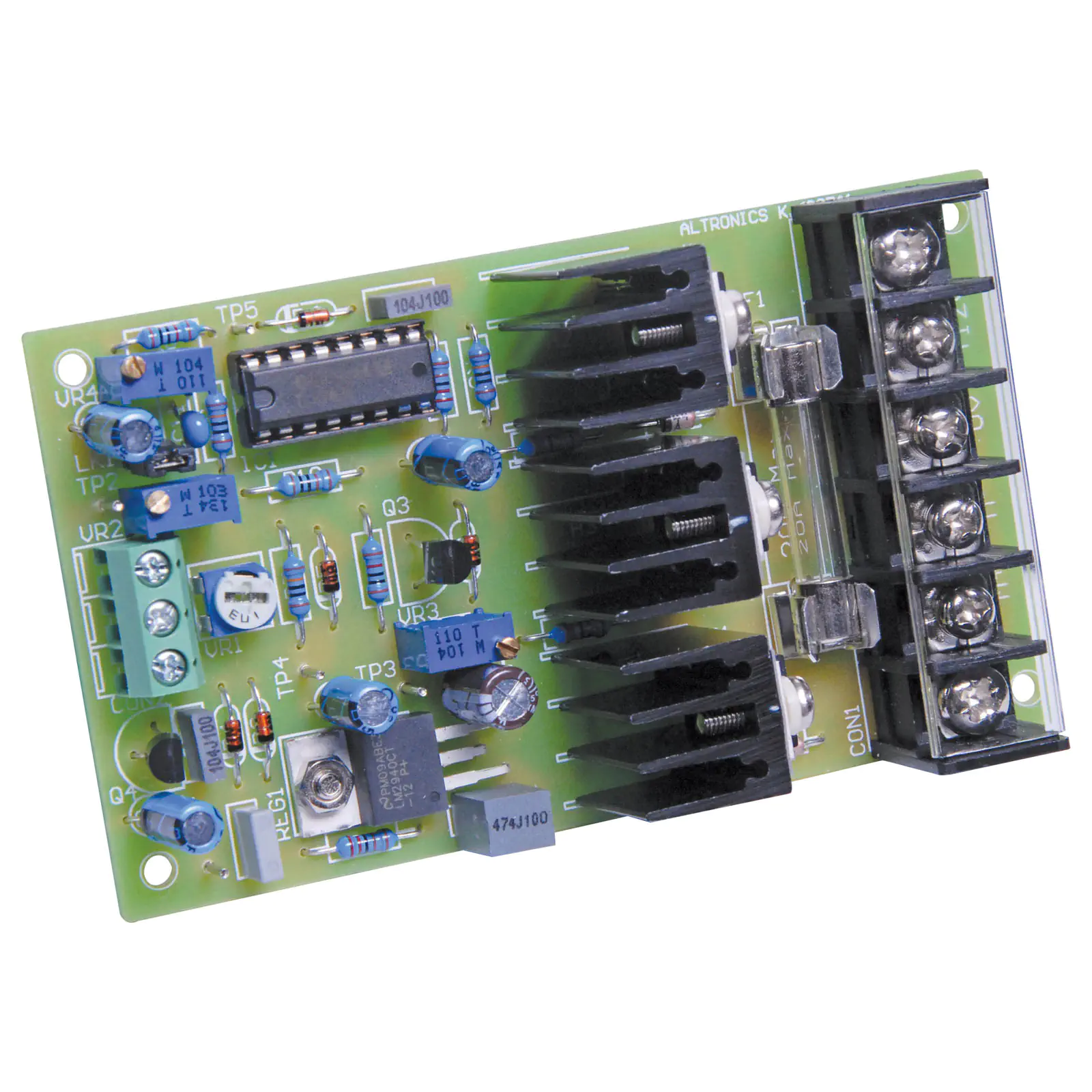

This gutsy little speed controller has a wide range of applications and is simple to build and use. There are no software settings to fiddle with but it does have some really useful features such as low-battery protection, soft start and adjustable pulse frequency. It can run from 12V or 24V batteries at currents of up to 20A. (as seen in Silicon Chip Magazine June ''11).
$46.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $46.14
4+ $41.36
i h

Overview

This gutsy little speed controller has a wide range of applications and is simple to build and use. There are no software settings to fiddle with but it does have some really useful features such as low-battery protection, soft start and adjustable pulse frequency. It can run from 12V or 24V batteries at currents of up to 20A. (as seen in Silicon Chip Magazine June ''11)

Important Note For Kit Buyers:

This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.



NOTE: This kit is only suitable for use with DC motors

Requires 1 x 12/24V SLA battery (sold separately)





Specifications:



Supply Voltage: 12-30VDC

Supply Current: 20A maximum

Output Current: 20A maximum

Standby Current: 20mA

Control Range: 0-100%

Low Voltage Cut-out: typically set for 11.5V (for 12V battery) or 23V (for 24V battery)

Pulse Frequency Adjustment: ∼100Hz to 1.1KHz (129Hz to 1.28Khz measured on prototype)

Soft Start: from 0-100% (or to set speed) over aboout 1s

Mosfet gate rise and fall times: 1.5µs & 1.6µs respectively
