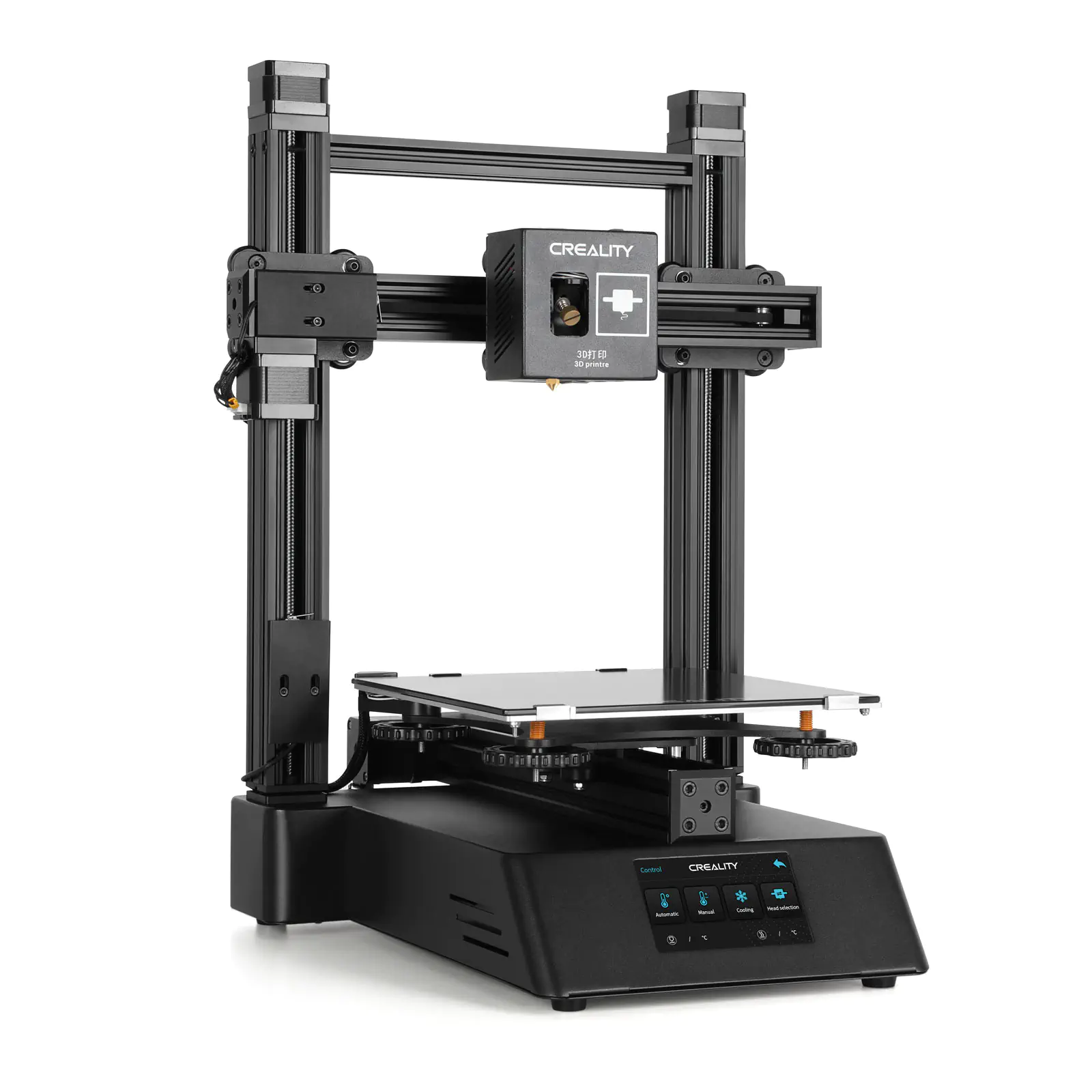

CP-01 3 in 1 Desktop Laser Engraver / CNC / 3D Printer

by: Creality
SKU: K8604
With the Creality CP-01 3 in 1 Desktop Laser Engraver / CNC / 3D Printer you can add 3D printing, Laser Engraving and CNC Cutting to your workbench to produce working prototypes.
Save $272.73 $817.27 $1,090.00

All Prices Shown are (ex GST)
Bulk Pricing
ea
$817.27 $1,090.00
i h

Overview

With the Creality CP-01 you can add 3D printing, Laser Engraving and CNC Cutting to your workbench to produce working prototypes, ‘one-offs’ & finished designs downloadable from the internet. From printing your own gaming pieces to cosplay parts and fixes for broken parts, a 3D printer adds incredible versatility to your workbench. This 3 in 1 machine allows you to work with many different types of filament including; PLA, ABS and TPU. The hotbed heats up to 110° and the nozzle reaches a maximum temperature of 260°.

The 3D printer offers high precision printing producing fine and smooth models without nearly any laminated striation. The CP-01 has the ability to engrave with high precision. Its compatible with laser heads of different power and many kinds of materials including; wood, paper, plastic, leather etc. With a fast rotational speed the CNC Cutter produces models with a high degree of finish and smooth surfaces. Wood, PCB, Paper and Plastic are the materials compatible with the CNC cutting abilities of the machine.





Specifications:



General:

Model: CP - 01

Type: 3D Laser,CNC,DIY

Material (Frames): Aluminium extrusion

Platform board: Aluminum alloy, aluminum Base

Nozzle diameter: 0.4mm

Nozzle temperature: 0-260°

Product forming size: 200 x 200 x 200mm

Layer thickness: 0.1-0.4mm

Memory card offline print: TF card

LCD screen: Yes

Print speed: 10-80mm/s

Platform temperature: Room temperature to 100 degree

Language: English

File format: AMF, BMP, OBJ, STL

Model supporting function: Yes

Voltage: 100V/240V

Working power: Input; 100-240v output; 24v

Host computer software: Cura, Simplify3D

Packing type: unassembled packing

Voltage range: Input 100-240V AC output 24V

Connector type: TF card,USB

Touch screen: 4.3 inches

Gross weight: 10kg

Operating system: Windows XP/Vista/7/10/Mac Linux

Motor: 42 - 40 stepper motor, 42-34 threaded rod motor, step angle 1.8°



3D Printing:

Molding technology: FDM

Molding size: 200 x 200 x 200mm

File format: STL, OBJ, AMF

Slicing software: Cura, Simplify 3D

Supported filament: 1.75mm diameter (PLA, ABS, PVA)

Nozzle diameter: Standard 0.4mm, can also be 0.6mm, 0.8mm, 1.0mm, 1.2mm

Printing precision: ±0.1mm

Printing speed: 10-80mm/s

Hotbed temperature: =100°C

Layer thickness: 0.1mm-0.4mm



CNC Carving/Cutting:

Carving/cutting Size area: 200 x 200mm

Supported materials: Wood, Paper, PCB, Plastic

File format: SVG, BMP, NG, PG, DXF

Spindle speed: 4,800rpm max

Standard cutter Size: HRC55 tungsten steel milling cutter 4F 4*1

Drill chuck clamping range: 0-4mm



Laser Engraving:

Engraving size area: 100 x 190mm

Supported materials: Wood, Paper, Leather, Plastic

File format: SVG, BMP, NG, PG, DXF

Laser power: Less than 0.5W
