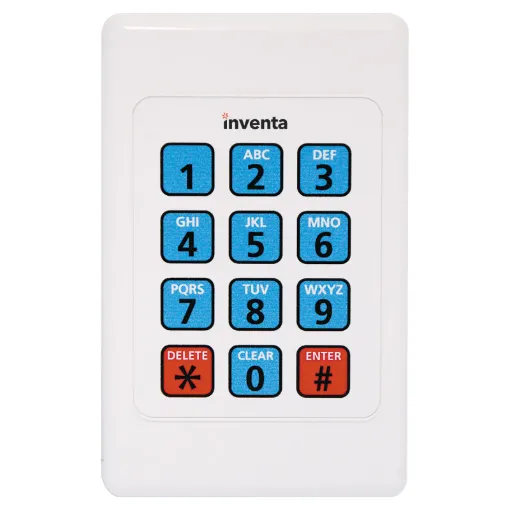

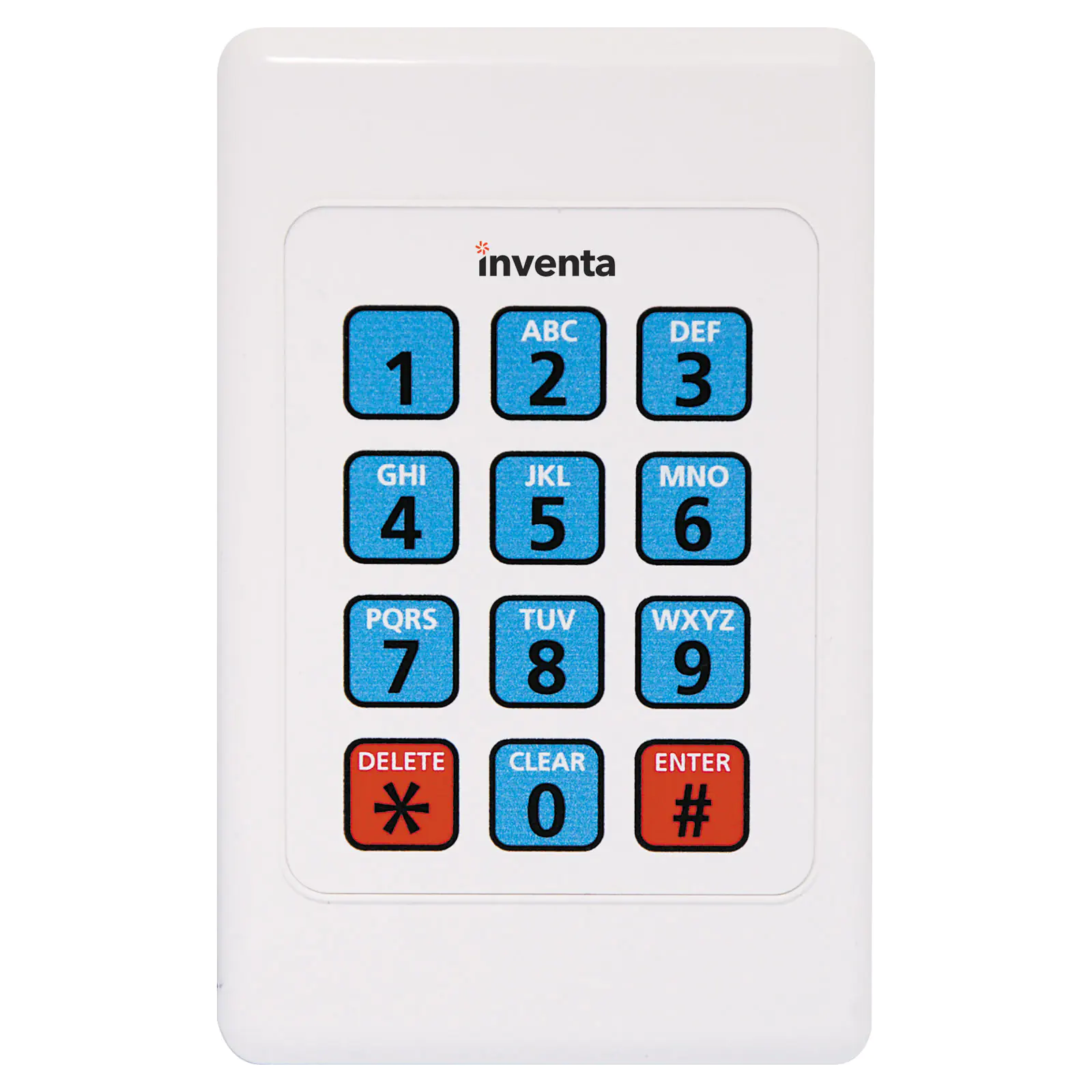

12 Button Shield Maker Plate Kit

by: Inventa
SKU: K9650
Developed in house by Altronics, the Inventa Maker Plate was developed to bring Arduino into the home automation sector by incorporating it with standard Australian electrical wallplates. 12 Button Shield.
$45.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $45.41
2+ $43.59
4+ $41.77
i h

Overview

Developed in house by Altronics, the Inventa Maker Plate was developed to bring Arduino into the home automation sector by incorporating it with standard Australian electrical wallplates. Available in three versions depending on your requirements or budget. K 9650 is an Arduino compatible design which will fit standard shields and has 12 buttons on a lexan membrane which can be assigned to various functions. Please Note: Programming the unit is through a standard FTDI adaptor (Such as Z6212)

Applications: Control heating, cooling, lighting in the home. Trigger garage door motors, pool controls, automatic blinds and locks. Automate reticulation, fans and other devices.

Important Note For Kit Buyers: This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.



Features:

  • Standard Australian electrical wallplates (two facia covers provided)
  • ATMEGA328P microcontroller

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.zip
Gate Lock Example Code
ZIP
.pdf
Gate Lock Wiring Diagram
PDF
.pdf
Instructions
PDF
