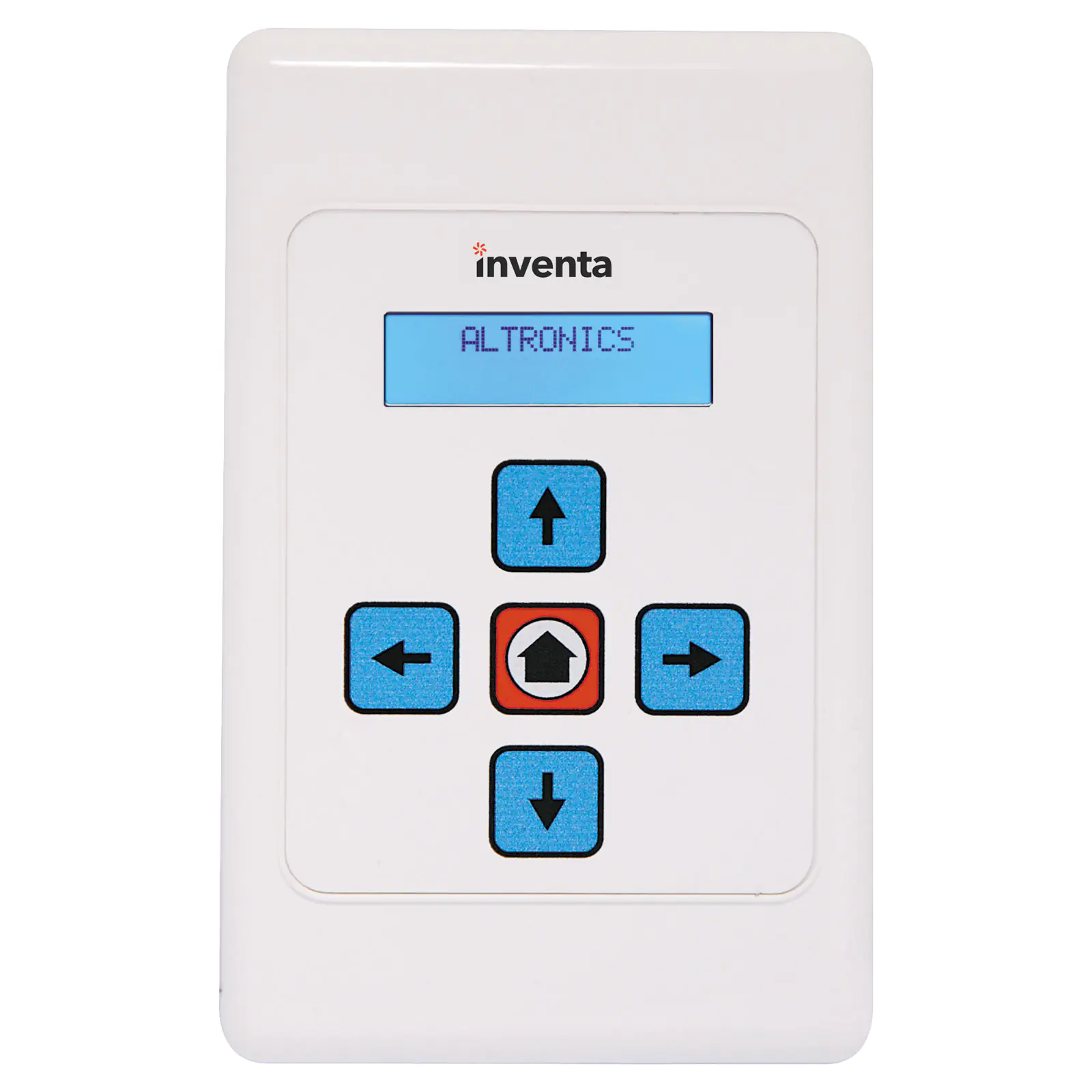

16x2 LCD Shield Maker Plate Kit

by: Inventa
SKU: K9655
Developed in house by Altronics, the Inventa Maker Plate was developed to bring Arduino into the home automation sector by incorporating it with standard Australian electrical wallplates. 16x2 LCD Shield.
$72.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $72.68
2+ $66.32
i h

Overview

Developed in house by Altronics, the Inventa Maker Plate was developed to bring Arduino into the home automation sector by incorporating it with standard Australian electrical wallplates. Available in three versions depending on your requirements or budget. K 9655 is an Arduino compatible design which will fit standard shields and has a 16x2 LCD, plus an array of selector buttons on a lexan membrane. Please Note: Programming the unit is through a standard FTDI adaptor (Such as Z6212)

Applications:
Control heating, cooling, lighting in the home. Trigger garage door motors, pool controls, automatic blinds and locks. Automate reticulation, fans and other devices.

Important Note For Kit Buyers: This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.



Features:

  • Standard Australian electrical wallplates (two facia covers provided)
  • ATMEGA328P microcontroller

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.zip
Sample Code
ZIP
.pdf
Instructions
PDF
Accessories
This is the newest revision of the FTDI Basic. We now use a SMD 6-pin header on the bottom, which makes it smaller and more compact. Functionality has remained the same. This is a basic breakout board for the FTDI FT232RL USB to serial IC. The pinout o
Z6212

FTDI Basic Breakout 5V

This is the newest revision of the FTDI Basic. We now use a SMD 6-pin header on the bottom, which makes it smaller and more compact. Functionality has remained the same. This is a basic breakout board for the FTDI FT232RL USB to serial IC. The pinout of this board matches the FTDI cable to work with official Arduino and cloned 5V Arduino boards. It can also be used for general serial applications.
$20.86
