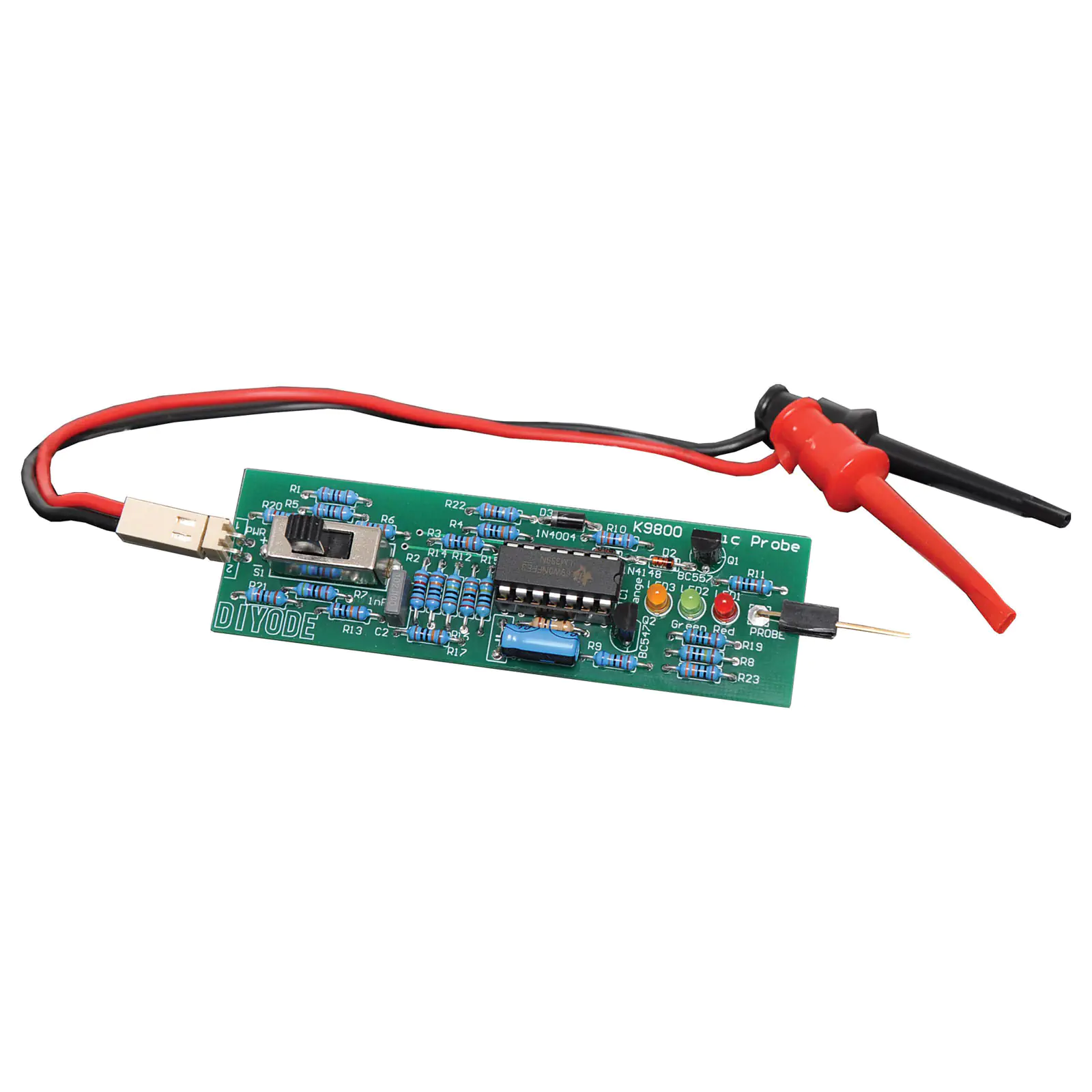

DIYODE 3 State Logic Probe Kit

SKU: K9800
This 3 state logic probe design includes power connection leads and utilises the LM339N chip to provide logic states when checking circuits, output pins on boards etc. (as seen in DIYODE magazine October 2017).
$15.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $15.68
4+ $12.50
i h

Overview

This new 3 state logic probe design by DIYODE magazine includes power connection leads and utilises the LM339N chip to provide logic states when checking TTL or CMOS circuits, output pins on boards etc. A simple logic probe can be an excellent tool for diagnosing 3.3V or 5V circuits in your projects. It will indicate low and high logic states, plus a shift between states. The kit is provided without a case, however a design for one is provided by DIYODE magazine, which you can download at the link below. This can be 3D printed by a third part provider or using your own 3D printer (as seen in DIYODE magazine October 2017).

Important Note For Kit Buyers:

This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
