4 Way MATV Booster Amplifier / Splitter F Type

by: Kingray
SKU: L2051

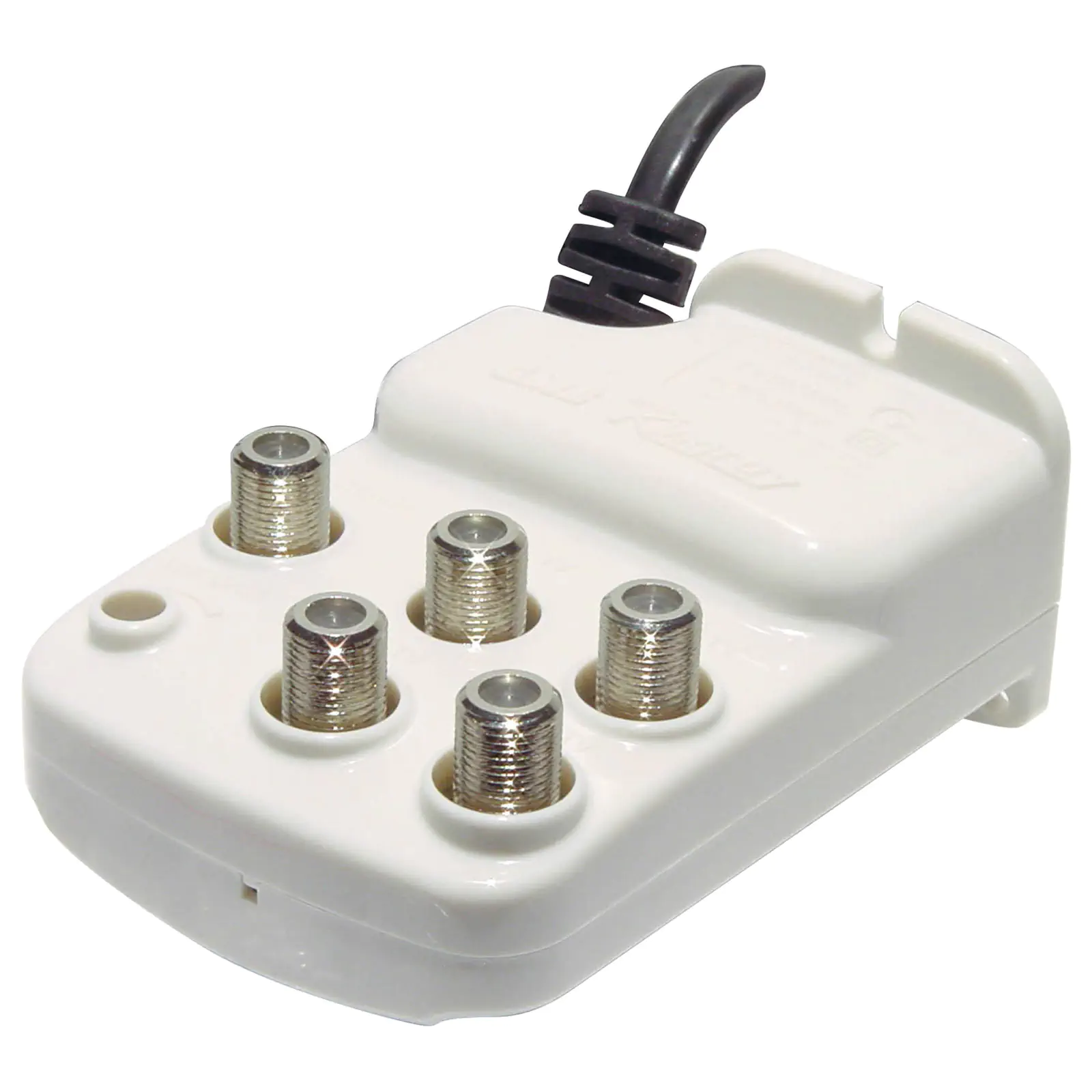

These amplifiers are ideal for use at home where you want to operate more than one TV. Simple installation - just run a single cable from each outlet back to the amplifier. Boosts antenna signal by approximately 10-12dB which ensures a strong signal.
$125.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $125.45
2+ $119.32
4+ $117.23
i h

Overview

These amplifiers are ideal for use at home where you want to operate more than one TV. Installation is simple. Run a single cable from each outlet back to the amplifier. Boosts antenna signal by approximately 10-12dB which ensures a strong signal for improved TV reception. Supplied with an F-type male to PAL female adaptor.

In the box:
4 Way MATV Booster Amplifier / Splitter F Type
F to PAL Adapters x 5
Installation Manual



Features:

  • Frequency Range 44-470 MHz & 470-860 MHz
  • 16dB Maximum Gain
  • 8dB VHF Gain Control
  • Single Input
  • Four Outputs
  • F to Belling Lee (PAL) Adapters Included
  • High Output Figure of 100dB IMR3 (DIN45004B)
  • <4dB Noise Figure
  • Connectors: F-Type
  • Mains Powered 230-240V AC





Specifications:



VHF:

Frequency Range: 44-470

Maximum Gain (dB): 12-14

Inputs : 1

Noise Figure (dB): <3.5

Gain Control (dB): N/A

Mains: 230 -240V AC

Output Figure DIN45004B (uV): 100



UHF:

Frequency Range: 470-860

Maximum Gain (dB): 16

Inputs : 1

Noise Figure (dB): <3.5

Gain Control (dB): N/A

Mains: 230 -240V AC

Output Figure DIN45004B (uV): 100

Details

Products specifications

Warranty 3 Years
Audio Visual
Type Masthead Amplifiers
