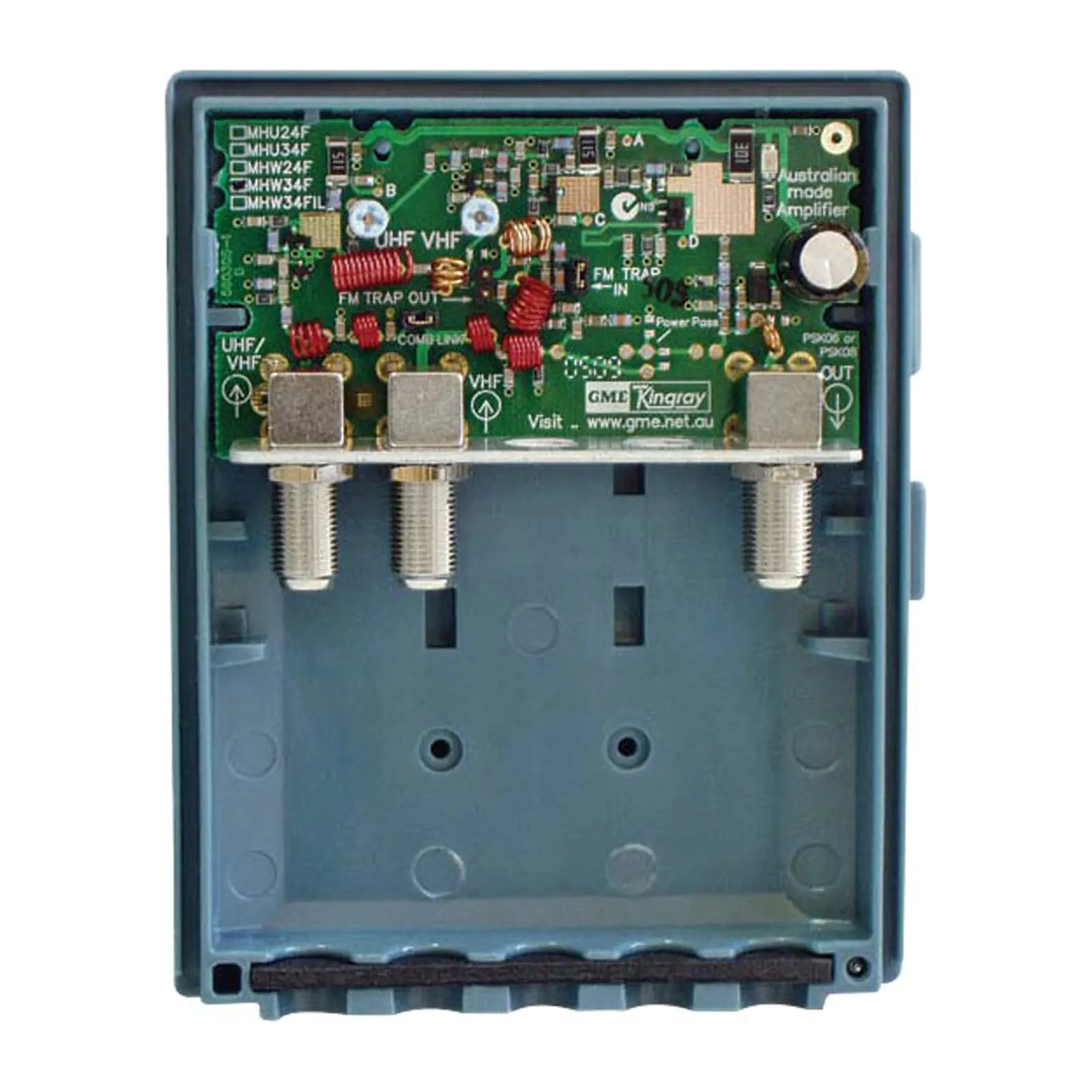

Masthead Antenna Amplifier UHF/VHF F Type

Name: Masthead Antenna Amplifier UHF/VHF F Type
SKU: L2062A
Price: 83.18 AUD
Availability: InStock

by: Kingray

SKU: L2062A

As the name suggests, this amplifier is mounted on the antenna mast (as close to the antenna as possible) to avoid any signal loss from the connecting cable. It has inputs for a separate VHF or UHF antenna, or a combined input for both.

$83.18

All Prices Shown are (ex GST)

Bulk Pricing

ea	$83.18
2+	$80.45
4+	$76.59

i h

Overview
Details
Warranty
Downloads

Overview

The MHW35F is a VHF/UHF TV masthead amplifier with the capability of amplify signals either from combined or separate VHF and UHF antennas. The Kingray Masthead range includes both wideband and VHF or UHF only models & with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out. In addition to the 4G/LTE filtering, most wideband models include low band filtering to eliminate all services below 174 MHz. This amplifier also has the ability to allow FM radio signals to be passed through.

The masthead is powered remotely via a Kingray PSK06 or PSK08 series power supply (sold separately, see accessories below).

Package Contents:
- Masthead Antenna Amplifier
- Cable Tie
- Installation Manual

Features:

Frequency Range 174-230 MHz & 520-694 MHz
35dB UHF Maximum Gain
26dB VHF Maximum Gain
15dB Gain Control for UHF
16-12dB Tilt Control for VHF
Separate VHF & UHF Inputs or Combined Input
FM Radio 88-108 MHz Pass Through Selectable
4G/LTE Filtering
Weatherproof Housing
High Output Figure of 108dB IMR3 (DIN45004B)
Connectors: F-Type
Power Consumption: 80mA
Suitable Power Supply: PSK06 Series or PSK08 Series

Specifications:

Frequency range: VHF: 174–230 MHz, UHF: 520–694 MHz

Max gain: VHF: 22–26 dB, UHF: 35 dB

Output figure: 108 dB, DIN45004B @ (-60 dB IMR)

Noise figure: VHF: < 3 dB, UHF: < 2.5 dB

Gain control range: VHF: Tilt control 16 – 12dB, UHF: 15dB

Supply voltage: PSK08/F, KPS08/F, PSK06/F, KPS06/F

Pager filter: -25 dB @ 148 MHz and 158 MHz

FM filter: -25 dB @ 88–108 MHz

Band 1 filter: -30 dB @ 44 MHz
