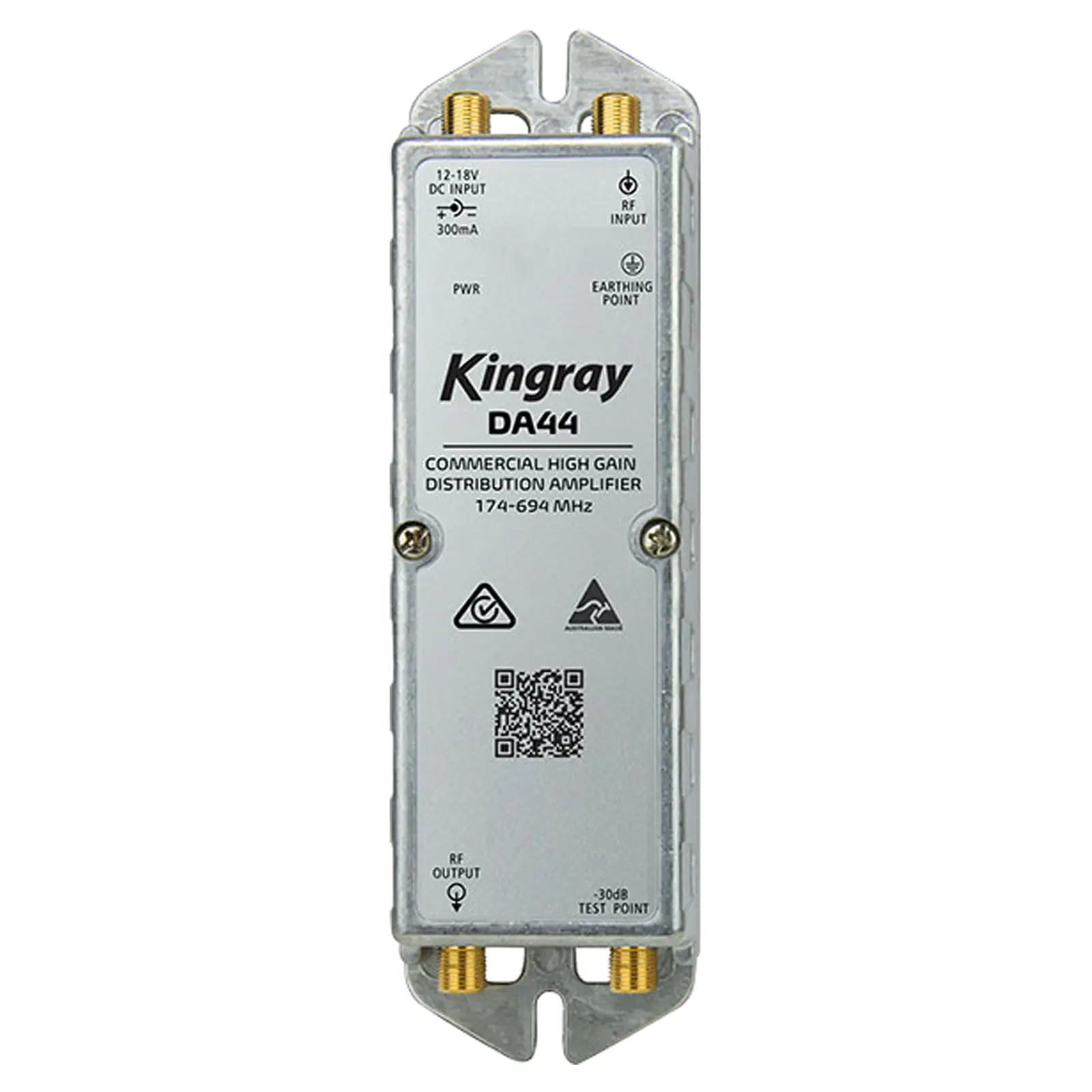

DA44 TV Signal Distribution Amplifier

by: Kingray
SKU: LX2081A
Kingray's DA44 distribution amplifier has been designed to suit the digital television environment of today, and well into the future.
$315.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $315.23
2+ $293.86
4+ $263.41
i h

Overview

Kingray's DA44 distribution amplifier has been designed to suit the digital television environment of today, and well into the future. The technology used is hybrid bipolar and GaAs, which allows for a greater output capacity, whilst having a lower noise figure. The amplifiers contain mid-stage gain controls, a number of flexible powering options and are built in a fully shielded die-cast housing.

TThe DA44 is an F Type distribution amplifier designed for a separate VHF or UHF antenna or a combined antenna at the input. The DA44 can be remotely powered to and through the input.

Please Note: This amplifier does not come with a power supply. The recommended power supplies are PSK18M or PSK182F. See related below.

In the box:
DA44 Amplifier
Instruction Manual
Mounting Screws



Features:

  • Frequency Range 174~694 MHz (Channels 6 to 51)
  • 44dB Maximum Gain
  • 10dB Mid-Stage Gain Control
  • Single RF Input
  • Local or Remote Powering Options
  • F-Type Connector for Power Input
  • Adjustable Slope Control of 0dB to 10dB
  • -30dB Test Point
  • Ability to send power out via the RF Input
  • High Output Figure: 118dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Power Consumption: 300mA
  • Operating Voltage: 18V DC
  • Operating Temperature: -10ºC to 50ºC





Specifications:



Frequency: 174-694MHz

Max Gain: 44dB

Inputs: 1

Noise Figure: <6dB

Gain Adjustment: Up to -10dB

Power Supply: PSK18M or PSK182F (not included)

Current: 300mA

Test Point Output: -30dB

Output Figure: 118dBµV
