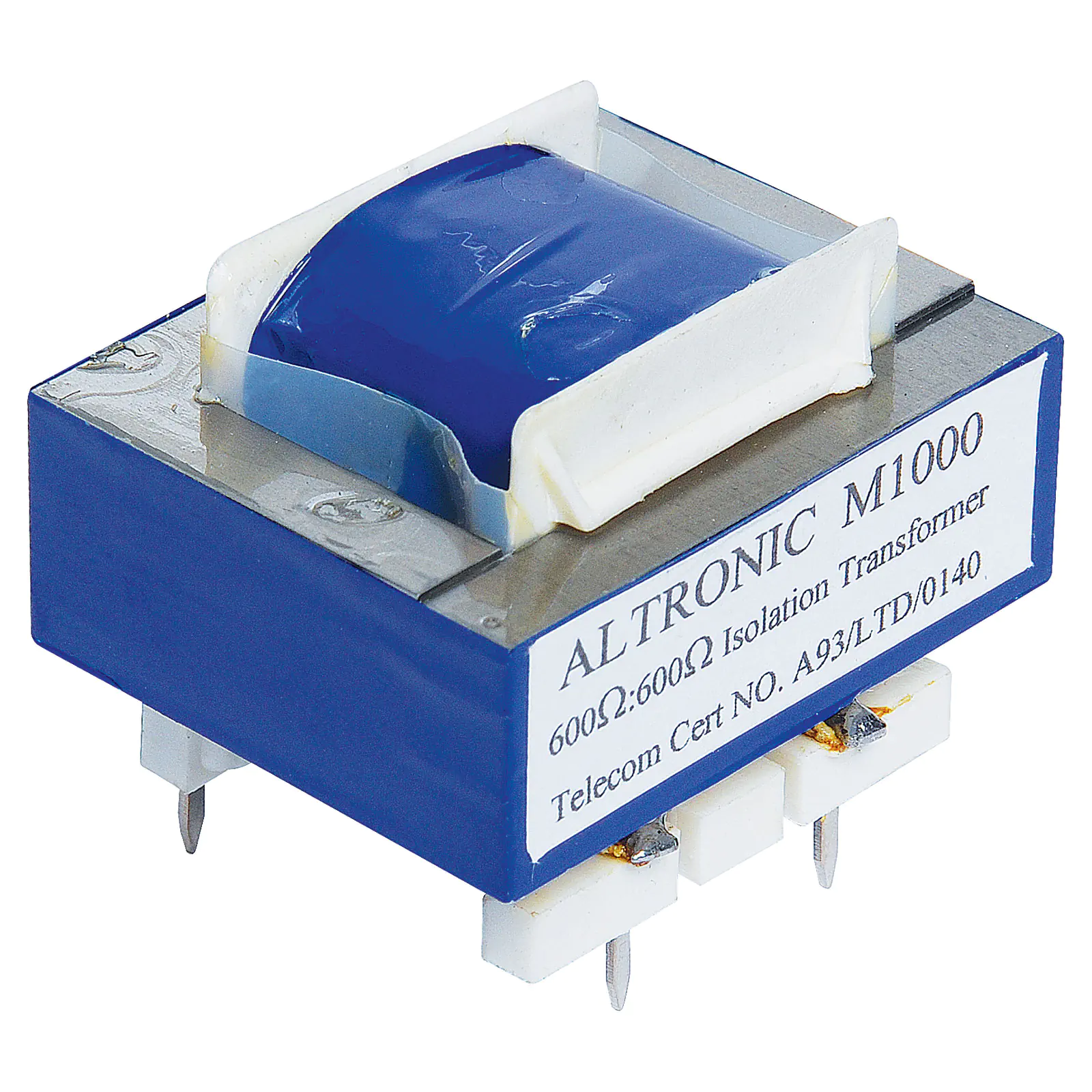

600 Ohm / 600 Ohm Telephone Isolation Transformer

SKU: M1000
Impedance: 600 Ohm line, 600 Ohm equip Turns Ratio: 1:1 Max Level: 0dBm @ 300Hz Insertion Loss: 1dB max @ 0dBm Frequency Response: 300Hz - 10kHz Return Loss: >15dB, 300Hz - 5kHz Max Unbalanced DC: 60mA Proof Test: 3.5kV RMS Dimension: 41L x 30H x 33W Weight: 153 gms PCB hole size: 1.5mm
$12.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $12.68
4+ $11.59
10+ $10.64
i h

Overview

Specifications:



Impedance: 600 Ohm line, 600 Ohm equip

Turns Ratio: 1:1

Max Level: 0dBm @ 300Hz

Insertion Loss: 1dB max @ 0dBm

Frequency Response: 300Hz - 10kHz

Return Loss: >15dB, 300Hz - 5kHz

Max Unbalanced DC: 60mA

Proof Test: 3.5kV RMS

Dimension: 41L x 30H x 33W

Weight: 153 gms

PCB hole size: 1.5mm

Details

Products specifications

Warranty 12 Months
Transformers
Type Comms Transformers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Dimensions
PDF
