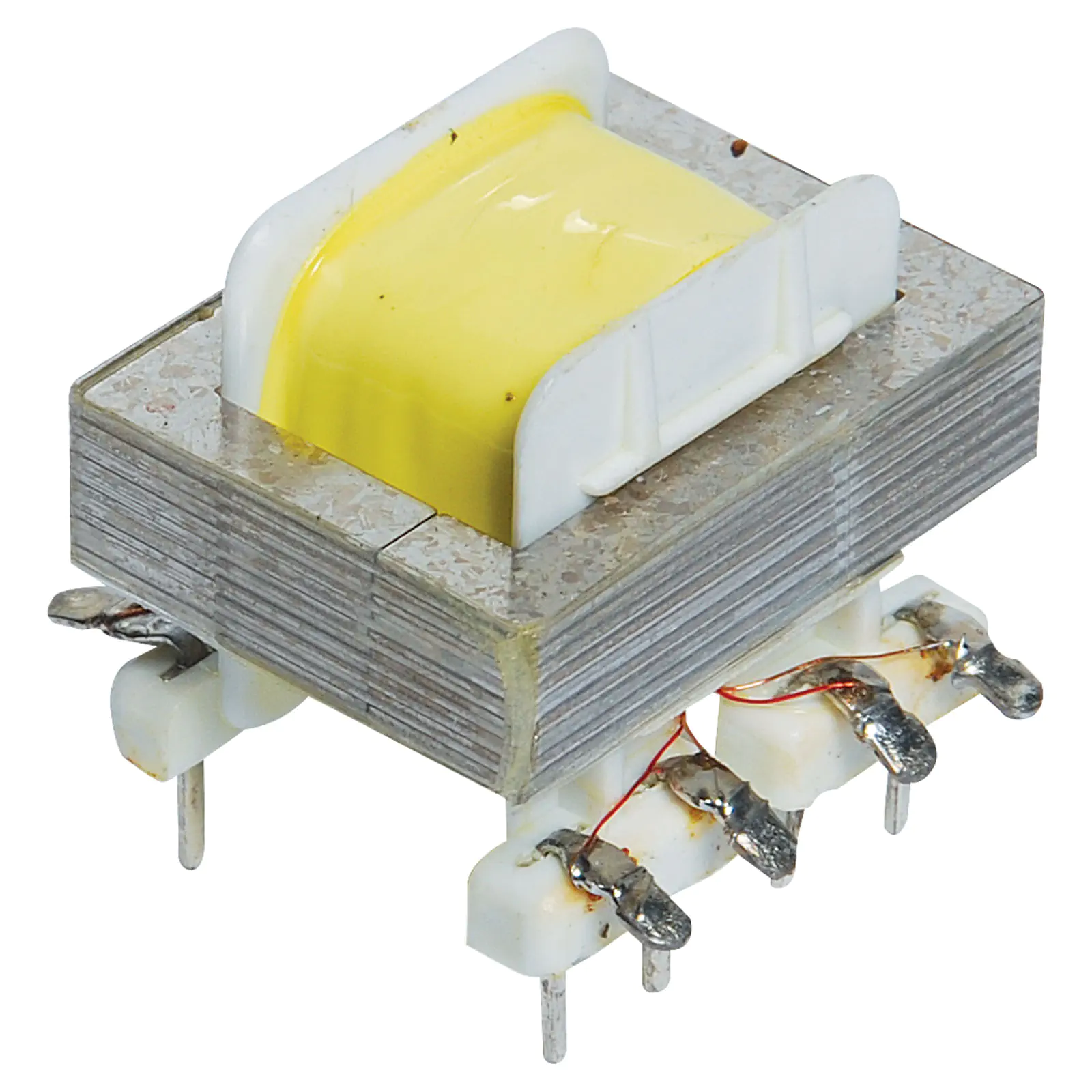

600 Ohm / 600 Ohm Mini Telephone Isolation Transformer

SKU: M1005
Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip. Turns Ratio: 1:1 Max Level: +20dBm @ 200Hz Insertion Loss: 1dB max @ 0dBm Frequency Response: 200Hz - 3KHz Return Loss: >15dB, 200Hz - 3kHz Max Unbalanced DC: 5mA Proof Test: 3.5kV RMS Dimension: 26L x 21H x 19W Weight: 25 gms PCB hole size: 1.3mm
$14.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $14.77
4+ $13.41
10+ $12.27
i h

Overview

Specifications:



Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip.

Turns Ratio: 1:1

Max Level: +20dBm @ 200Hz

Insertion Loss: 1dB max @ 0dBm

Frequency Response: 200Hz - 3KHz

Return Loss: >15dB, 200Hz - 3kHz

Max Unbalanced DC: 5mA

Proof Test: 3.5kV RMS

Dimension: 26L x 21H x 19W

Weight: 25 gms

PCB hole size: 1.3mm

Details

Products specifications

Warranty 12 Months
Transformers
Type Comms Transformers
