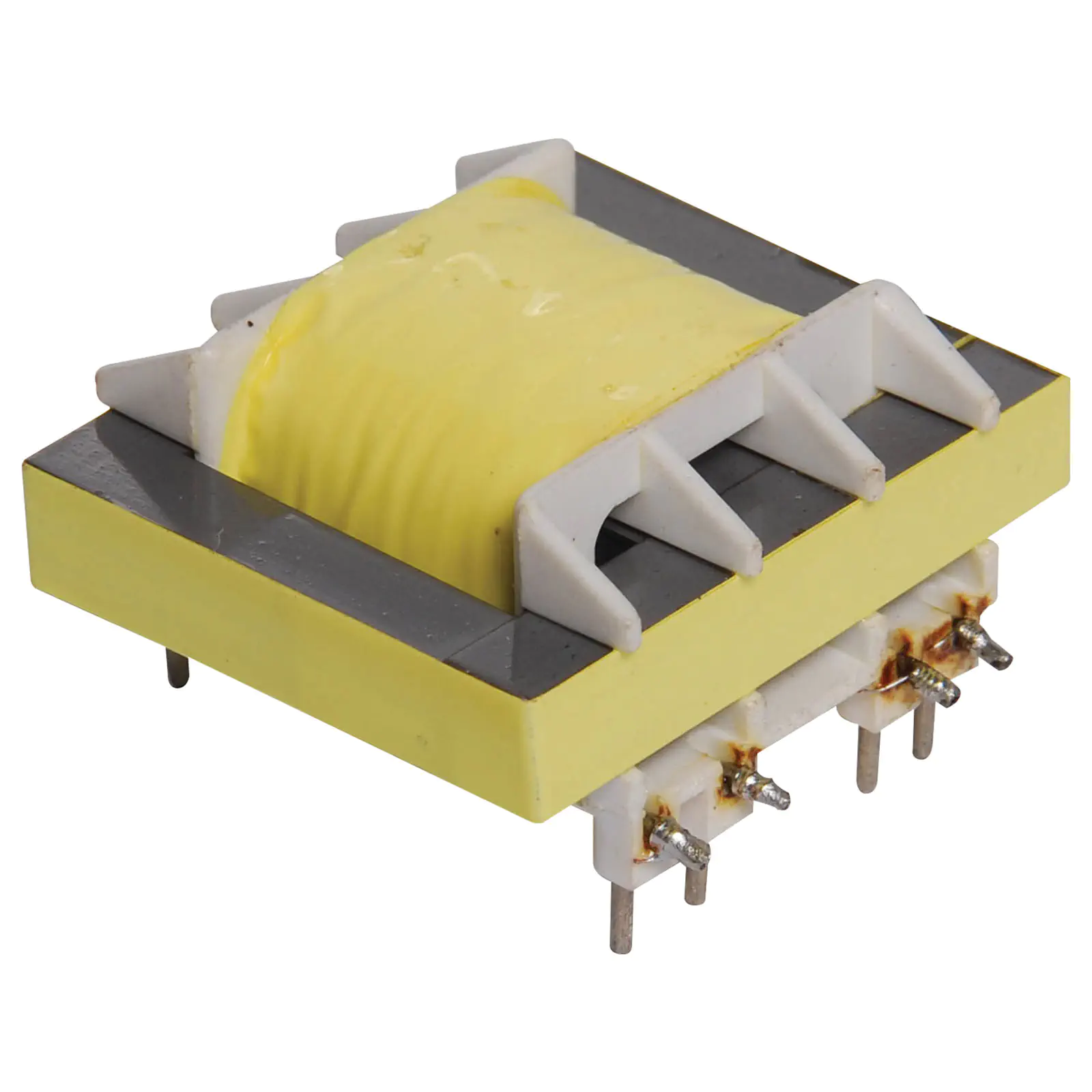

600 Ohm / 600 Ohm Low Prof Telephone Isolation Transformer

SKU: M1010
Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip. Turns Ratio: 1:1 Max Level: +20dBm @ 200Hz Insertion Loss: 1.8dB max @ 0dBm Frequency Response: 300Hz - 3kHz Return Loss: >15dB, 300Hz - 3kHz Max Unbalanced DC: 80mA Proof Test: 3.5kV RMS Dimension: 35L x 17H x 29W Weight: 50 gms PCB hole size: 1.2mm
$12.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $12.68
4+ $11.59
10+ $10.64
i h

Overview

Specifications:



Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip.

Turns Ratio: 1:1

Max Level: +20dBm @ 200Hz

Insertion Loss: 1.8dB max @ 0dBm

Frequency Response: 300Hz - 3kHz

Return Loss: >15dB, 300Hz - 3kHz

Max Unbalanced DC: 80mA

Proof Test: 3.5kV RMS

Dimension: 35L x 17H x 29W

Weight: 50 gms

PCB hole size: 1.2mm

Details

Products specifications

Warranty 12 Months
Transformers
Type Comms Transformers
