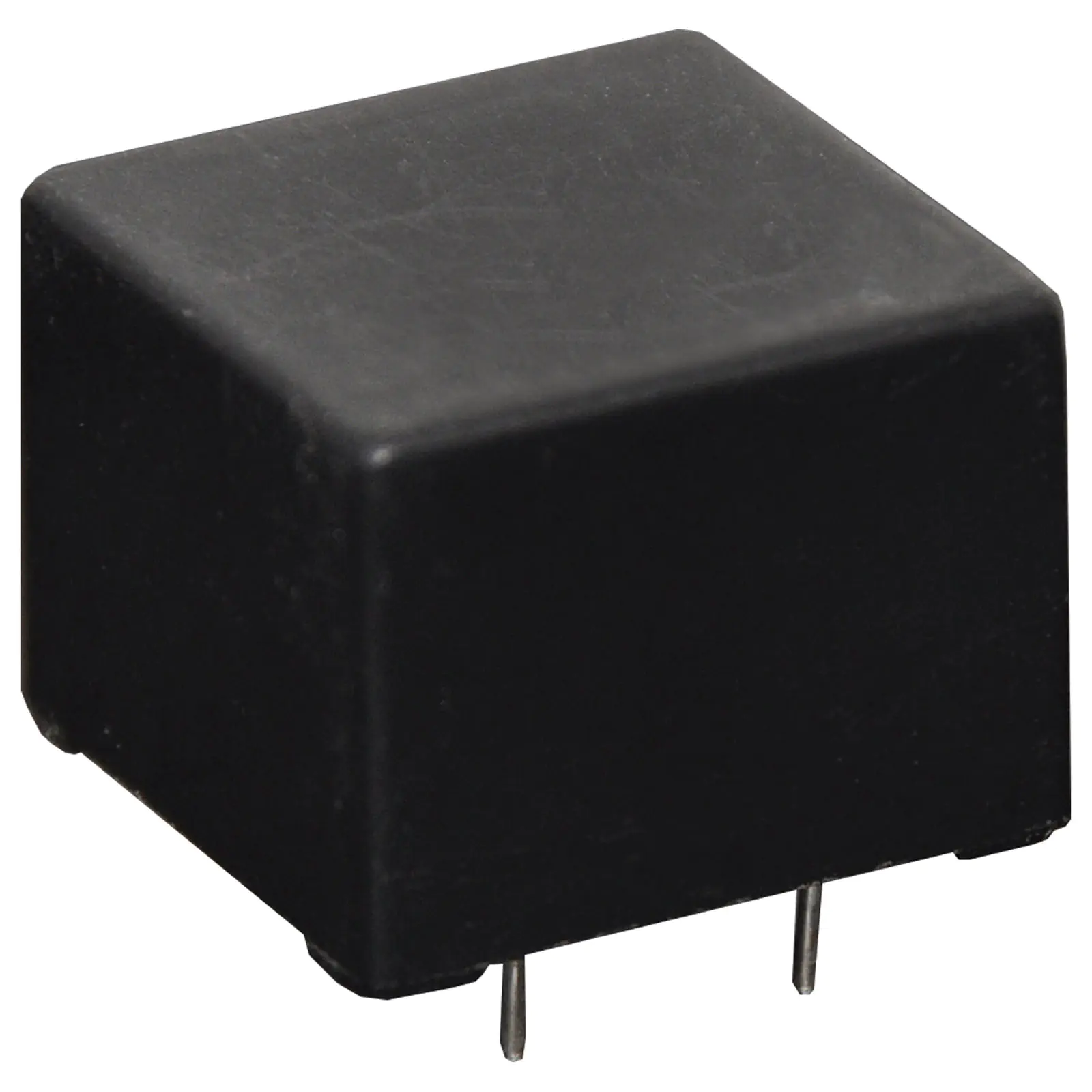

600 Ohm / 600 Ohm Potted Telephone Isolation Transformer

SKU: M1015
Impedance: 600 Ohm line matching Turns Ratio: 1:1 Insertion Loss: 4.7dB max @ 2kHz Frequency Response: 200Hz - 4kHz Return Loss: >15dB @ 200Hz - 4kHz Proof Test: 5.5kV RMS Max Unbalanced DC: 100µA Dimension: 18L x 14H x 18W Weight: 13 gms PCB hole size: 0.7mm
$19.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $19.55
4+ $17.50
10+ $15.68
i h

Overview

Specifications:



Impedance: 600 Ohm line matching

Turns Ratio: 1:1

Insertion Loss: 4.7dB max @ 2kHz

Frequency Response: 200Hz - 4kHz

Return Loss: >15dB @ 200Hz - 4kHz

Proof Test: 5.5kV RMS

Max Unbalanced DC: 100µA

Dimension: 18L x 14H x 18W

Weight: 13 gms

PCB hole size: 0.7mm

Details

Products specifications

Warranty 12 Months
Transformers
Type Comms Transformers
