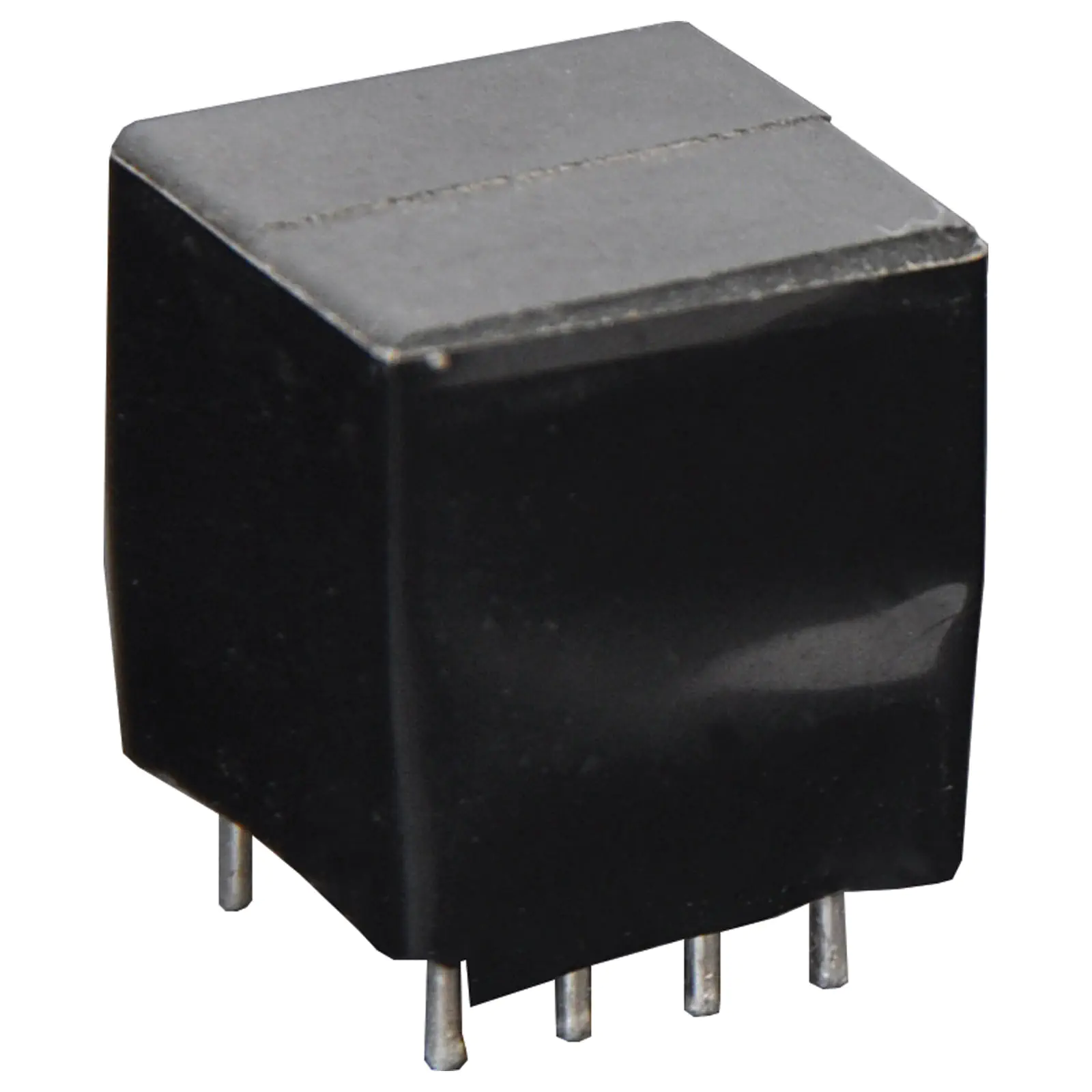

600 Ohm / 600 Ohm Mini Telephone Isolation Transformer

SKU: M1020
Impedance: 600 Ohm line, 600 Ohm equip. Turns Ratio: 1:1 Max Level: 0dBm Insertion Loss: 1.4dB max @ 1kHz Return Loss: >16dB @ 300Hz - 3.5kHz Proof Test: 3.0kV AC 1 minute Dimension: 12L x 11H x 11W Weight: 5 gms PCB hole size: 0.7mm
$19.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $19.55
4+ $17.50
10+ $15.68
i h

Overview

Specifications:



Impedance: 600 Ohm line, 600 Ohm equip.

Turns Ratio: 1:1

Max Level: 0dBm

Insertion Loss: 1.4dB max @ 1kHz

Return Loss: >16dB @ 300Hz - 3.5kHz

Proof Test: 3.0kV AC 1 minute

Dimension: 12L x 11H x 11W

Weight: 5 gms

PCB hole size: 0.7mm

Details

Products specifications

Warranty 12 Months
