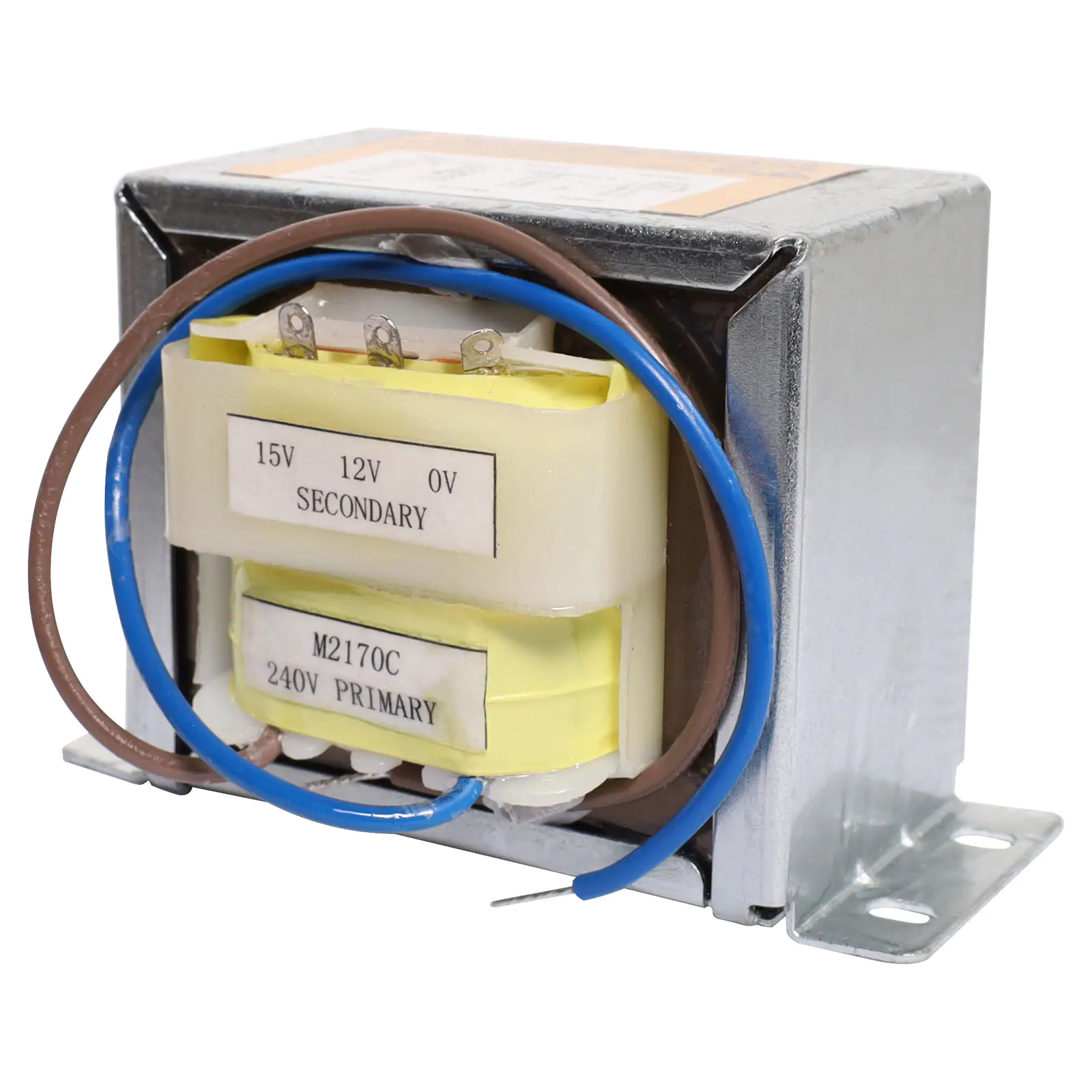

12-30V / 240V 100VA EI Core Transformer

by: Powertran
SKU: M2170C
Powertran EI-Core 240V AC mains transformer with 6A dual multi tapped secondary configuration. Two sets of 0V, 12V and 15V secondaries are available at a maximum current of 6A (max current when secondaries connected in parallel) . Primary is fitted with 200mm flyleads. Secondary taps have solder tags. Fully electrical authority approved for AS/NZS
$47.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $47.23
4+ $42.50
10+ $37.77
i h

Overview

Powertran EI-Core 240V AC mains transformer with 6A dual multi tapped secondary configuration. Two sets of 0V, 12V and 15V secondaries are available at a maximum current of 6A (max current when secondaries connected in parallel). Primary is fitted with 200mm fly leads. Secondary taps have solder tags. Manufactured to conform to AS/NZS 61558.2.6.

Note: Must be used with a standard 500mA external fuse. All currents listed are AC.





Specifications:



Primary Voltage: 240V AC

Total VA Rating: 100VA

Insulation: Class E (120°C)

Magnetising Current: <85mA

Temperature Rise: <70°C

Regulation: ~14%

Recommended primary AC Fuse: 500mA

Weight: ~1.6kg

Primary connection: 200mm fly leads

Secondary connection: Solder tags

AS/NZS 61558.2.6 approval: Q042028

AS3108 approval: CS/813/Q

Details

Products specifications

Warranty 12 Months
Transformers
Type Chassis Mount
