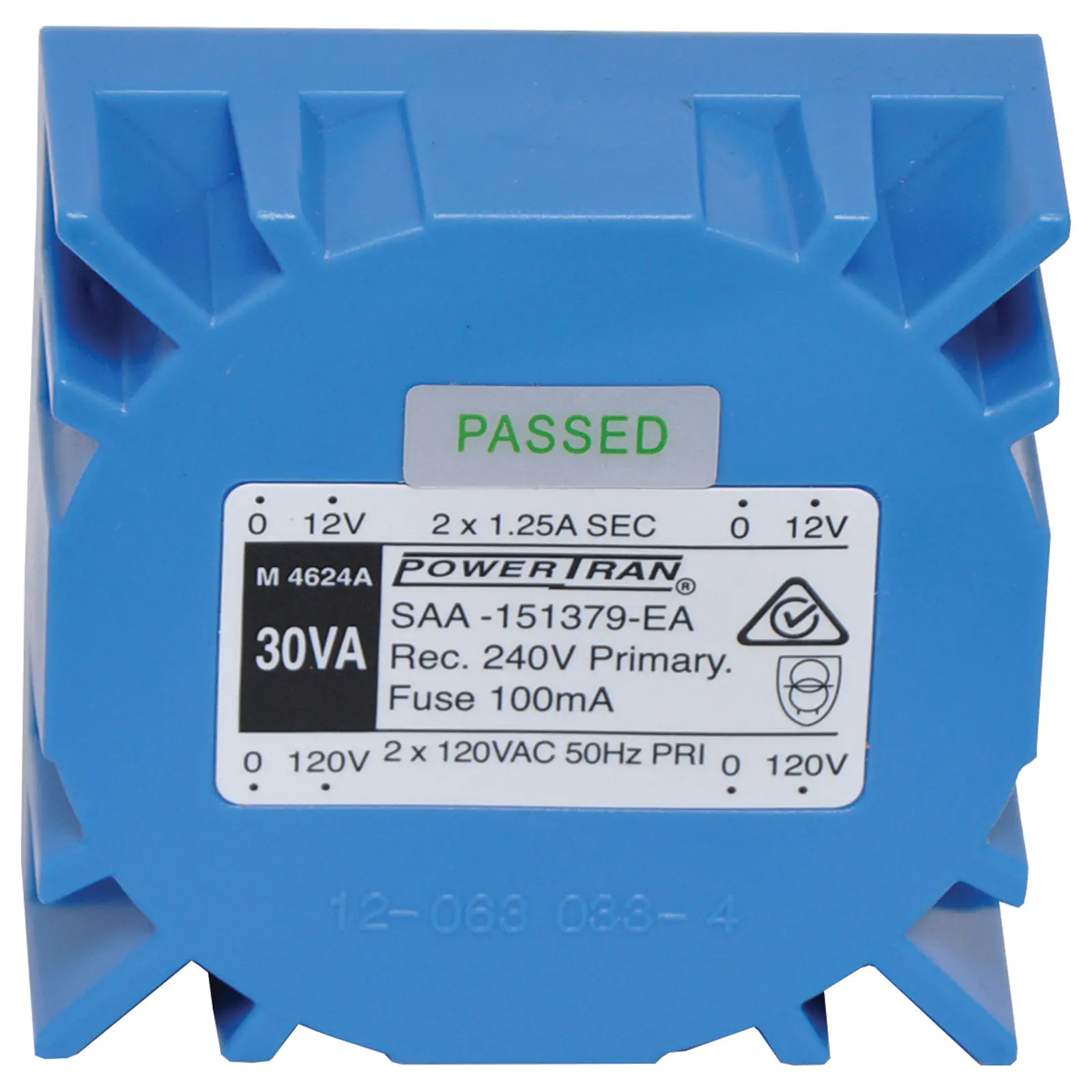

12 + 12 PCB 30VA Toroidal Transformer

by: Powertran
SKU: M4624A
Toroidal transformers provide a higher output compared to traditional E-I transformers of a similar physical size. They have substantially reduced radiated hum and electrical noise, generate less heat and have much better regulation.
$72.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $72.68
4+ $65.41
10+ $58.14
i h

Overview

Toroidal transformers provide a higher output compared to traditional E-I transformers of a similar physical size. They have substantially reduced radiated hum and electrical noise, generate less heat and have much better regulation making them ideal for high performance, low noise circuits.

The transformer is “potted” in an epoxy compound within a plastic housing. Configured with 2 x 120V primaries and 2 identical secondaries which can be wired in either series or parallel. Being PCB mount reduces assembly time as the transformer simply solders to the PCB. For extra stability and mechanical reliability the transformer can be secured to the PCB with a self tapping screw.





Specifications:



Primary voltage: 2 x 120V AC

Total VA rating: 30VA

Insulation: Class B (130°C)

Magnetising current: <30mA

Temperature rise: <85°C

External AC fuse (required): 250mA

Thermal Fuse: 84°C

Regulation: ~ 16%

Weight: ~ 450g

PCB hole size: 2mm

Approval: SAA151379EA

Details

Products specifications

Warranty 12 Months
Transformers
Type PCB Mount
