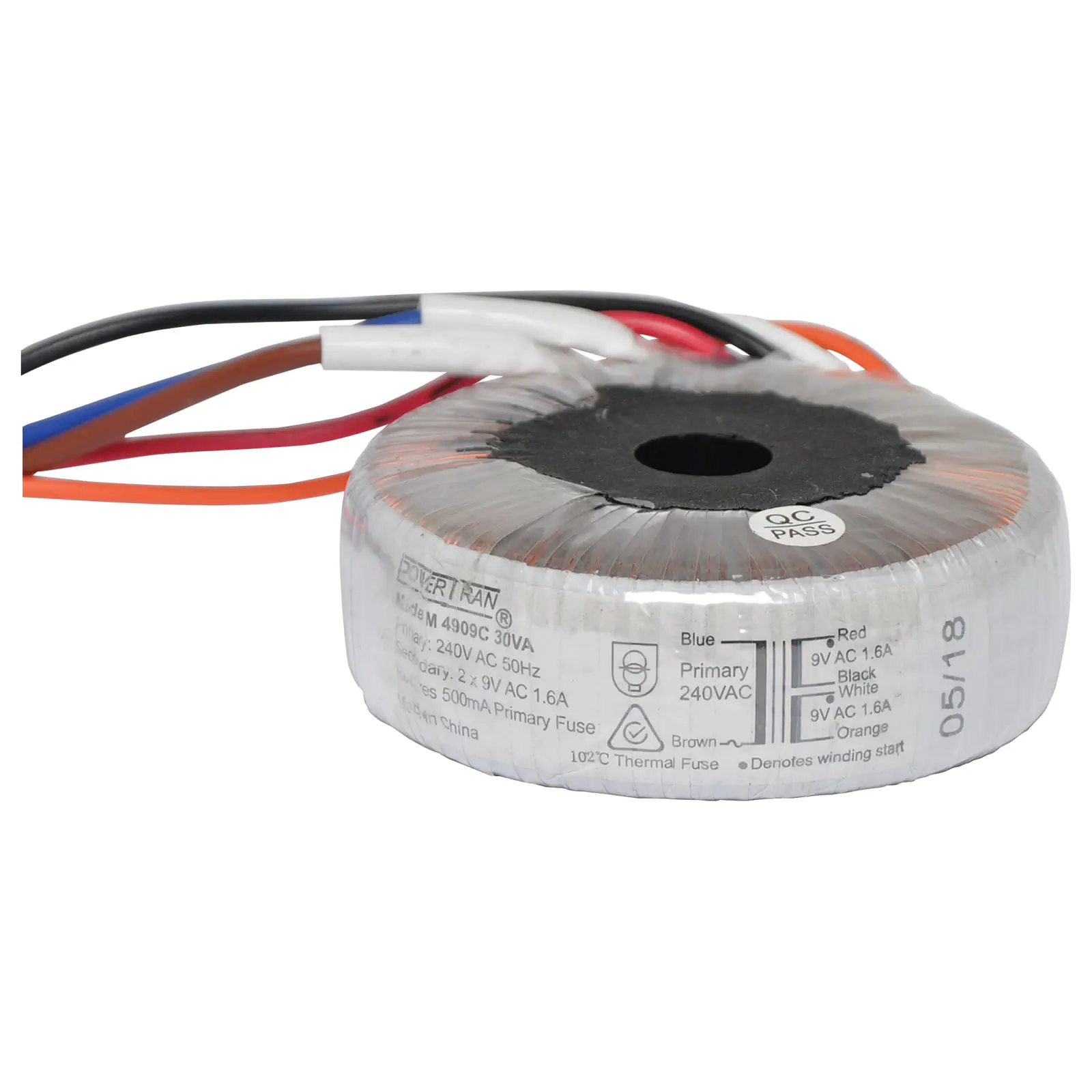

240/9+9 30VA Toroidal Transformer

by: Powertran
SKU: M4909C
Low profile design suitable for use inside our 1RU 19"rack enclosures. Potted epoxy centre core for easy mounting.
$49.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $49.95
2+ $45.00
4+ $41.77
i h

Overview

These low profile 30VA transformers will fit inside our 1 Unit 19" rack cases. Toroidal transformers are becoming increasingly popular due to their improved magnetic properties. They can also be made to a lower profile than a standard solenoid core transformer. This allows the equipment to conform to a lower rack unit height i.e. 1RU, 2RU, 3RU.

The advantage of the toroidal (donut) shape is that, due to its symmetry, the amount of magnetic flux that escapes outside the core (leakage flux) is minimised. Therefore, the electromagnetic interference (EMI) that is radiated to nearby circuits or equipment is less. EMI is of increasing importance in modern low power, high frequency electronics.

The entire range has been tested and approved to the Australian standard AS/NZS 61558.2.6. This standard is equivalent to the European standard EN61558.2.6 making the transformers suitable for the European market (where 240V is used).

Manufacturers please note, we recommend that a sample is obtained to confirm suitability

Included Mounting Hardware:

Rubber Washer: Φ6.5 x 70 x 1.5mm - 1PCS
Screw: M6X35mm - 1PCS
Hex Nut: M6 - 1PCS
Washer: M6 - 1PCS
Lock Washer: M6 - 1PCS





Specifications:



Length: 210mm

Terminal: 10mm

Primary Lead No: 1-2

Colour: Brown, Blue

Rating: UL1672 AWG#18,105°C, VW-1, 300V, Double insulation

Secondary Lead No: 3-4

Colour: Red, Black

Secondary Lead No: 5-6

Colour: WHI-ORG

Rating: UL1015 AWG#20, 105°C, VW-1, 600V, Single insulation

Unloaded Voltage: 0-10.08V (V±5% regulation)

Loading Voltage: 0-9.0V

Rated Current (A): 1.6A

Tolerance: ± 2%

Dimensions (OD x ID x H): 76 x 21 x 30mm



Features:

  • Supplied with mounting hardware.
  • Low profile design is suitable for use inside our 1RU 19” rack enclosures.
  • 30VA series models have potted epoxy centre core for easy mounting.
  • Lower electrically induced noise demanded by compact equipment.
