These 50VA transformers will fit inside our 1 Unit 19" rack cases

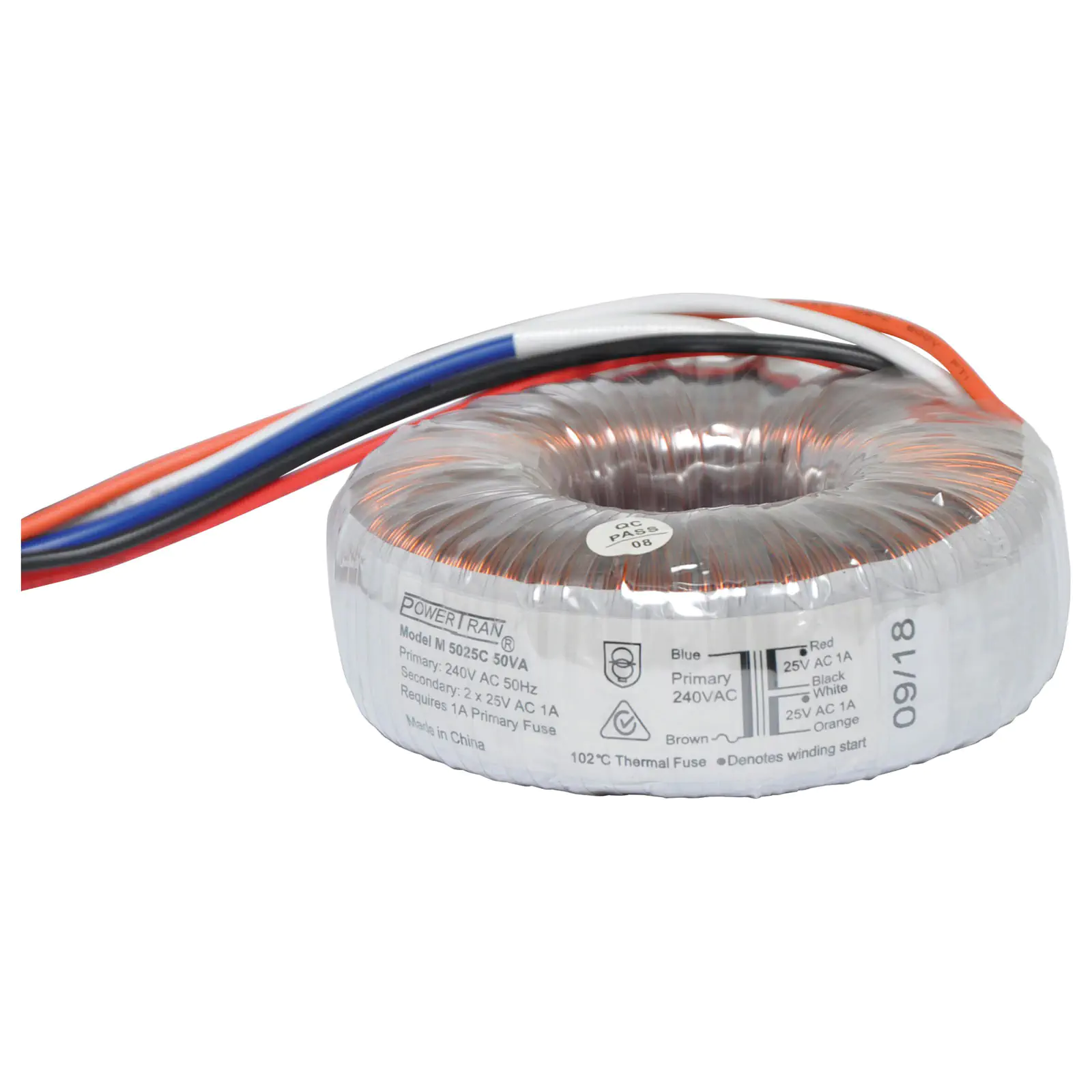

25 + 25V 50VA Toroidal Transformer

Name: 25 + 25V 50VA Toroidal Transformer
SKU: M5025C
Price: 56.32 AUD
Availability: InStock

by: Powertran

SKU: M5025C

These 50VA transformers will fit inside our 1 Unit 19" rack cases

$56.32

All Prices Shown are (ex GST)

Bulk Pricing

ea	$56.32
2+	$50.86
4+	$46.59

i h

Overview
Details
Warranty

Overview

These 50VA transformers will fit inside our 1 Unit 19" rack cases. Toroidal transformers are becoming increasingly popular due to their improved magnetic properties and also that they can be made to a lower profile than a standard solenoid core transformer, allowing for equipment of similar power to be of a lower profile such as rack mounted devices.

The advantage of the toroidal (donut) shape is that due to its symmetry the amount of magnetic flux that escapes outside the core (leakage flux) is minimised, therefore it radiates less electromagnetic interference (EMI) to nearby circuits or equipment. EMI is of increasing importance in modern low power, high frequency electronics.

The entire range has been tested and approved to the Australian standard AS/NZS 61558.2.6. This standard is equivalent to the European standard EN61558.2.6 making the transformers suitable for the European market (where 240V is used).

Manufacturers please note, we recommend that a sample is obtained to confirm suitability this product must be used with a 1A external AC fuse.

Included Mounting Hardware:

1 x Mounting Plate
1 x Gasket
1 x Mounting Bolt
1 x Nut

Specifications:

Primary voltage: 240V AC

Secondary voltage: 25V (parallel), 50V (series)

Secondary current: 2A (parallel), 1A (series)

Regulation: Better than 10%

Maximum temperature rise: 75°C

Dielectric strength: 4000V for 1 Minute

Insulation class: Class B (130ºC)

Tolerance: ± 2%

Dimensions (OD x ID x H): 85 x 24 x 31mm

Features:

Each toroidal is supplied with 2 x rubber spacing washers, 1 x steel dished washer, 1 x mounting bolt, 1 x nut (except PCB mount versions).
Lower electrically induced noise demanded by compact equipment.
High efficiency enabling conservative rating whilst maintaining size advantages.
The toroidal transformer is accepted as the industry standard, replacing the laminated type as toroidal transformers offer advantages in size, weight, and lower radiated field.

Details

Products specifications

Warranty	12 Months
Transformers
Type	Chassis Mount

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
