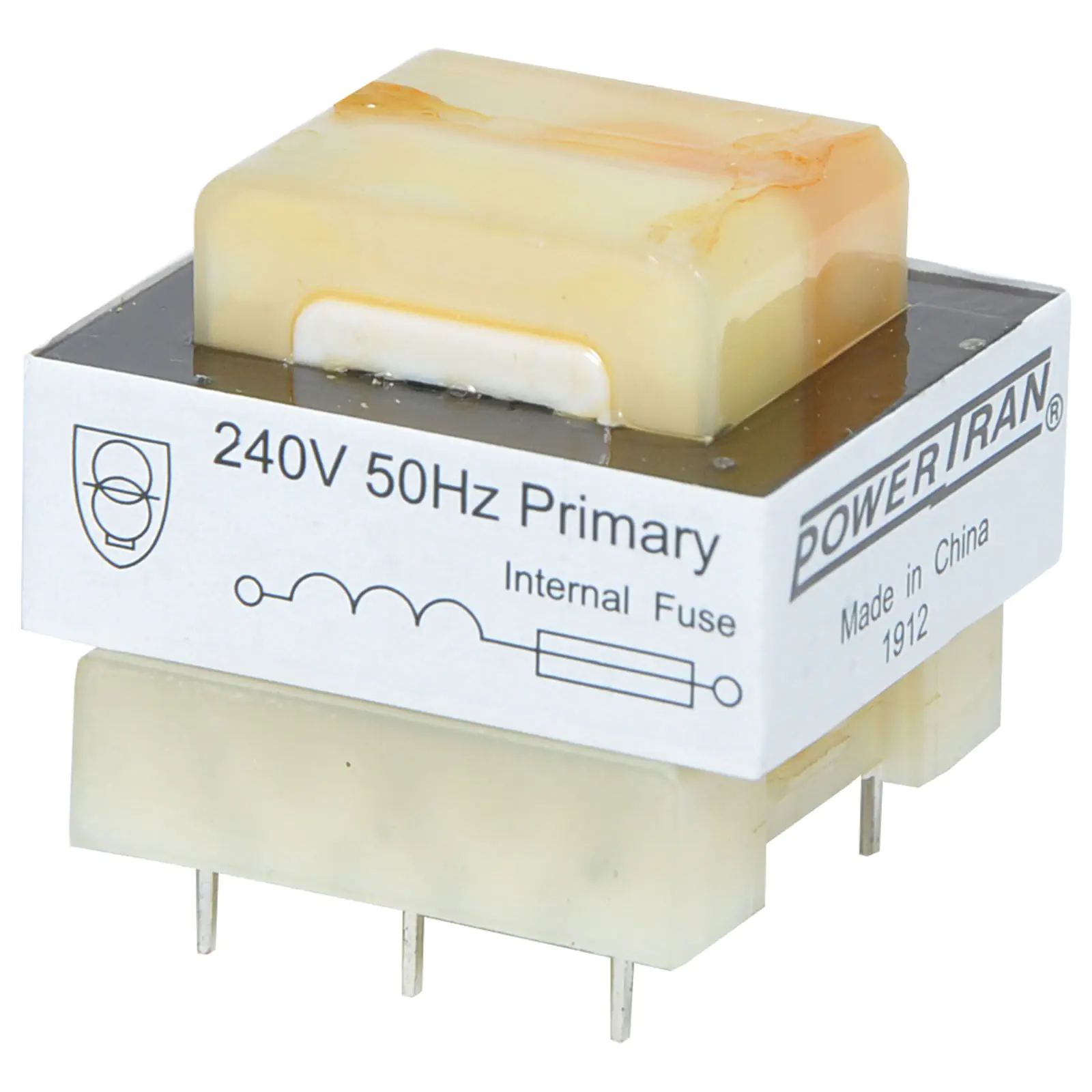

3VA 9+9V PCB Transformer

by: Powertran
SKU: M7018A
Manufactured using very high quality grain oriented silicon steel. This results in a compact, high performance, high output transformer.
$11.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $11.59
4+ $10.45
10+ $9.32
i h

Overview

Manufactured using very high quality grain oriented silicon steel. This results in a compact, high performance, high output transformer. Each transformer has been tested to verify conformance to AS/NZS 61558.2-6 standard, and is rated to operate at 230V~ or 240V~ @ 50Hz.





Specifications:



Sec. V: 9+9

Sec. Parallel: 0.33A

Sec. Series: 0.16A

Primary voltage: 230V AC or 240V AC @ 50Hz

Total VA rating: 3VA

Insulation: Class B (130°C)

Magnetising current: <20mA

Temperature rise: <65°C

Regulation: ~ 23%

Weight: ~ 95g

PCB hole size: 0.8mm

Thermal Fuse: Internal 115°C

Standard AS/NZS 61558.2.6 Certified

Details

Products specifications

Warranty 12 Months
Transformers
Type PCB Mount
