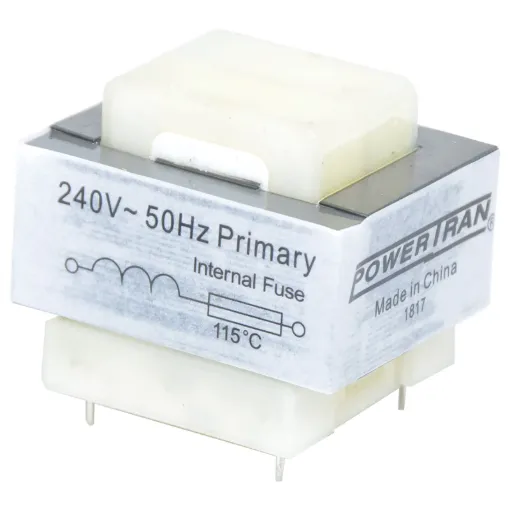

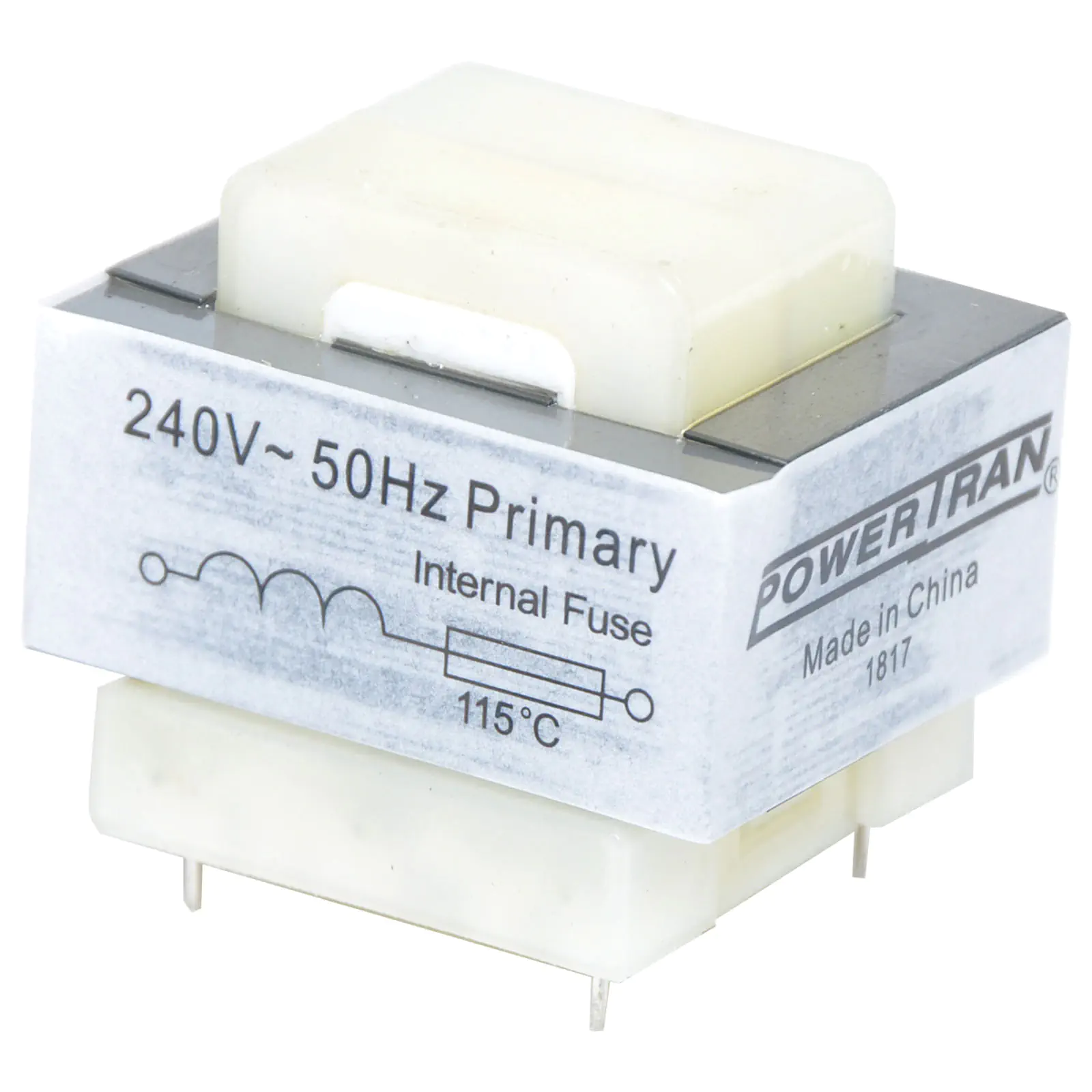

7VA Compact 9+9V PCB Transformer

by: Powertran
SKU: M7158
Physical dimensions compatible with Arlec/Stadium series Manufactured using very high quality grain oriented silicon steel. This results in a compact, high performance, high output transformer.
$15.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $15.68
4+ $14.32
10+ $12.50
i h

Overview

Physical dimensions compatible with Arlec/Stadium series Manufactured using very high quality grain oriented silicon steel. This results in a compact, high performance, high output transformer. Each transformer has been tested to verify conformance to AS/NZS 61558.2-6 standard, and is rated to operate at 230V~ or 240V~ @ 50Hz.

Note: Must be used with a standard 100mA external fuse.





Specifications:



Primary voltage: 230V AC or 240V AC @ 50Hz

Total VA Rating: 7VA

Insulation: Class A (105°C)

Magnetising Current: <30mA

Temperature Rise: <65°C

Regulation: ~ 11%

Weight: ~ 265g

PCB Hole Size: 1.2mm

Secondary Voltage: 9 + 9

Parallel : 0.77A

Series: 0.38A

Standard AS/NZS 61558.2.6 Certified

Details

Products specifications

Warranty 12 Months
Transformers
Type PCB Mount
