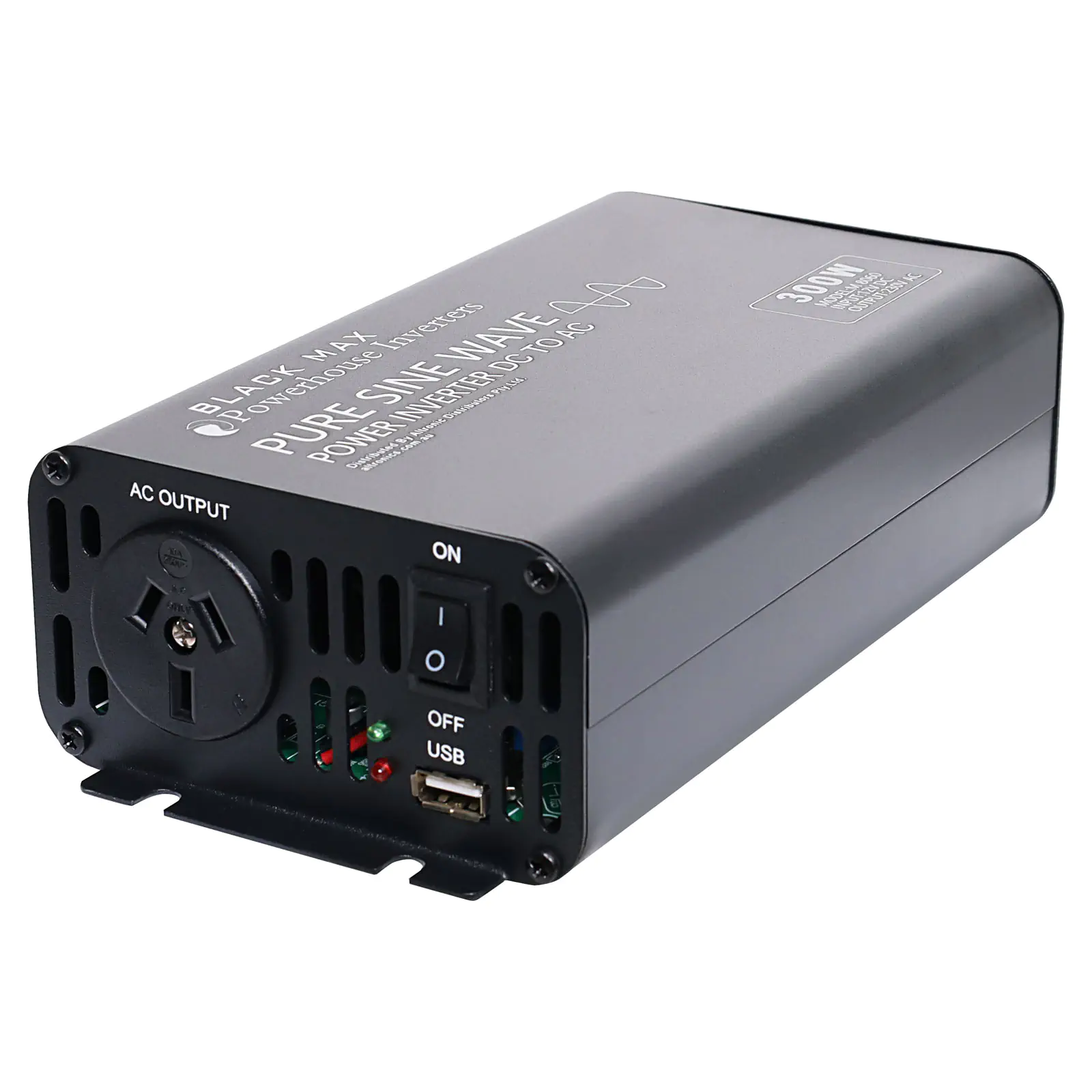

300W 12V DC to AC Pure Sine Wave Power Inverter

by: Powerhouse
SKU: M8060
This Powerhouse BlackMax inverter is designed to deliver pure AC output for powering difficult loads such as appliances with switchmode power supplies (computers, displays & game consoles) and voltage sensitive devices.
$150.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $150.00
2+ $135.00
4+ $120.45
i h

Overview

This compact inverter is designed to deliver pure AC output for powering difficult loads such as appliances with switchmode power supplies (computers, displays & game consoles). Excellent for powering appliances whilst camping, boating or in remote locations when normal 240V mains power is unavailable. Isolated design for maximum electrical safety during operation and will self reset from a number of abnormal operating conditions once the condition is resolved (such as over voltage or over temperature). Housed in a rugged aluminium case with flange mounting points and a in-built cooling fan.

Features:

  • Isolated design for maximum electrical safety
  • Pure sine wave output
  • Certified to Australian Standard AS/NZS 4763.2011
  • DC/AC isolated design
  • Safety authority tested for reliable & safe operation
  • Over temperature, over voltage, over load and short circuit protection
  • Low voltage cut off
  • Excellent voltage regulation
  • Binding post connection to battery
  • Temperature controlled cooling fan.












Specifications:

Output power: 300W

Surge power: 600W

Display Method: LED Display

Input Voltage: 12V DC

Input Range: 10-15

Low Voltage Protection: 10.0V ±0.3

Over Voltage Protection: 15.0V±0.3

Recovery Voltage: 13.2V±0.3

No-load current: 0.35A

Overload protection: 300W > 110%

Output voltage: 230V AC

Output frequency: 50Hz

Output waveform: Pure sine wave

Over heating protection: 80° ± 5°

Waveform THD: =3%

Conversion efficiency: 90%

Cooling method: Fan cooling

Dimensions: 183x110x60mm

Product Weight: 1.0kg





Details

Products specifications

Warranty 5 Years, 5 Years

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
