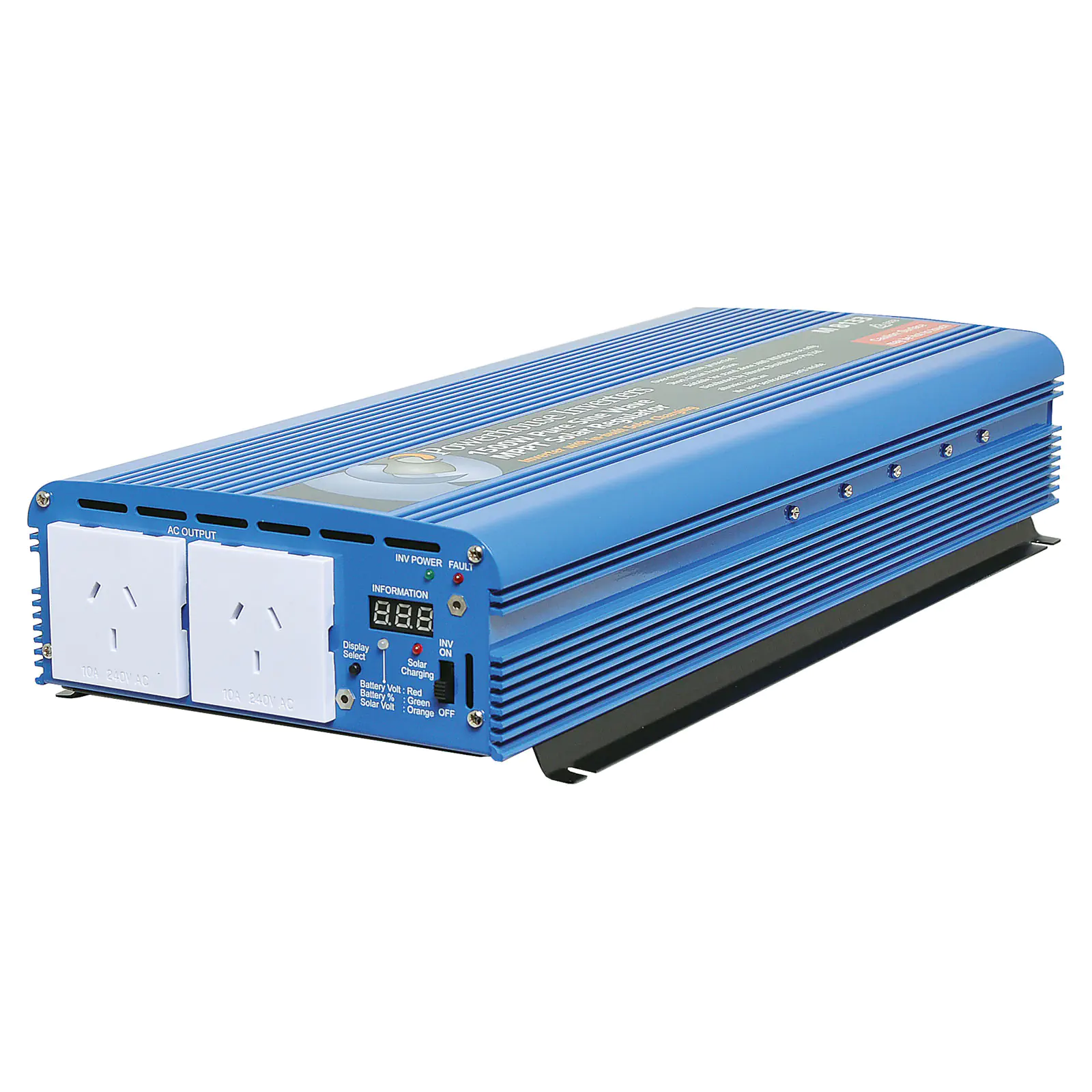

1500W 12V To 240V Pure Sine Wave Inverter & Solar Charger

by: Powerhouse
SKU: M8133

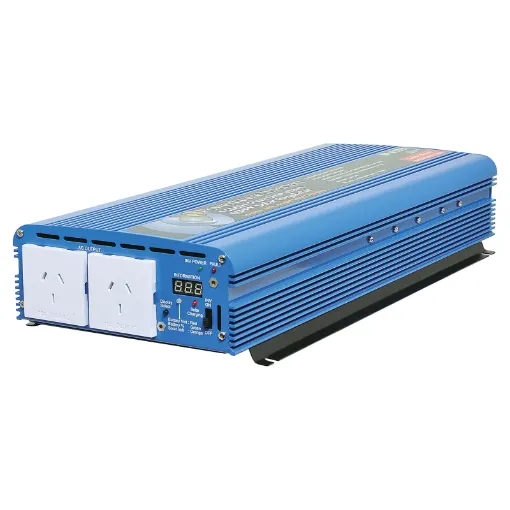

A versatile and high spec inverter with MPPT solar charger in built.
Save $54.55 $308.18 $362.73

All Prices Shown are (ex GST)
Bulk Pricing
ea
$308.18 $362.73
i h

Overview

A versatile and high spec inverter with MPPT solar charger in built. This unit is ideal for off-grid solar panel systems, providing 240V pure AC mains power for your appliances, whilst charging 12V batteries efficiently via an in-built MPPT solar charger. MPPT chargers provide up to 20% more charge energy than conventional regulators. Solar panels are connected directly to the inverter for a neat single unit power solution for caravans, RVs, boats and remote homes. Pure AC output delivering stable power to difficult loads. Designed for sensitive devices requiring low power input such as laptops, switch-mode plug packs, game consoles etc.





Specifications:



Output / surge power: 1500W / 3000W

DC input voltage (nominal): 12V DC

Output voltage: 240V AC @ 50Hz

Output wave form: Pure Sine Wave

Efficiency (typical): >90%

No-load current draw: <1.8A

12V battery shutdown: 10V low, 15V high

Alarm & thermal shutdown: 60°C

Max solar panel input: 360W

Battery charge current: 12V= 20A

Battery charging mode: 3 stages (CC,CV, Floating)

PV input voltage range: 12V= 15-22V

PV input power max: 12V= 360W (2 x 180W in parallel)

LED display: CC,CV, Floating

LCD display: Solar Inout Voltage/ Battery Output Voltage

Dimensions (L x W x Hmm): 353 x 195 x 83

Net weight: 4kg



Features:

  • 3000W surge rating
  • 1500W continuous
  • Pure AC output
  • 3 stage MPPT solar regulator in-built
  • Sturdy construction for use in rugged environments
  • Soft starting
  • High efficiency
  • Reverse polarity protection
  • Output overload protection
  • Over temperature protection
  • High and low battery voltage shutdown
  • Output short circuit protection
  • Standard AC mains outlet for 240V connection
