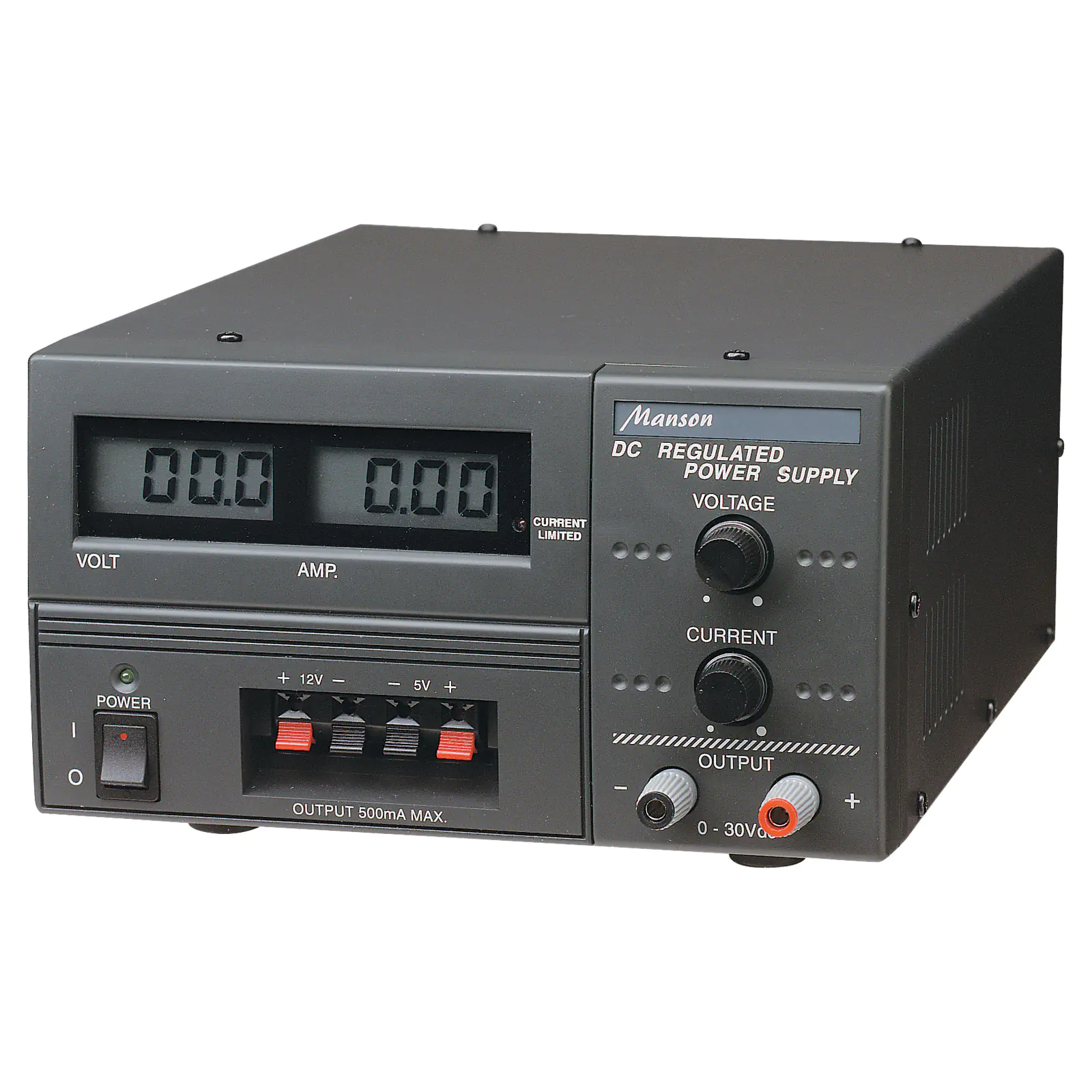

30V 3A Regulated Linear Benchtop Lab Power Supply

by: Manson
SKU: M8200A
With an output of up to 30 volts at 3 amps, this compact bench power supply has been one of our most popular. Both output voltage and current are fully adjustable. In the case of an output short, the power supply goes into overload and shuts down. In addition to the variable output, the supply is fitted with 2 fixed outputs, 1 of 12V and the other of 5V both rated at 0.5A. It is ideal for R+D departments, service centres, workshops etc
$380.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $380.91
2+ $353.64
4+ $326.36
i h

Overview

With an output of up to 30 volts at 3 amps, this compact linear mode bench power supply has been one of our most popular. Both output voltage and current are fully adjustable. In the case of an output short, the power supply goes into overload and shuts down. In addition to the variable output, the supply is fitted with 2 fixed outputs, 1 of 12V and the other of 5V both rated at 0.5A. It is ideal for R+D departments, service centres, workshops etc.





Specifications:



Voltage output: 0 to 30V DC @ 0-3A

Auxillary outputs: 12 Volt DC @ 0.5A, 5 Volt DC @ 0.5A

Output current: Variable 0 to 3A on main, 500mA max fixed rails

Ripple & noise: Less than 5mV

Load regulation: 20mV 0-10% Load

Apprx. Size(WxHxD): 205W x 115H x 230D mm

Net weight: 5.4kg



Features:

  • 0 to 30V @ 0 to 3A output
  • Regulated variable output voltage
  • Auxiliary fixed outputs of 5V & 12V @ 0.5A
  • Variable current limiting
  • Digital LCD meters
  • Overload & short circuit protected
  • Floating outputs
  • Extremely low ripple & noise
  • Linear toroidal design
  • Excellent regulation

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
.pdf
User Manual
PDF
