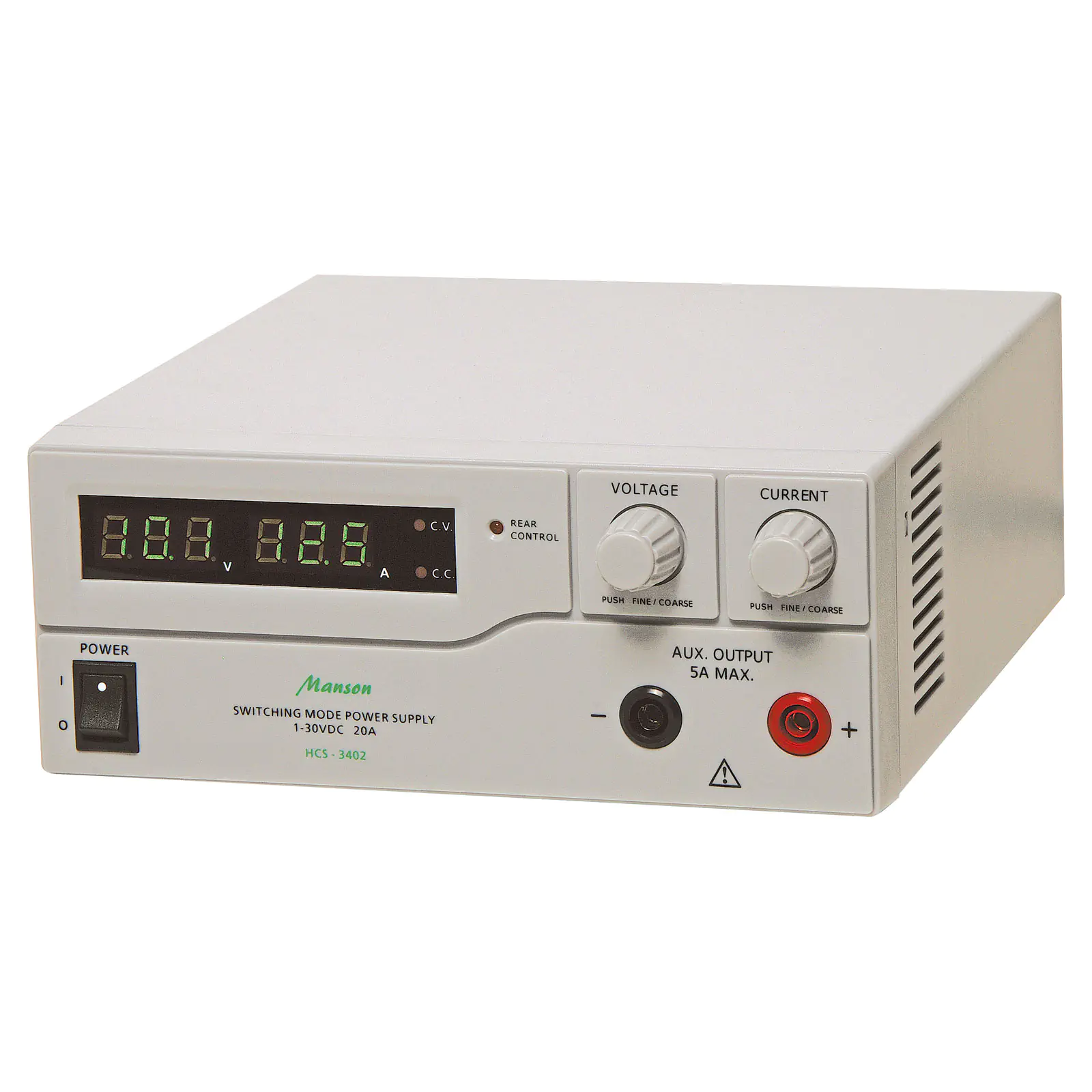

1-30V 20A Regulated Lab Power Supply

by: Manson
SKU: M8213
A 1-30V, 20A adjustable current limiting power supply. Both voltage and current settings may be set in fine or coarse modes allowing precise adjustments. Includes three programmable preset outputs.
$571.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $571.82
2+ $518.18
4+ $468.18
i h

Overview

A 1-30V, 20A adjustable current limiting power supply. Both voltage and current settings may be set in fine or coarse modes allowing precise adjustments. Includes three programmable preset outputs. Remote control of settings is also possible. Fixed 5A auxiliary output on the front panel allows quick connection to devices. When initially powered up the unit performs self diagnostics to ensure reliable operation.





Specifications:



Voltage output: 1 to 30V DC @ 20A

Auxiliary outputs: 1 to 30V DC @ 5A max

Output current: 20A max

Ripple & noise: Less than 5mV

Load regulation: 50mV 0-100% Load

Apprx. Size(WxHxD): ≈200 x 90 x 215 mm

Net weight: ≈2.6kg



Features:

  • 1 to 30V @ 20A output
  • Adjustable current limiting
  • Regulated variable output voltage or fixed via 3 presets
  • Auxiliary fixed output, max 5A
  • Digital LED meters
  • Overload & short circuit protected
  • Extremely low ripple & noise
  • Excellent regulation
  • Highly efficient switchmode design

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
.pdf
User Manual
PDF
