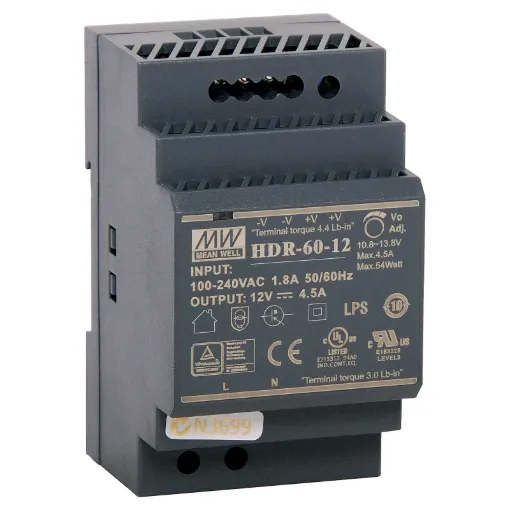

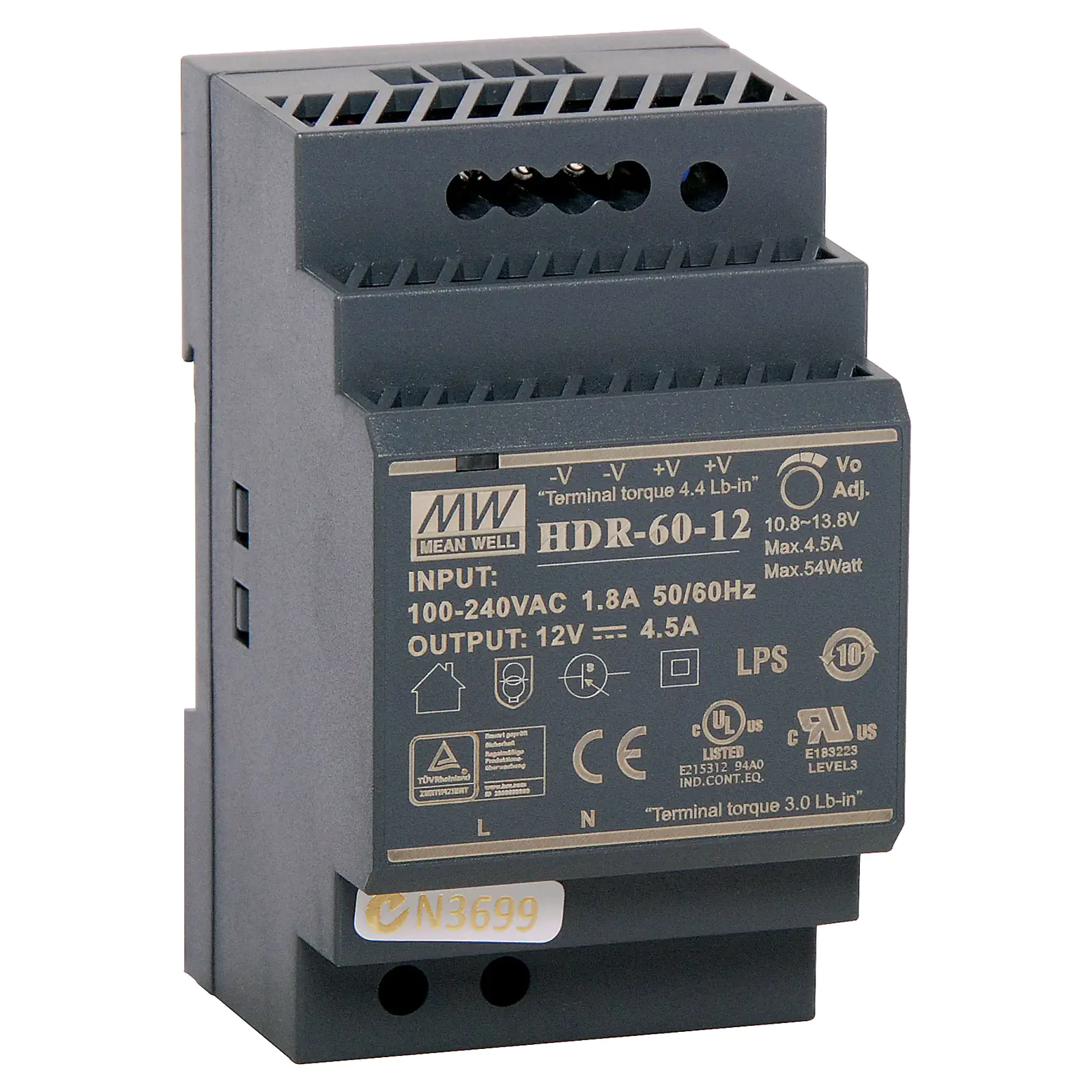

HDR-60-12 60W 12VDC 4.5A DIN Rail Switchmode Power Supply

by: Mean Well
SKU: M8394
The Mean Well HDR-60-12 is a 60W DIN rail mountable power supply with a DC output voltage of 12V. The design is ideal for lower current DC power applications in a standardised DIN rail housing to suit mounting to asymmetrical ā€œGā€ or 35mm top hat type DIN rails.
$59.59

All Prices Shown are (ex GST)

Bulk Pricing
ea $59.59
2+ $56.86
4+ $54.77
i h

Overview

The Mean Well HDR-60-12 is a 60W DIN rail mountable power supply with a DC output voltage of 12V. The design is ideal for lower current DC power applications in a standardised DIN rail housing to suit mounting to asymmetrical ā€œGā€ or 35mm top hat type DIN rails. Each unit measures only 90mm high and is supplied in 35mm and 52.5mm widths.



Specifications:



  • Output: 4.5A
  • Rated Wattage: 54W
  • Inrush Current: 30A
  • Efficiency: 88%
  • Input Range: 85-264V AC, 120-370V DC
  • Input Frequency: 47-63Hz
  • Warranty: 3 years
  • Weight: 190g
  • Dimensions: 52.5 x 90 x 54.5mm



Features:

  • 60W power output at 12V DC (4.5A)
  • Ultra slim design with 35 or 52.5mm widths
  • Universal AC input
  • Protections: short circuit, overload, over voltage
  • Cooling by free air convection
  • Suits TS-35/7.5 or 15 DIN rail
  • LED power indicator
