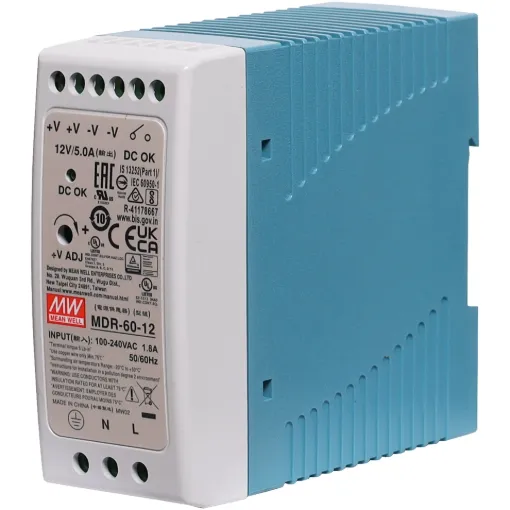

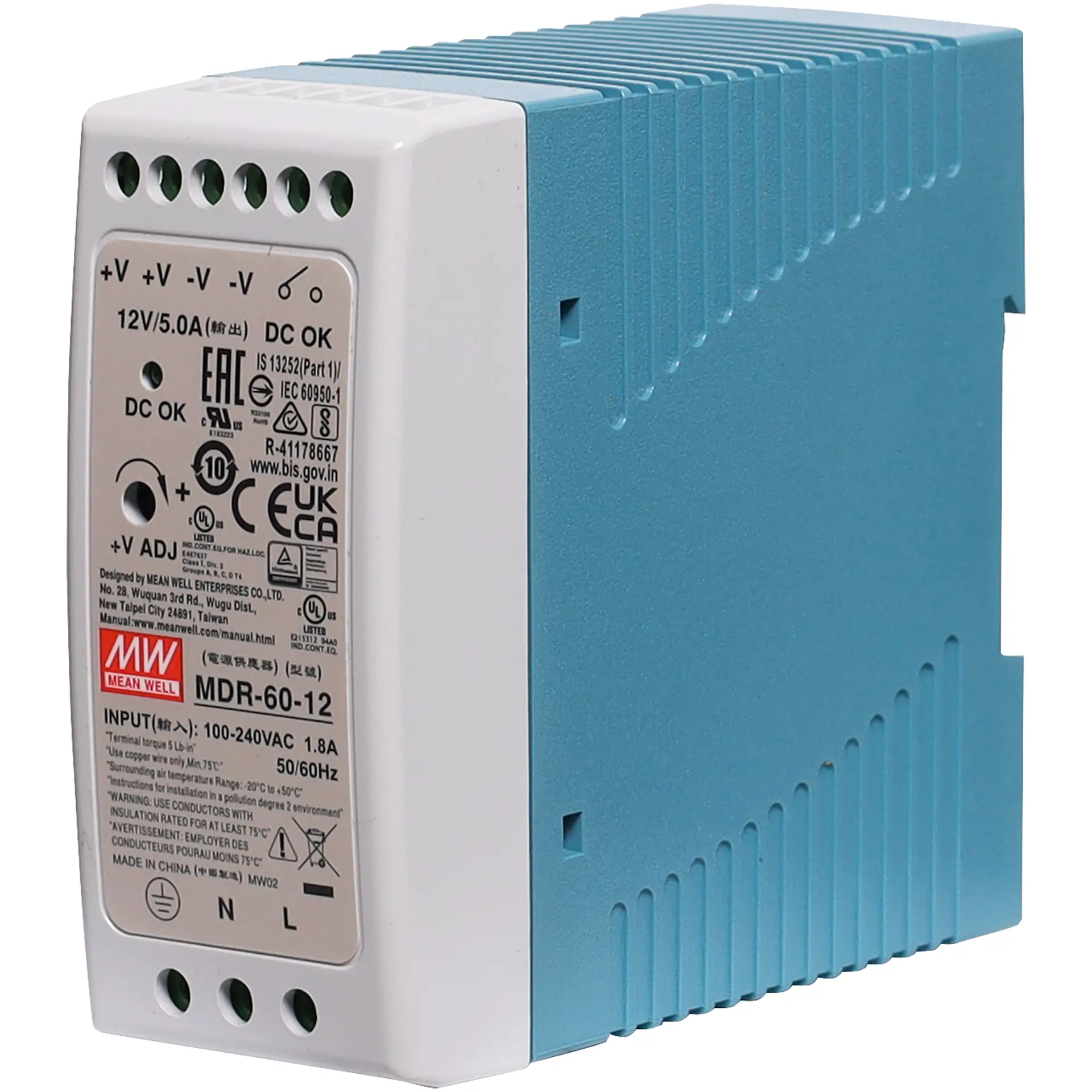

MDR-60-12 60W 12VDC 5A DIN Rail Switchmode Power Supply

by: Mean Well
SKU: M8405A
The Mean Well MDR-60-12 provides 12VDC 5A output with a rated power output of 60W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage.
$62.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $62.68
2+ $60.23
4+ $57.95
i h

Overview

The Mean Well MDR-60-12 provides 12VDC 5A output with a rated power output of 60W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage. Suitable for mounting to DIN rail TS-35/7.5 or 15 types.

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced.





Specifications:



Output:

DC Voltage: 12V

Rated Current: 5A

Current Range: 0~5A

Rated Power: 60W

Ripple/Noise: =< 120mv

Voltage ADJ Range: 12~15V

Voltage Tolerance: ±1.0%

Line Regulation: ±1.0%

Load Regulation: ±1.0%

Setup/rise time: 500ms, 30ms/230VAC , 500ms, 30ms/115VAC at full load

Hold up time: 50ms/230VAC , 20ms/115VAC at full load

Dimensions: 40W x 100D x 90H



Input:

Input range: 85~264VAC, 120~370VDC

Frequency: 47-63Hz

AC Current: 1.8A/115VAC, 1A/230VAC

Efficiency: Approx. 86%

Inrush Current: Cold Start 30A/115VAC, 60A/230VAC

Leakage Current: <1mA/240VAC



Features:

  • 60W rated power
  • 12V DC 5A output
  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Class I Div 2 Hazardous Locations T4
  • LED indicator for power on
  • DC OK relay contact
  • No load power consumption<0.75W
  • 100% full load burn-in test
