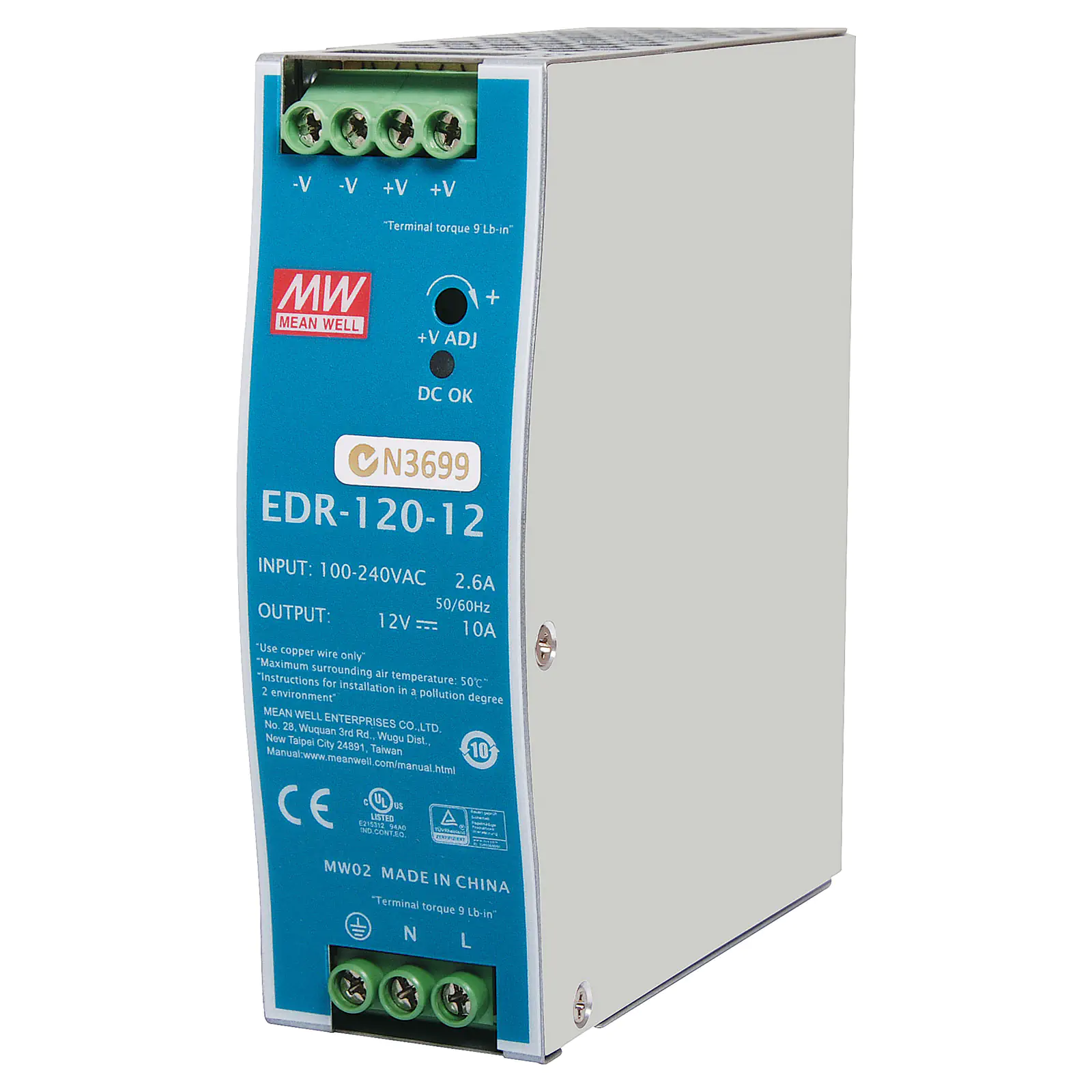

EDR-120-12 120W 12VDC 10A DIN Rail Switchmode Power Supply

by: Mean Well
SKU: M8406A
The Mean Well EDR-120-12 provides 12VDC 10A output with a rated power output of 120W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage.
$81.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $81.77
2+ $81.59
4+ $76.14
i h

Overview

The Mean Well EDR-120-12 provides 12VDC 10A output with a rated power output of 120W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage. Suitable for mounting to DIN rail TS-35/7.5 or 15 types.

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced.





Specifications:



Output

DC Voltage: 12V

Rated Current: 10A

Current Range: 0-10A

Rated Power: 120W

Ripple & Noise: 100mV p-p

Voltage Adjust Range: 12-14V

Voltage Tolerance: ±2.0%

Line Regulation: ±0.5%

Load Regulation: ±1.0%

Setup / Rise Time: 1200ms / 60ms @ 230VAC

Hold Up Time (Typical): 16ms @ 230VAC



Input

Voltage Range: 90-264VAC 127-370VDC

Frequency Range: 47-63Hz

Efficiency (Typical): 85%

AC Current (Typical): 2.25A/115VAC, 1.3A/230VAC

Inrush Current (Typical): Cold Start 35A/230VAC

Leakage Current: <1mA/240VAC



Protection

Overload: 105-130% rated power output

Over Voltage: 14-17V

Protection Type: Shut down o/p voltage, re-power on to recover



Function

DC Ok Signal: Relay contact rating (Max) 30V 1A resistive



Environment

Working Temperature: 20 - +60ºC

Working Humidity: 20-95% RH non condensing

Temperature Coefficient: ±0.03%/ºC(0-50ºC)

Vibration: 10-500Hz, 2G 10 minutes/1cycle, period for 60 minutes. Each along X,Y,Z, axis

Dimensions: 40W x 125H x 113D mm

Weight: 0.6kg



Features:

  • 120W rated power
  • 12V DC 10A output
  • Vented metal enclosure
  • Universal AC input/Full range
  • Protection: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 100% full load burn-in test
