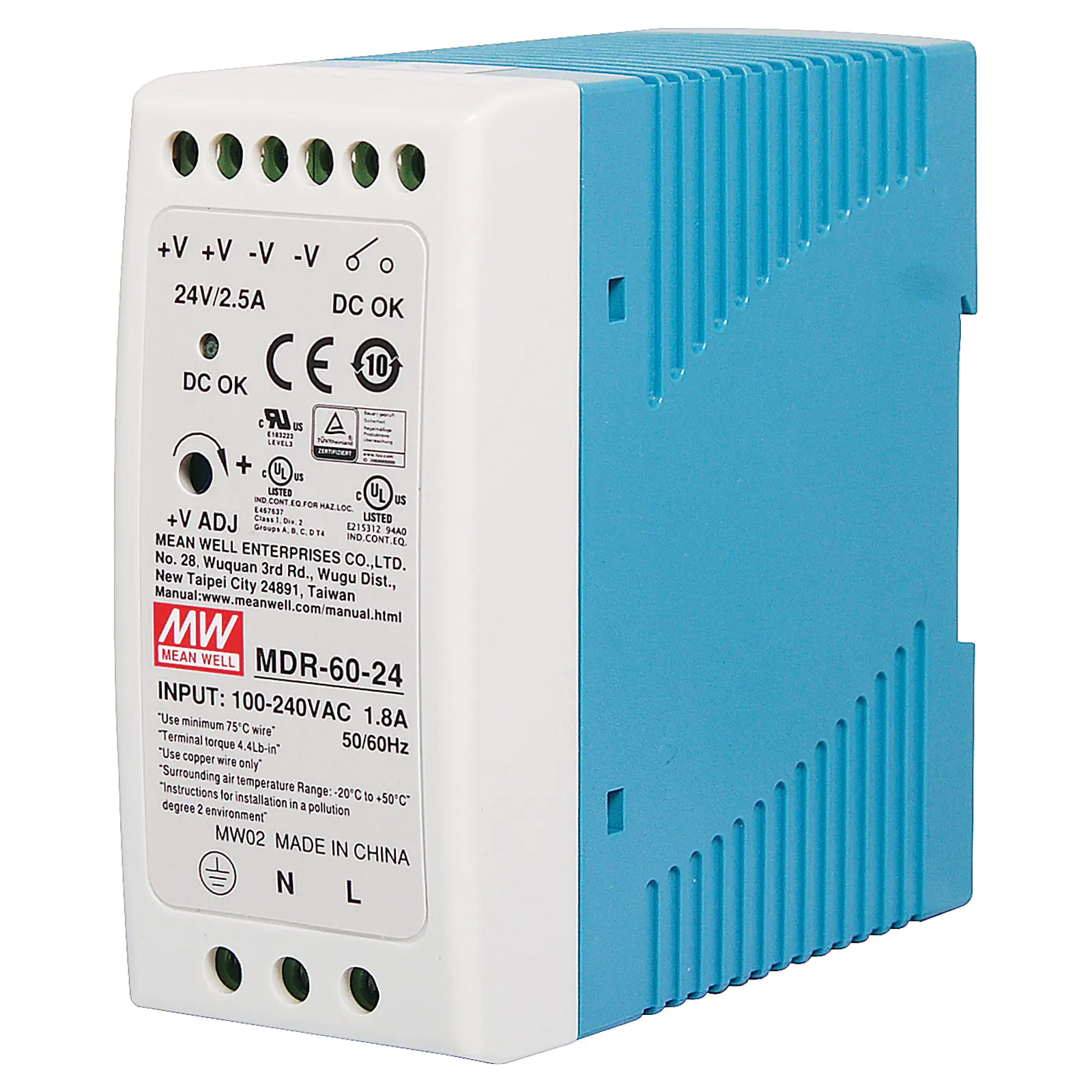

MDR-60-24 60W 24VDC 2.5A DIN Rail Switchmode Power Supply

by: Mean Well
SKU: M8409A
The Mean Well MDR-60-24 provides 24VDC 2.5A output with a rated power output of 60W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage.
$57.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $57.95
2+ $55.68
4+ $53.41
i h

Overview

The Mean Well MDR-60-24 provides 24VDC 2.5A output with a rated power output of 60W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage. Suitable for mounting to DIN rail TS-35/7.5 or 15 types.

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced.



Specifications:



Output

DC Voltage: 24V

Rated Current: 2.5A

Current Range: 0-2.5A

Rated Power: 60W

Ripple & Noise: 150mV p-p

Voltage Adjust Range: 24-30V

Voltage Tolerance: ±1.0%

Line Regulation: ±1.0%

Load Regulation: ±1.0%

Setup / Rise Time: 500ms / 30ms @ 230VAC

Hold Up Time (Typical): 50ms @ 230VAC



Input

Voltage Range: 85-264VAC 120-370VDC

Frequency Range: 47-63Hz

Efficiency (Typical): 88%

AC Current (Typical): 1.8A/115VAC, 1A/230VAC

Inrush Current (Typical): Cold Start 60A/230VAC

Leakage Current: <1mA/240VAC



Protection

Overload: 105-150% rated power output

Over Voltage: 31.2-36V

Protection Type: Shut down o/p voltage, re-power on to recover



Function

DC Ok Signal: Relay contact rating (Max) 30V 1A resistive



Environment

Working Temperature: -20 - +70ºC

Working Humidity: 20-90% RH non condensing

Temperature Coefficient: ±0.03%/ºC(0-50ºC)

Vibration: 10-500Hz, 2G 10 minutes/1cycle, period for 60 minutes. Each along X,Y,Z, axis

Dimensions: 40W x 90H x 100D mm

Weight: 0.33kg



Features:

  • 60W rated power
  • 24V DC 2.5A output
  • Universal AC input/Full range
  • Protection: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • NEC class 2 / LPS compliant
  • LED indicator for power on
  • DC OK relay contact
  • No load power consumption<0.75W
  • 100% full load burn-in test
