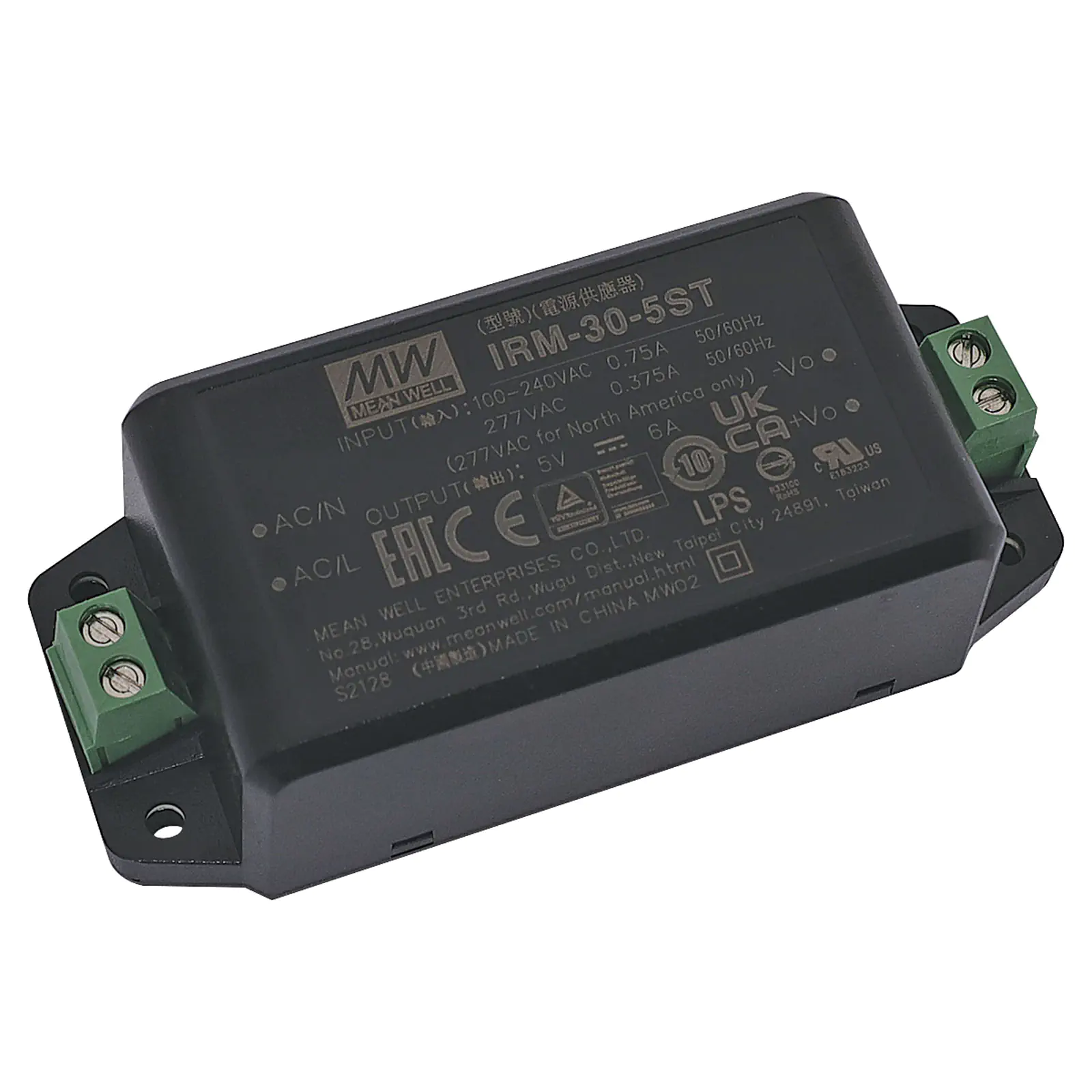

30W 5V/6A Mini Screw Terminal Power Supply

by: Mean Well
SKU: M8418
The Mean Well IRM-30-5ST 30W miniature AC-DC power supply is ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment.
$34.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $34.14
2+ $32.68
4+ $31.36
i h

Overview

The Mean Well IRM-30-5ST 30W miniature AC-DC power supply features screw terminals for simple connection to electronic instruments or industrial automation equipment. It has a universal input range from 85-305V AC and output at 5VDC (at 6A max current). The 94V-0 flame retardant plastic case and fully potted silicone enhance the heat dissipation. Meets anti-vibration demand up to 5G and provides resistance to dust and moisture.

With the high efficiency up to 90% and the extremely low no-load power consumption below 0.1W, IRM-30 series fulfils the worldwide regulation for the low power consumption requirement of electronics. The entire series is a Class II design (no FG pin), incorporating the built-in EMI filtering components and enabling compliance with BS EN/EN55032 Class B; the supreme EMC features keep the end electronics units from electromagnetic interference.





Specifications:



General

Model: Mean Well IRM-30-5ST

Weight: 114.5g

Dimensions: Screw Terminal Style - 91 x 39.5 x 28.5 mm



Output

DC Voltage: 5V

Rated Current: 6A

Current Range: 0~6A

Rated Power: 30W

Ripple & Noise (max): 120mVp-p

Voltage Tolerance: ±2.5%

Line Regulation: ±0.5%

Load Regulation: ±1.0%

Setup/Rise Time: 1000ms, 30ms/230V AC, 1500ms, 30ms/115V AC at full load

Hold Up Time (typ): 40ms/230V AC, 12ms/115V AC



Input

Voltage Range: 85 ~ 305 V AC

Frequency Response: 47~440Hz

Efficiency (typ): 83%

AC Current (typ): 0.75A/115V AC, 0.5A/230V AC, 0.375A/277V AC

Inrush Current (typ): Cold Start 25A/115V AC, 45A/230V AC

Leakage Current: <0.25mA/277V AC



Protection

Overload: 105% ~ 160% rated output power

Overload Protection Type: Hiccup Mode, recovers automatically after fault condition is removed

Over Voltage: 5.25 ~ 6.75V

Over Voltage Protection Type: Shut off op voltage, clamping by zener diode.



Environment

Working Temperature: -30°C ~ +70°C

Working Humidity: 20 ~ 90% RH non-condensing

Storage Temperature/Humidity: -40 ~ +85°C, 10 ~ 95% RH

Temperature Coefficient: ±0.03%/°C (0 ~ 50°C)

Vibration: 10 ~ 500Hz, 5G 10min/1 cycle, period of 60 mins. Each along X, Y, Z axis

Lead Temperature: 260±5°C, 5s (max)

Over Voltage Category: III, according to EN62368-1, altitude up to 2000 meters

Operating Altitude: 2000 meters



Features:

  • Small, compact size with simple screw terminal connection
  • Wide operating temperature range
  • EMI Class B without additional components
  • Short circuit, overload & over voltage protections
  • Cooling by free air convection
