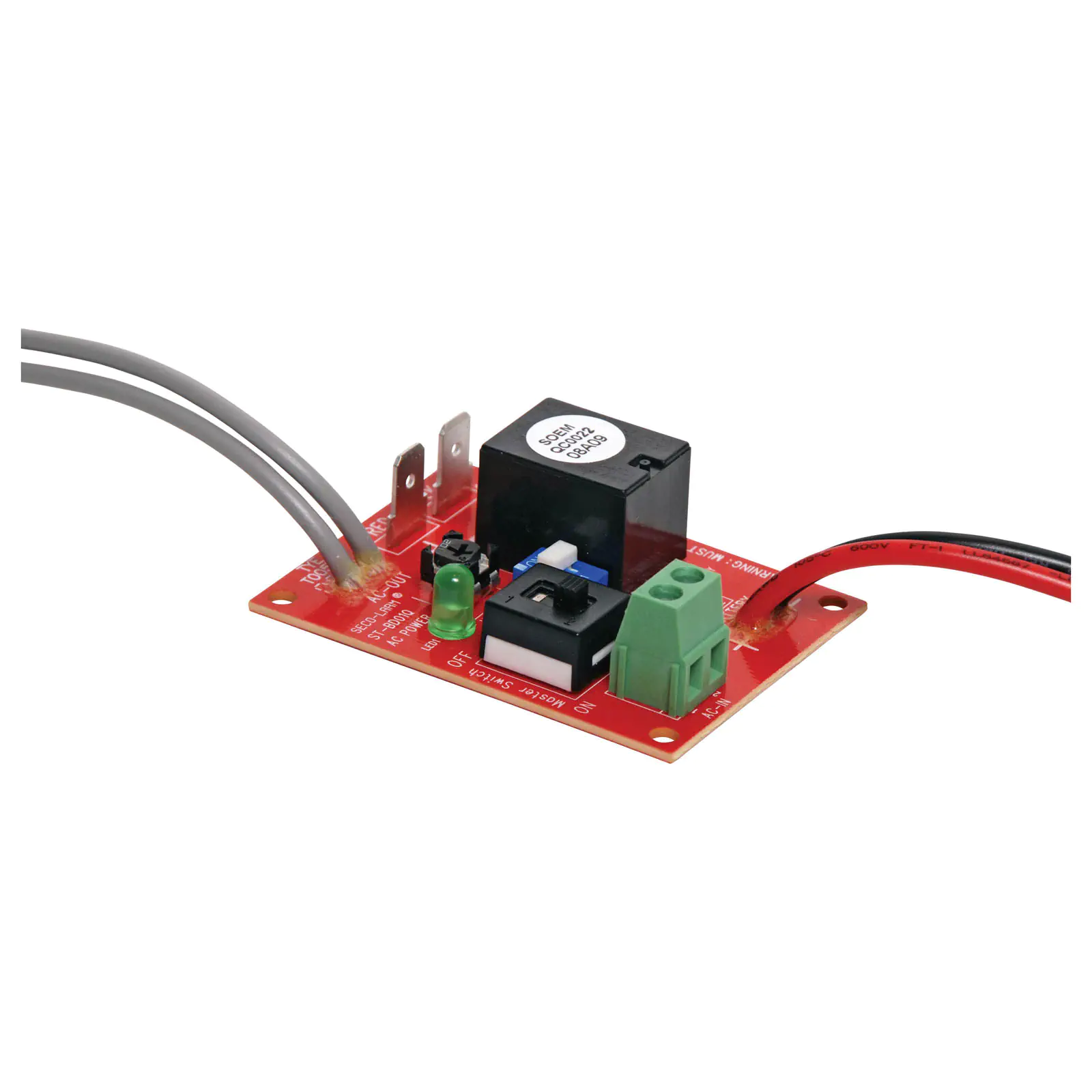

Low Battery Cut Off Module

by: Enforcer
SKU: M8550
Compatible with both 12 and 24V batteries, this cut off module prevents deep discharge of backup batteries in security & UPS backup systems. This ensures longer battery service life. Simple in-line connection between battery and control panel. Cut off point is adjustable between 9-10V in a 12V system or 19.2-20.3V in a 24V system.
$34.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $34.50
2+ $32.95
4+ $31.36
i h

Overview

Compatible with both 12 and 24V batteries, this cut off module prevents deep discharge of SLA backup batteries in security & UPS backup systems. This ensures longer battery service life. Simple in-line connection between battery and control panel. Cut off point is adjustable between 9-10V in a 12V system or 19.2-20.3V in a 24V system. A master on/off switch is also provided for disconnecting the battery from the control panel.





Specifications:



12V cut off point: 9-10V

24V cut off point: 19.2-20.3V

Relay contact rating: 7A @ 30VDC

LED indicators:

Green: AC

Red: 12VDC

Blue: 24VDC



Connections:

AC input: Terminal block

AC output: Grey wire leads

DC Quick-connect terminal (battery side)

On-board male spade terminal

Dimensions 60 x 45 x 22 mm.

Details

Products specifications

Warranty 12 Months
