The perfect solution for measuring input and output currents and wattage from solar panels or batteries.

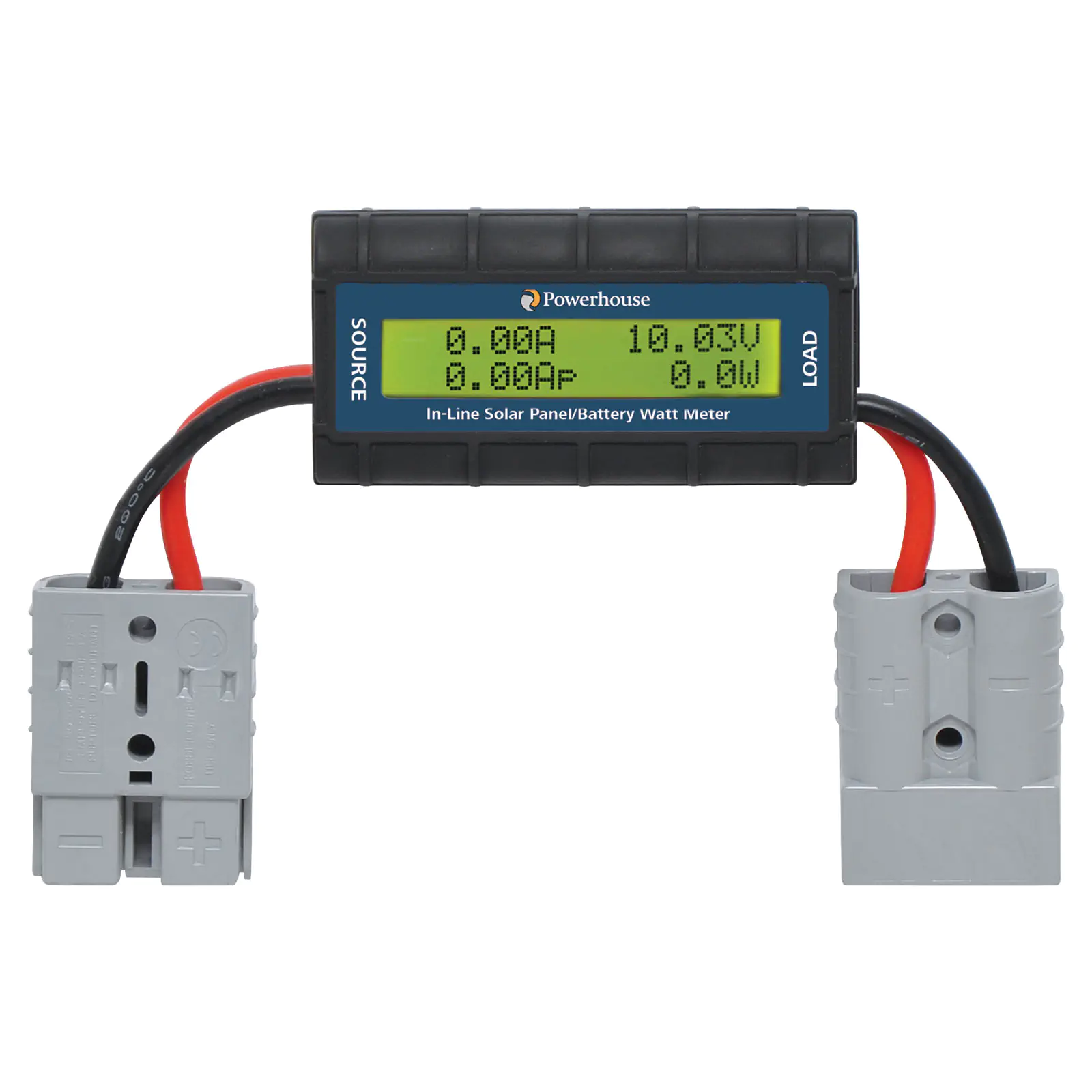

In-Line Solar Panel/Battery Watt Meter

Name: In-Line Solar Panel/Battery Watt Meter
SKU: M8636A
Price: 45.41 AUD
Availability: InStock

by: Powerhouse

SKU: M8636A

The perfect solution for measuring input and output current levels and wattage from solar panels or batteries.

$45.41

All Prices Shown are (ex GST)

Bulk Pricing

ea	$45.41
3+	$40.86
6+	$36.32

i h

Overview
Details
Warranty
Downloads

Overview

The perfect solution for measuring input and output currents and wattage from solar panels or batteries. This watt meter accurately measures DC power usage. The display measures volts, watts and amps in real-time. The device also has a data scroll of eight key electrical parameters which reset every time the meter is powered off. Ideal for monitoring the output of solar panels or current draw from DC appliances such as portable fridges, lighting etc. 50A anderson style connectors provide an easy in line connection to the supply and load.

NOTE: 200A peak current (130A rated). Please note, includes standard 50A Anderson type connectors.

Specifications:

Operation:

Operating Temperature: 0°C to 70°C (32°F to 158°F)

Operating Voltage: 8-60V (0-8 V with auxiliary power)

Operation Current: 0.2-0.5A

Auxiliary Battery Operating Voltage: 9-60V DC

Auxiliary Battery Operating Current: 0.2-0.5A

Measures:

130A rated. 200A (max - 1min)

0-60V, resolution 0.01V

0-6554W, resolution 0.1W

0-65Ah, resolution 0.001Ah

0-6554Wh, resolution 0.01W

Measurement Update Period: 0.4s

General:

Data Queue Sequence Time: 2s

Wire Size: 12 AWG

Display: 16 x 2 backlit LCD screen

Dimensions: 85L x 42W x 25H mm

Weight: 82g

Features:

Operates 8-60V DC
Ideal for 12V or 24V DC electrical systems
Displays volts, amps, watts and average watts
Backlit LCD Screen
Anderson style connectors for easy connection
Use with fridges, solar panels, dual battery systems and battery packs.

Details

Products specifications

Warranty	12 Months
