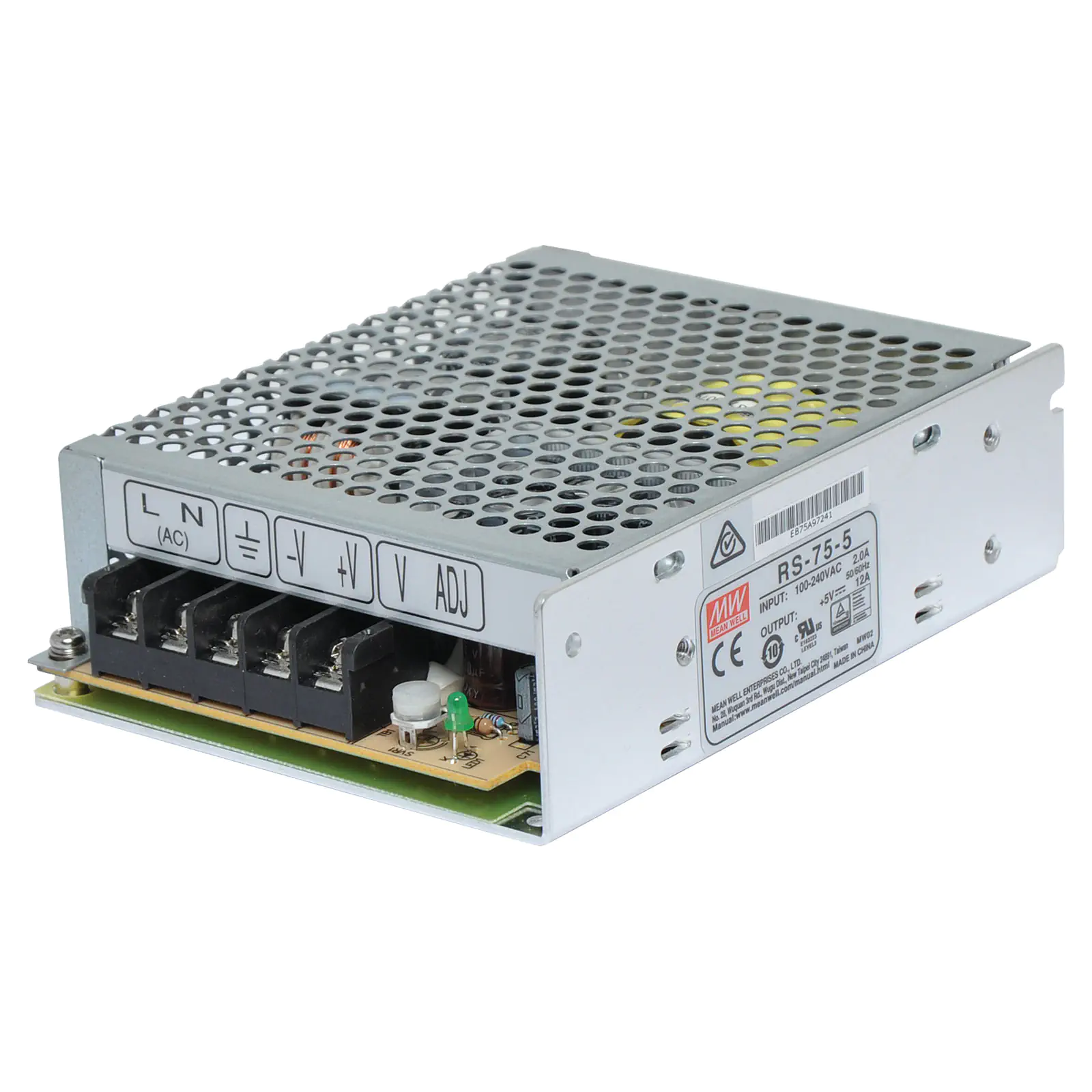

RS-75-5 60W 5VDC Switchmode Power Supply

by: Mean Well
SKU: M8724
The Mean Well RS-75-5 has a rated output of 60W at 5V DC. This range of switchmode power supplies offer high efficiency DC power in a compact enclosure. They are designed to be installed within a secondary cabinet as the 240V input terminals are exposed.
$61.60

All Prices Shown are (ex GST)
Bulk Pricing
ea $61.60
2+ $52.95
4+ $50.86
i h

Overview

The Mean Well RS-75-5 has a rated output of 60W at 5V DC. This range of switch mode power supplies offer high efficiency DC power in a compact enclosure. They are designed to be installed within a secondary cabinet as the 240V input terminals are exposed. The mesh casing allows free air cooling without the need for fans (-25° to +70°C working temperature). The low profile casing makes them ideal for mounting into 1RU rack cases.

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies. They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced.





Specifications:



Output

DC Voltage: 5V

Rated Current: 12A

Current Range: 0-12A

Rated Power: 60W

Ripple & Noise: 80mV p-p

Voltage Adjust Range: 4.75-5.5V

Voltage Tolerance: ±2.0%

Line Regulation: ±0.5%

Load Regulation: ±1.0%

Setup / Rise Time: 500ms / 30ms @ 230VAC

Hold Up Time (Typical): 60ms @ 230VAC



Input

Voltage Range: 88-264VAC 125-373VDC (Withstand 300VAC surge for 5s. Without damage)

Frequency Range: 47-63Hz

Efficiency (Typical): 79%

AC Current (Typical): 2.0A/115VAC, 1.2A/230VAC

Inrush Current (Typical): Cold Start 40A/230VAC

Leakage Current: <2mA/240VAC



Protection

Overload: 110-150% rated power output

Over Voltage: 5.75-6.75V

Protection Type: Hiccup mode, recovers automatically after fault condition is removed



Environment

Working Temperature: -20 - +70ºC

Working Humidity: 20-90% RH non condensing

Temperature Coefficient: ±0.03%/ºC(0-50ºC)

Vibration: 10-500Hz, 5G 10 minutes/1cycle, period for 60 minutes. Each along X,Y,Z, axis

Dimensions: 129L x 97W x 38H mm

Weight: 0.41kg



Features:

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105ºC long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70ºC
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
