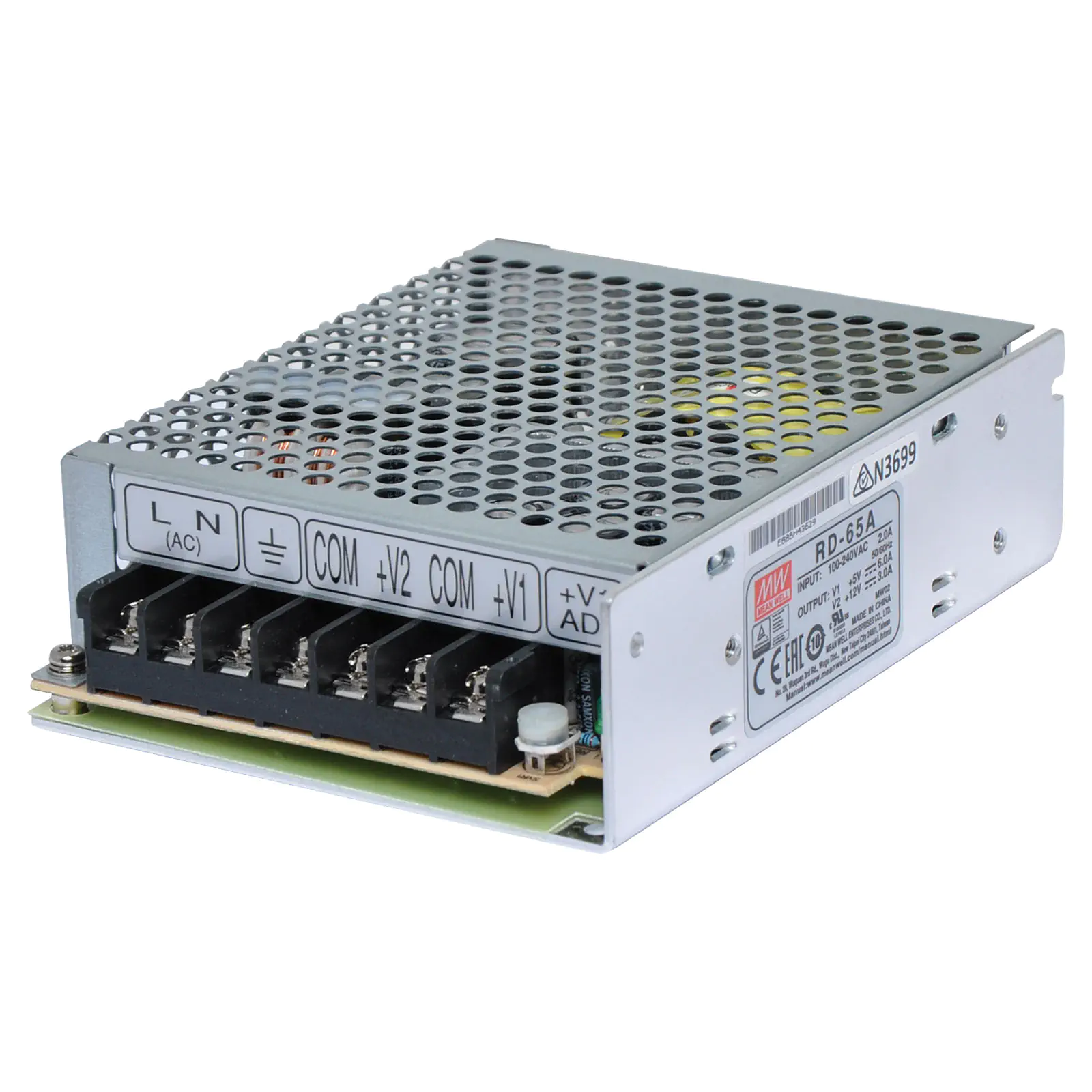

RD-65A 66W 5VDC / 12VDC Dual Rail Switchmode Power Supply

by: Mean Well
SKU: M8802
The Mean Well RD-65A has a rated output of 66W with dual voltage rails at 5V DC and 12V DC.
$67.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $67.05
2+ $63.86
4+ $59.95
i h

Overview

The Mean Well RD-65A has a rated output of 66W with dual voltage rails at 5V DC and 12V DC. This range of switch mode power supplies offer high efficiency DC power in a compact enclosure. They are designed to be installed within a secondary cabinet as the 240V input terminals are exposed. The mesh casing allows free air cooling without the need for fans (-25° to +70°C working temperature). The low profile casing makes them ideal for mounting into 1RU rack cases.

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced.





Specifications:



Output

DC Voltage: 5V, 12V

Rated Power: 66W

Setup / Rise Time: 500ms / 30ms @ 230VAC

Hold Up Time (Typical): 60ms @ 230VAC



5V Output

Rated Current: 3A

5V Current Range: 0.3-8A

5V Ripple & Noise: 80mV p-p

Voltage Adjust Range: 4.75-5.5V

Voltage Tolerance: ±2.0%

Line Regulation: ±0.5%

Load Regulation: ±0.5%



12V Output

12V Current Range: 0.2-4A

12V Ripple & Noise: 120mV p-p

Voltage Adjust Range: 10.8-13.2V

Voltage Tolerance: ±6.0%

Line Regulation: ±1.5%

Load Regulation: ±3.0%



Input

Voltage Range: 88-264VAC 125-373VDC (Withstand 300VAC surge for 5s. Without damage)

Frequency Range: 47-63Hz

Efficiency (Typical): 79%

AC Current (Typical): 2.0A/115VAC, 1.2A/230VAC

Inrush Current (Typical): Cold Start 40A/230VAC

Leakage Current: <2mA/240VAC



Protection

Overload: 110-150% rated power output

Over Voltage: YES

Protection Type: Hiccup mode, recovers automatically after fault condition is removed



Environment

Working Temperature: -20 - +70ºC

Working Humidity: 20-90% RH non condensing

Temperature Coefficient: ±0.03%/ºC(0-50ºC)

Vibration: 10-500Hz, 5G 10 minutes/1cycle, period for 60 minutes. Each along X,Y,Z, axis

Dimensions: 129L x 97W x 38H mm

Weight: 0.44kg



Features:

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105ºC long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70ºC
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
