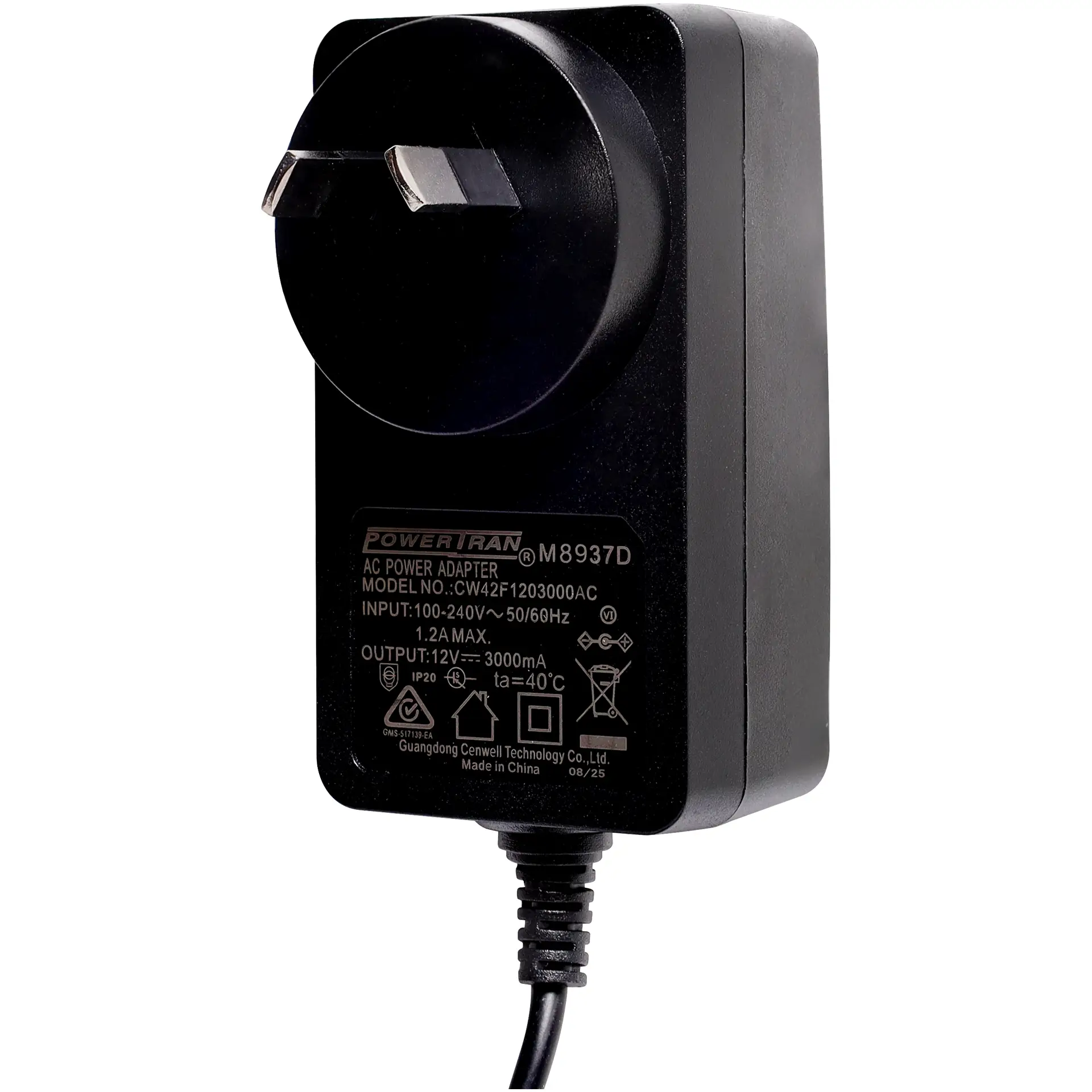

12V DC 3A Appliance Power Supply Adapter

by: Powertran
SKU: M8937D
12V DC Switchmode Plugpack Supplied with fixed 2.1mm DC positive tip. Compact design with high current regulated output. Energy authority approved. MEPS approved. 12VDC @ 3A.
$29.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $29.55
2+ $27.23
4+ $23.91
i h

Overview

12V DC, 3 Amp switch mode plug pack supplied with a fixed positive to tip 2.1mm DC jack (2.1ID x 5.5OD x 10L). Compact design with high current regulated output. Energy authority approved. MEPS approved.

Features

  • Australian Standards Compliant
  • Suitable for a range of electronic devices
  • Compatible with Australian mains power point



Specifications

Input

Rated Input Voltage: 100-240V AC

Operating Range: 90-264V AC

Rated Input Frequency: 50/60Hz

Variation Frequency: 50/60Hz +/- 3Hz

Rated Input Current: 0.8A Max.

Primary Current Protection: An adequate internal fuse on the AC input line is provided

Power Consumption (no loading): 0.1W Max. (Input voltage 115V and 230V)

Configuration: II Conductor

AC Leakage Current: 0.25mA (Max) @ 240V AC input

Output

DC Output Voltage: 12V DC

Minimum Load Current: 0.01A

Rating Load Current: 3A

Rating Output Power: 36W

Line Regulation: The line regulation is less than ±5% while measuring at rated load and +/-10% of input voltage changing.

Load Regulation: The load regulation for +12V is less than ±5%, at measured output load from 0% to 100% rated load

General

Temperature: Operating: 0°C +40°C, Non-Operating: -20°C +80°C

Humidity: Operating: 10%~90% (Non Condensing), Non-Operating: 10%~90% (Non Condensing)

Barrel Length: 10mm

Plug Tip Type: 5.5mm outer diameter and 2.1mm inside diameter

Polarity: Positive centre

Cable Length: 1.8m

MEPS Efficiency Level: VI

Dimensions: 49W x 85H x 42D mm.

Details

Products specifications

Warranty 12 Months
Power
Type AC to DC Power Adapters
Tip 2.1mm Fixed Tip
