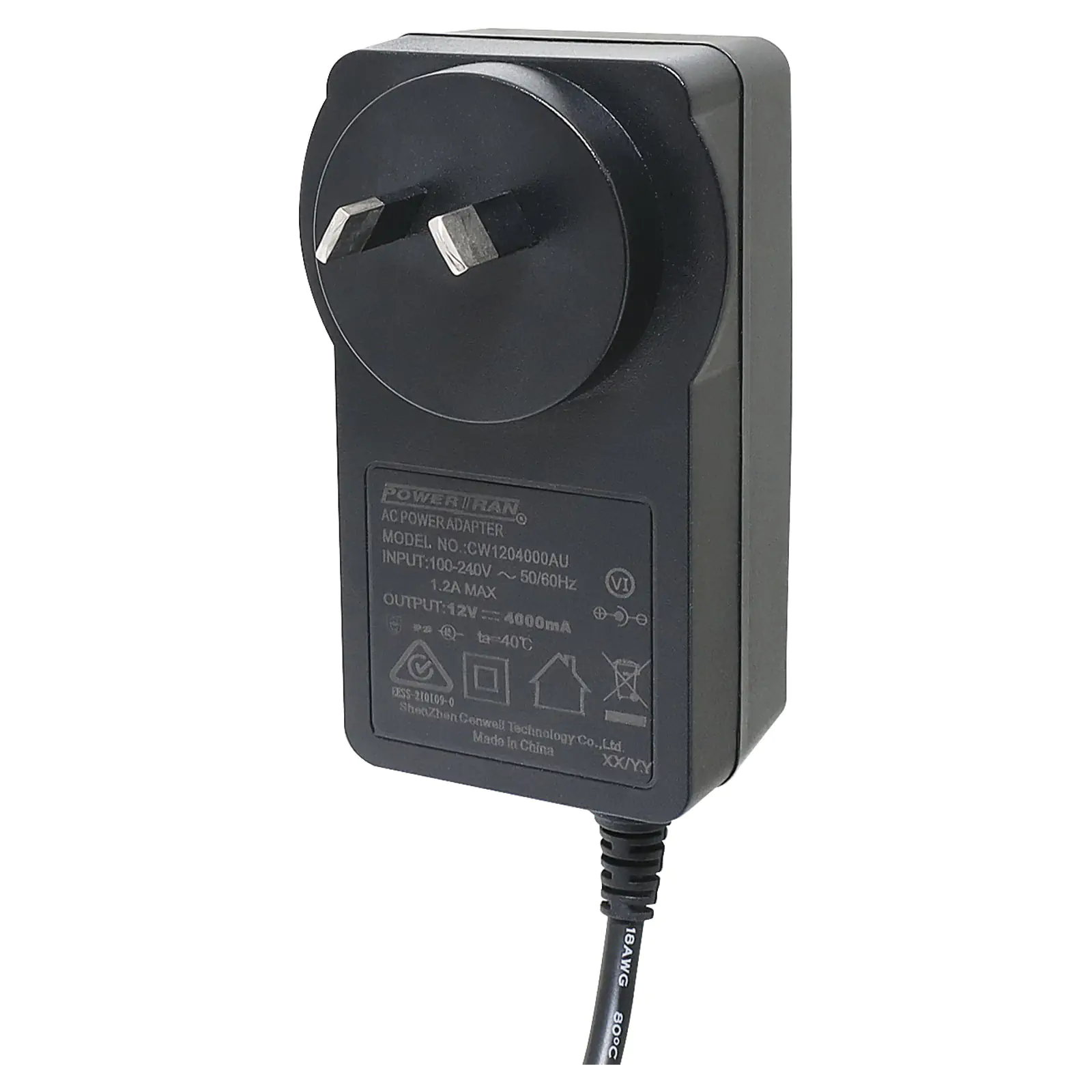

12V DC 4A Appliance Power Supply Adapter

by: Powertran
SKU: M8938B
12V DC 4A Switchmode Plugpack.
$33.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $33.59
2+ $30.45
4+ $27.05
i h

Overview

12V DC, 4 Amp switch mode plug pack supplied with a fixed positive to tip 2.1mm DC jack (2.1ID x 5.5OD x 10L). Compact design with high current regulated output. Energy authority approved. MEPS approved.

Features

  • Australian Standards Compliant
  • Suitable for a range of electronic devices
  • Compatible with Australian mains power point



Specifications

Input

Input Voltage Range: 90V AC to 264V AC

Rated Voltage Range: 100V AC to 240V AC

Input Frequency Range: 47Hz to 63Hz

Rated Input Frequency: 50Hz/60Hz

Input Current: 1.2A max at full load

Inrush Current (cold start): 80A typical peak, 220V AC input



Output

Output Voltage: 12V DC

Output Voltage Limit: 11.4V DC to 12.6V DC

Output Ripple & Noise: =200

Output Current: 4000mA



General

Operating Temperature: 0°C to 40°C, full load, normal operation.

Storage Temperature: -40°C to +85°C.

Relative Humidity: 5% (0°C) ~95% (40°C), 72 hours, full load, normal operation.

Barrel Length: 10mm

Plug Tip Type: 5.5mm outer diameter and 2.1mm inside diameter

Polarity: Positive centre

Cable Length: 1.8m

MEPS Efficiency Level: V

Dimensions: 40W x 61H x 44D mm.

Details

Products specifications

Warranty 12 Months
Power
Type AC to DC Power Adapters
Tip 2.1mm Fixed Tip

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
