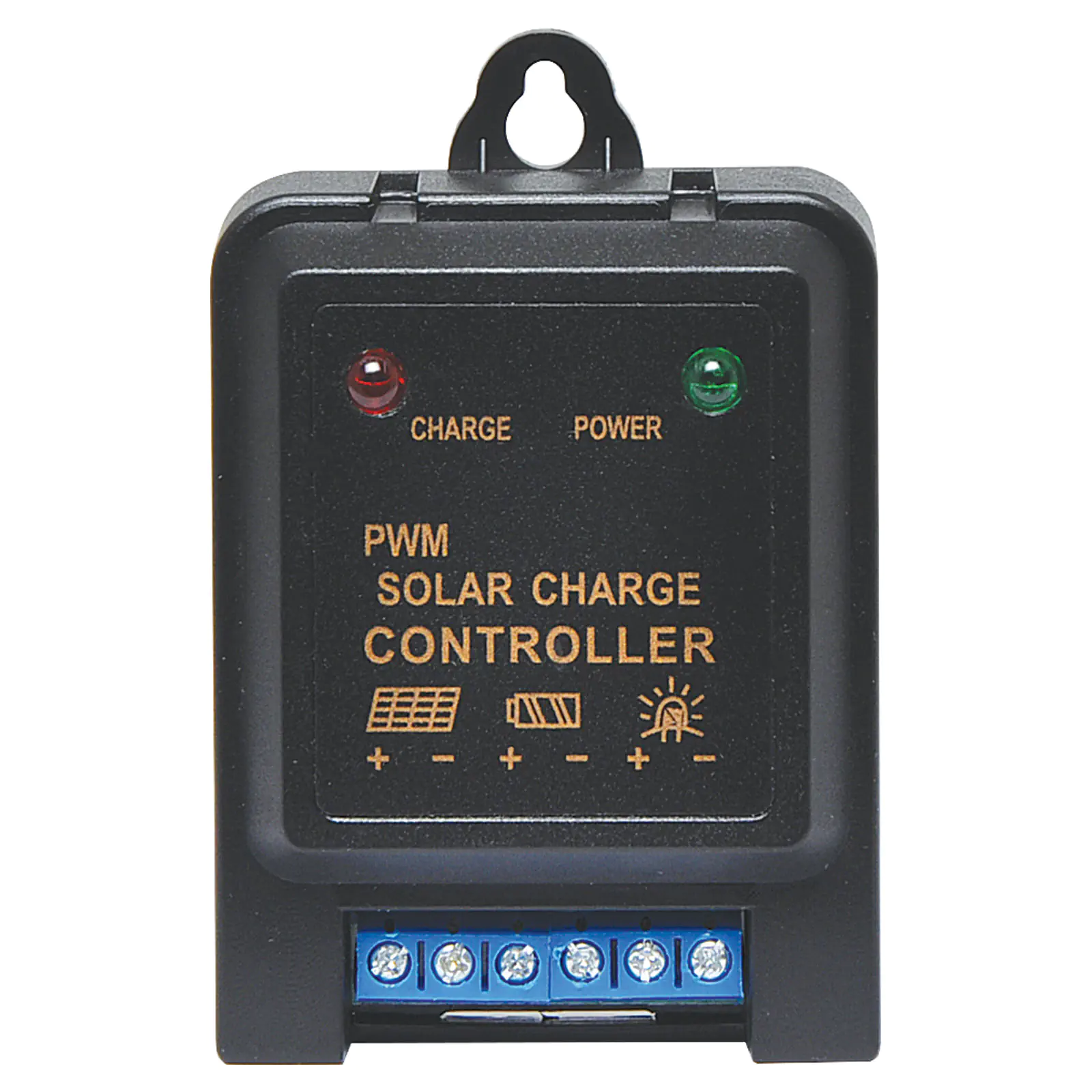

12V 3A PWM Solar Charge Controller

by: Powerhouse
SKU: N2003
An ultra compact PWM solar charge controller for compact solar power systems using panels 40 Watts or less.
$22.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $22.27
2+ $19.95
4+ $18.14
i h

Overview

An ultra compact PWM solar charge controller for compact solar power systems using panels 40 Watts or less. The internal circuitry provides protection against several conditions which can potentially damage your battery or the controller itself. These include over charge, over discharge, over current, reverse polarity and short circuits (when used with a 3A protection fuse).

Please Note: We recommend using this with a maximum 40 Watt solar panel.





Specifications:



Rated voltage: 12V

Charging voltage: 14.8V

Equilibrium voltage: 14.5V

Float charge voltage: 13.7V

Under voltage: 10.8V

Under recover voltage: 13V

Non-load current: =6mA

Charging circuit voltage drop: =0.2V

Discharge circuit voltage drop: =0.1V

Max charging current: 5A

Max load current: 5A

Controller protection: Over-charge, over-discharge, over-current, short circuit (when fused), reverse polarity

Charge mode: PWM

IP rating: IP22

Dimensions: 52W x 22H x 80D

Operating Temperature: -20°C - 55°C

Weight: ≈ 30g



Features:

  • Suits 12V systems only
  • Adjustable run time for connected load or “always on” configuration
  • Overcharge, discharge, over current, short circuit (with recommended 3A fuse) and reverse polarity protection.
  • Three stage PWM charge control
