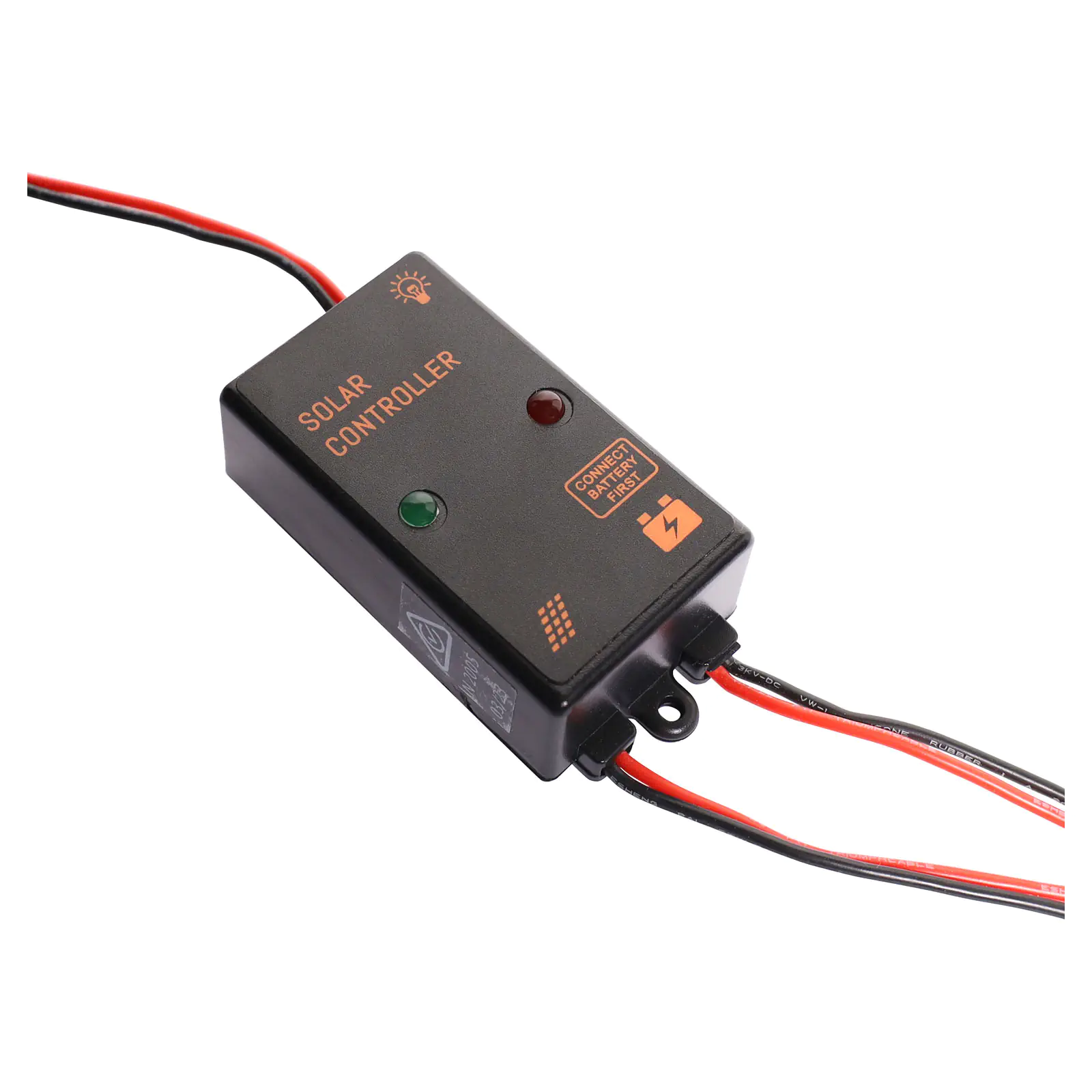

6V/12V 5A PWM Waterproof Solar Charge Controller

SKU: N2005
This compact PWM solar charge controller is ideal for 6V & 12V battery systems and provides a max charge current up to 5A (suits solar panels up to 60W).
$31.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $31.77
4+ $28.64
6+ $25.41
i h

Overview

This compact PWM solar charge controller is ideal for 6V & 12V battery systems and provides a max charge current up to 5A (suits solar panels up to 60W). The entire PCB assembly is housed in an epoxy filled housing measuring just 80Wx37Dx22Hmm. The internal circuitry provides protection against several conditions which can potentially damage your battery or the controller itself. These include over charge, over discharge, over current, reverse polarity and short circuits (when used with a 5A protection fuse).





Specifications:



Waterproof IP67

Rated Voltage:DC 6V/12V

Max input VOC: 11V(6V) / 22V(12V)

Max Current: 5A

Voltage of solar panels: 30W (5A,6V)/60W (5A,12v)

Float: 13.8V

Charge reconnect: 6.5V (6V) / 13V (12V)

Discharge stop: 5.6V(6V) / 11.2V(12V)

Discharge reconnect: 6.3V(6V) / 12.6V(12V)

Working Temp:-10- +40°

Weight: 80g

Dimensions: 8L x 3.7W x 2.2Hcm

Details

Products specifications

Warranty 12 Months
Car, Caravan & 4WD
Type PWM Controllers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
