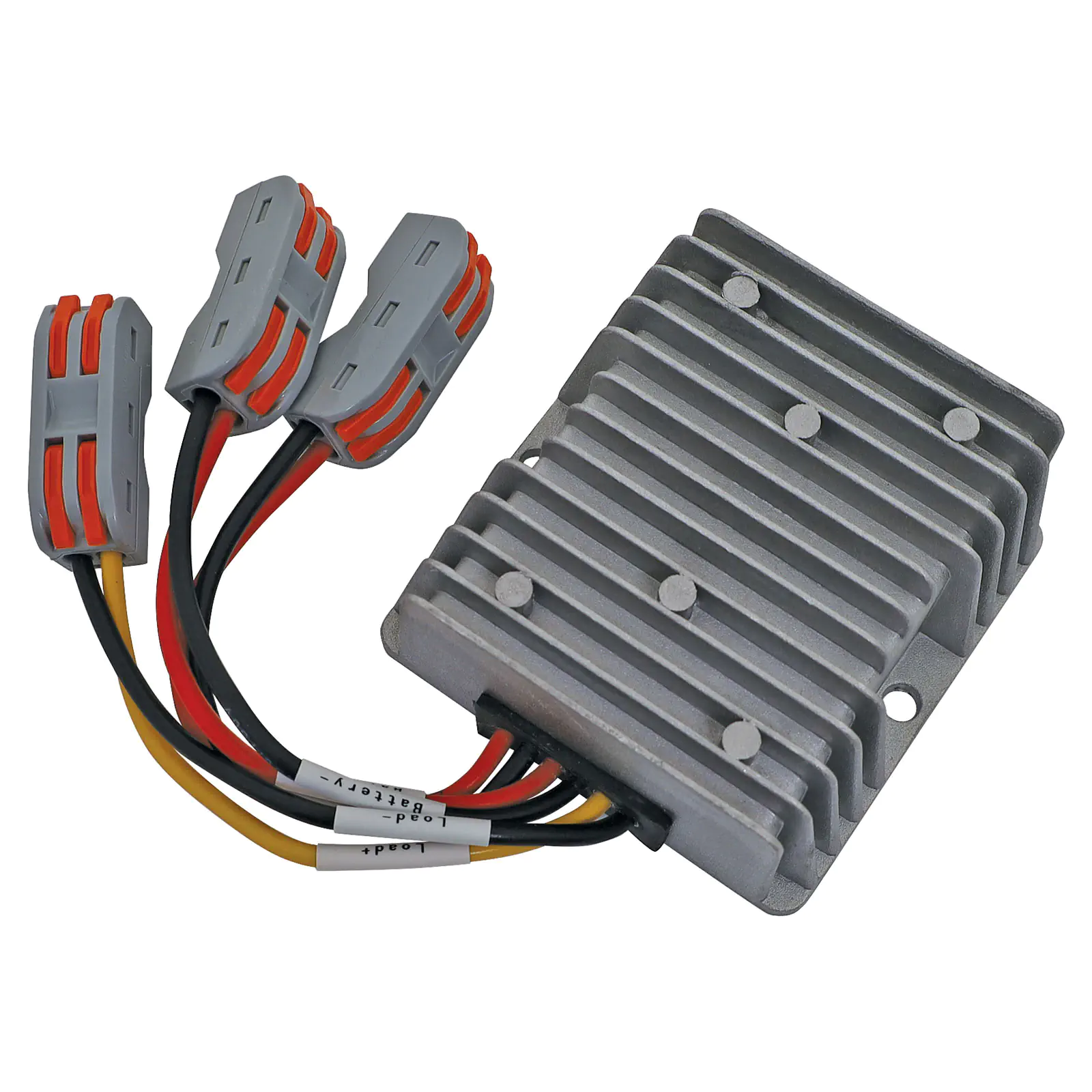

Sealed MPPT 20A 12V Solar Charge Controller

by: Powerhouse
SKU: N2016
This compact IP67 weatherproof module provides MPPT solar charging for lead acid batteries. Maximum Power Point Tracking (MPPT) circuitry to provide up to 20% additional charge energy than conventional regulators.
$72.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $72.68
4+ $65.41
6+ $58.14
i h

Overview

This compact IP67 weatherproof module provides MPPT solar charging for lead acid batteries. Maximum Power Point Tracking (MPPT) circuitry to provide up to 20% additional charge energy than conventional regulators. This essentially allows you to get more power from your existing panels, or alternatively reduce the overall required panel wattage for new systems. Ideally suited for vehicle power systems, ticketing infrastructure and other remote power requirements. Includes a host of protection features for safe and reliable operation. Dimensions:74W x 74D x 32Hmm





Specifications:



Max charge/load current: 20A

Output power: 300W

No load current: <10mA

Max solar input voltage: 20-50V

Low voltage disconnect (12V): 10.5V

Dimensions (mm): 74W x 74D x 32Hmm



Features:

  • Utilises Maximum Power Point Tracking (MPPT) circuitry
  • Suitable for lead acid batteries
  • Over temperature & short circuit protection
  • Under input voltage shutdown
  • Battery under voltage shutdown
  • Fully sealed IP67 rated design
  • Suits 12V battery systems

Details

Products specifications

Warranty 12 Months
Car, Caravan & 4WD
Type MPPT Controllers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
