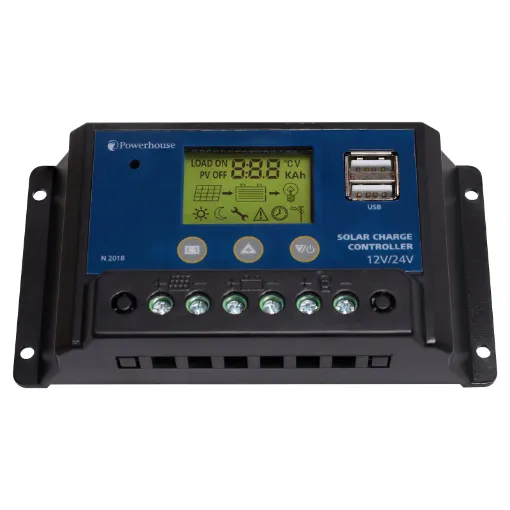

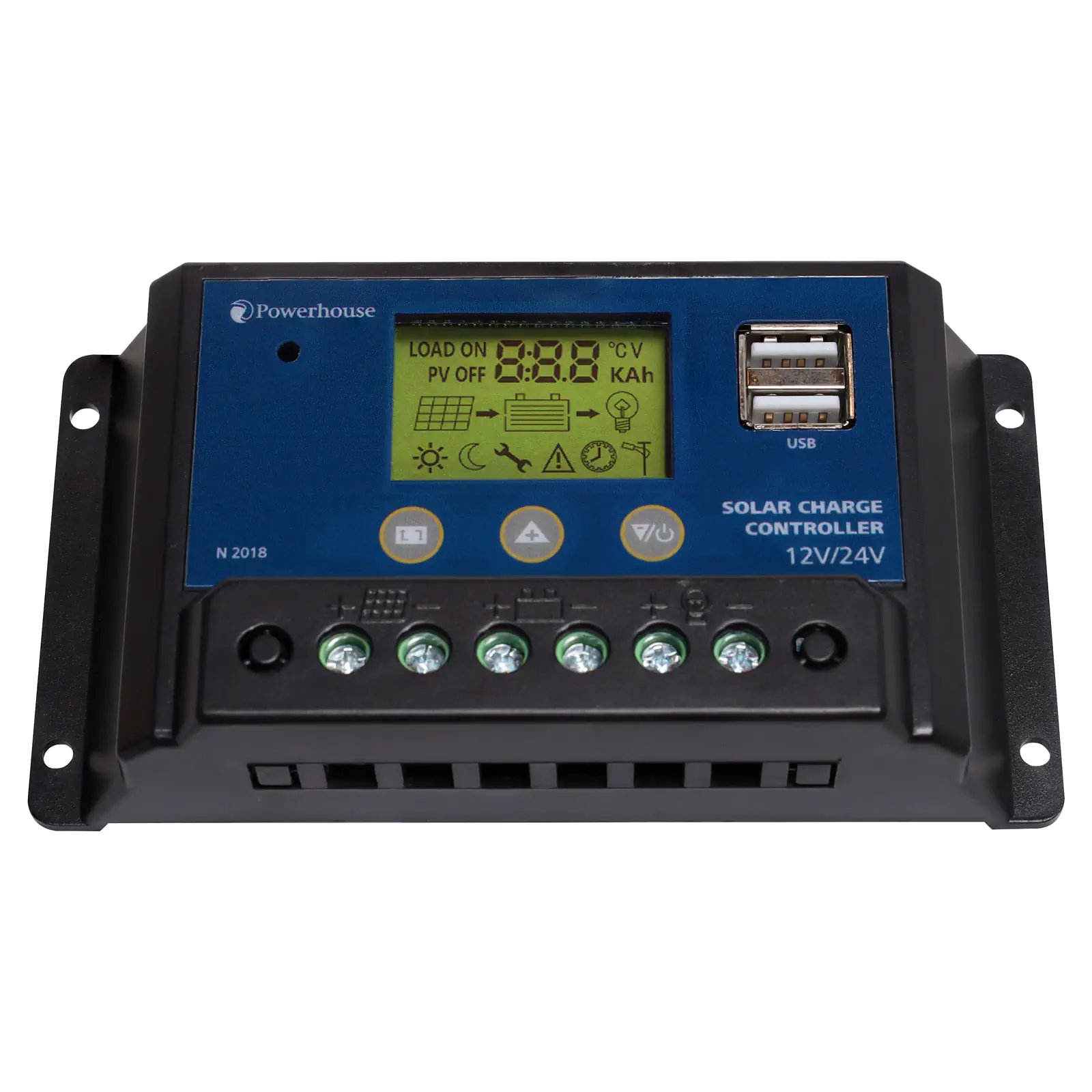

12/24V 20A PWM Solar Charge Controller With USB

SKU: N2018
Featuring intelligent charge control, adjustable parameters, LCD screen and USB charging outputs this solar regulator represents outstanding value for under $100. It is suitable for permanent installations of lead acid and gel battery solar panel systems. The LCD allows for easy selection of charging parameters such as PV switch off voltage, load switch on voltage, low voltage disconnect and night mode run time.
$51.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $51.77
2+ $46.59
4+ $41.59
i h

Overview

Featuring intelligent charge control, adjustable parameters, LCD screen and USB charging outputs this solar regulator represents outstanding value. It is suitable for permanent installations of lead acid and gel battery solar panel systems. The LCD allows for easy selection of charging parameters such as PV switch off voltage, load switch on voltage, low voltage disconnect and night mode run time. Suitable for 12V or 24V systems, the charger automatically detects the connected battery voltage.





Specifications:



Max charge/load current 20A

12V low voltage disconnect 10.5V

24V low voltage disconnect 21V

No load current: <10mA

Max solar input voltage <50V

Terminal wire size 10AWG

Dimensions (mm) 133 x 71 x 34



Features:

  • Suits lead acid or gel battery systems
  • USB 2A charging output
  • Automatic fuse protection
  • Adjustable night load mode
  • Adjustable battery charging/discharging voltages
  • Automatic 12/24V voltage selection
  • Reverse polarity protection
  • Short circuit and overload protection
  • Over temperature protection

Details

Products specifications

Warranty 12 Months
Car, Caravan & 4WD
Type PWM Controllers
