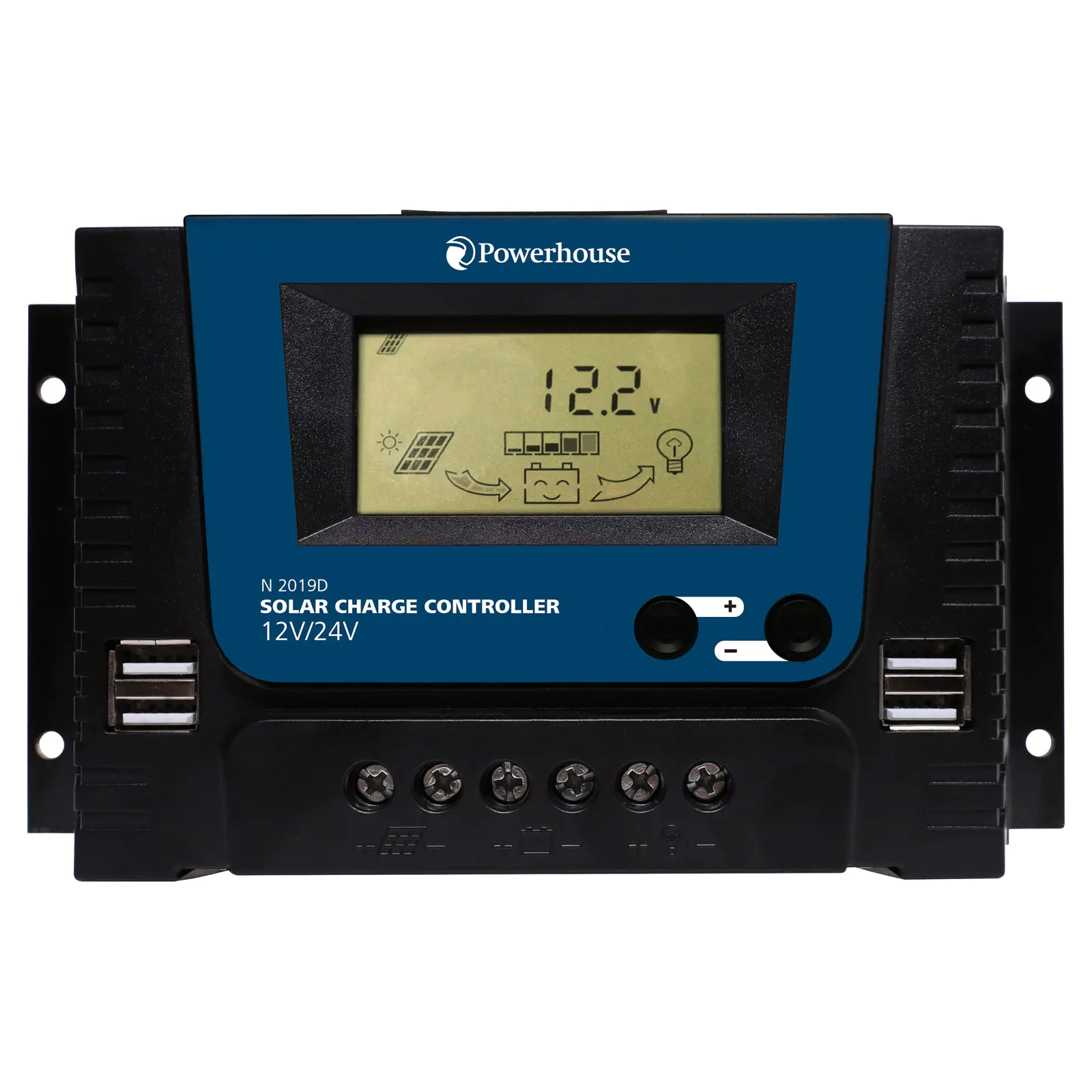

12/24V 30A PWM Solar Charge Controller With USB

by: Powerhouse
SKU: N2019D
Suitable for permanent installations of lead acid, gel battery and lithium chemistry (including Li-NiCoMn & LiFePO4) solar panel systems.
$70.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $70.45
2+ $63.41
4+ $56.36
i h

Overview

Suitable for permanent installations of lead acid, gel battery and lithium chemistry (including Li-NiCoMn & LiFePO4) solar panel systems. LCD is provided to indicate working status - solar charge ON, load ON and battery level. Suitable for 12V or 24V systems, the charger automatically detects the connected battery voltage. Ideally suited to vehicles and simple remote power systems such as pumping stations, electric fences, remote lighting, marine applications etc.

Warning: Do not set up using a common earth wiring configuration. Cabling should be as per the user manual with both positive and negative of battery, solar panel, and load each wired straight to the solar regulator with appropriately rated fuses. Failing this will damage the controller, battery or connected load.





Specifications:



Technical

Max charge/load current: 30A

No load current: <30mA

Max solar input voltage: <100V

Terminal wire size: 6AWG



Lead Acid

12V low voltage disconnect: 10.7V

24V low voltage disconnect: 21.4V



Li-NiCoMn

12V low voltage disconnect: 9V

24V low voltage disconnect: 18V



LiFePO4

12V low voltage disconnect: 11.2V

24V low voltage disconnect: 22.4V



Features:

  • Suits lead acid type batteries
  • Suits lithium chemistry batteries, including Li-NiCoMn & LiFePO4.
  • Adjustable daytime start, night off mode
  • Auto battery identification
  • Intelligent PWM charging
  • Temperature compensation
  • USB 2A charger (4 ports)
  • Overload, reverse polarity, reverse discharge, over heat, under voltage protections

Details

Products specifications

Warranty 12 Months
Car, Caravan & 4WD
Type PWM Controllers
