This 40A DC to DC battery charger with MPPT solar charger has been designed for in-vehicle use where auxiliary batteries are required to be charged from solar panels or the vehicles main battery.

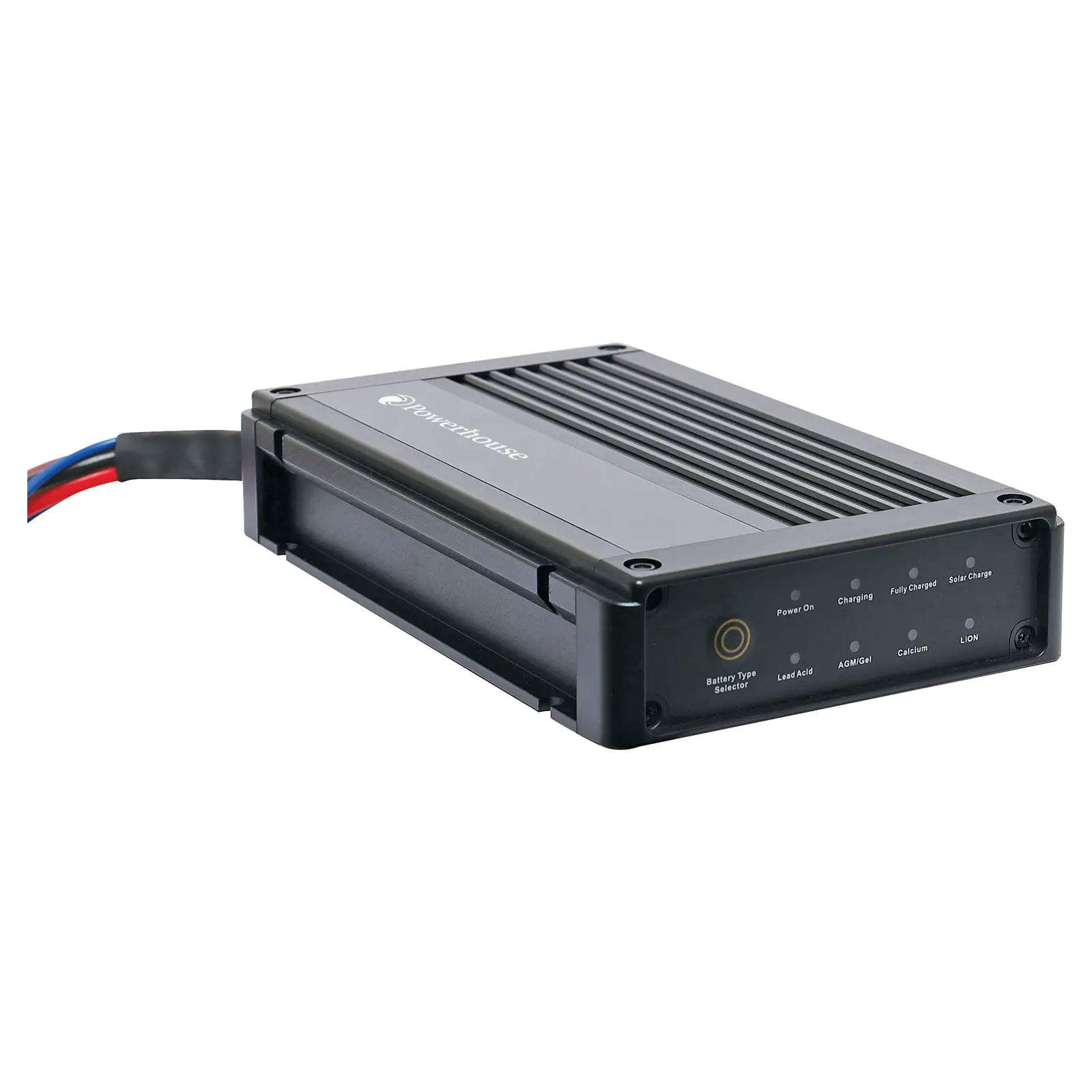

40A DC To DC Dual Battery Charger With MPPT Solar Input

Name: 40A DC To DC Dual Battery Charger With MPPT Solar Input
SKU: N2089A
Price: 222.73 AUD
Availability: InStock

by: Powerhouse

SKU: N2089A

Save $90.91 $222.73 ~~$313.64~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$222.73 $313.64
2+	$222.73 $281.82
4+	$222.73 $250.00

i h

Overview
Details
Warranty
Downloads

Overview

This 40A DC to DC battery charger with MPPT solar charger has been designed for in-vehicle use where auxiliary batteries are required to be charged from solar panels or the vehicles main battery. The charger offers fully automatic, set-and-forget operation, isolating the main vehicle battery when the engine is off, preventing discharge so you can still start your vehicle when required. It provides multi-stage charging for lead acid, AGM/Gel, Calcium, LiON and LiFePO4 battery types. The in-built MPPT solar charge controller accepts PV solar panels with an output voltage range of 16-25V (minimum panel size 100W).

Please note: These chargers feature a battery chemistry type lockout feature that prevents changes while the auxiliary battery is connected.

Specifications:

General:

Type: Multi Stage

DC Battery Input: 12.5-16.0V

Solar Input: 16.0-25.0V

Output/Charging Voltage: 14.4 - 15.4 V (stops charging when alternator output or vehicle battery below 12.5V)

DC Output Current: 40A

Solar Output Current: 40A

Minimum Start Voltage: 2.5V - for battery being charged

Minimum Solar PV Panel Size: 100W

Charge Control:

Soft Start: Yes

Soft Charge Current: 40A

Bulk Charge Voltage: 14.7V (AGM/Gel), 13.5V (Lead Acid), 15.4V (Calcium), 14.4V (LiON)

Absorption: Constant voltage with automatic amperage control

Float Charge Voltage: 13.5V (AGM/Gel), 14.4V (Lead Acid), 13.5V (Calcium)

Float Charge Current: 100mA

Battery Range: 60-500Ah

Recommended Cable Cross-Section:

0-1 metres: 8AWG

1-5 metres: 6AWG

5+: 4AWG

Features:

Heavy duty aluminium case and mounting bracket
Microchip monitoring and control
Fully automatic high frequency multi stage charging
MPPT solar regulator input
Compatible with vehicles fitted with smart alternators
Pulse mode technology that reduces oxidation, evens electrolyte consistency and minimises temperature equating to longer battery life
Easy push button chemistry select: AGM/Gel, Calcium, LiON, Deep Cycle, VRLA and conventional flooded Lead-Acid batteries
Internal charger temperature monitoring and power output control
LED indicators showing state of charge
Over charging, short circuit and over temperature protection
Reverse polarity protection: Input reverse polarity protection and Output reverse polarity protection
Thermal overload protection
Solar input overload protection
Power cut memory function; once selected, the charger will remain on this battery type until it is changed
