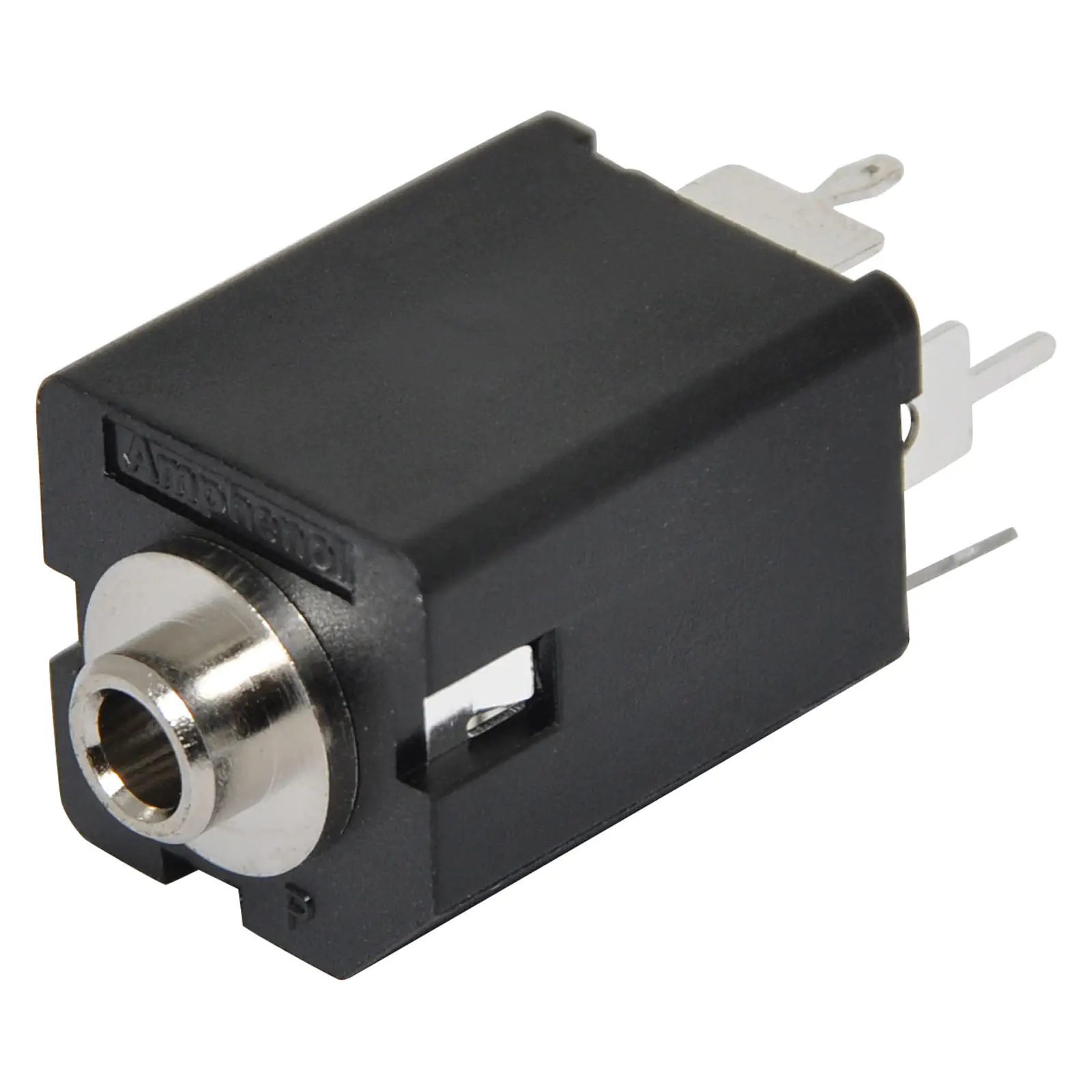

3.5mm Stereo PCB Jack Socket

by: Amphenol
SKU: P0089
3.5mm Stereo PCB Jack Socket
$1.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.77
10+ $1.59
50+ $1.36
i h

Overview

3.5mm Stereo PCB Jack Socket





Specifications:



General Characteristics

Number of Contacts: 2 Pole (Mono), 3 Pole Tip Ring Sleeve (Stereo)

Termination: Solder, PCB or Combo

Flammability rating of insulating plastics: UL94V-0

Solder ability, complies with: IEC 68-2-20

Environmental: Complies with EU RoHS 2 Directive 2011/65/EU



Electrical Characteristics

Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)

Typical Contact Resistance: =10mΩ

Insulation resistance (initial) After Damp Heat Test: >2GΩ =103 Meg Ω

Rated Voltage: Test Voltage AC RMS: Dielectric Strength: 34V, 500V



Climatic Characteristics

Protection Class: IP40

Operating Temperature: -25°C to +70°C



Mechanical Characteristics

Insertion and Withdrawal Force: =10N - =30N

Mating Cycles: Min. of 1000 cycles without any physical damage

Weight: Straight (18g), Right Angle (25g)



Materials

Connector Shell Material: Nylon PA66 30% Glass Filled

Insulators: UL94 V-0 PBT Resin or Modified PPE Resin and fibreglass laminate

Metal Nut: Brass

Plastic Nut: Nylon PA66 30% Glass Filled

Washer: Fiber / Brass / Nylon PA66 30% Glass Filled

Contact Plating: Tin - 4µm Min. over 2µm Min.Cu (Copper) Silver - 0.3µm Min. over 2µm Min.Cu (Copper) Nickel - 2µm Min. over 2µm Min.Cu (Copper) Gold Flash - 0.05µm Min. over 2µm Min.Cu (Copper)

Contacts: Brass / Sn (Tin) over Cu (Copper)

Details

Products specifications

Warranty 12 Months
Connectors
Type 3.5mm Jack Connectors
Gender Sockets
