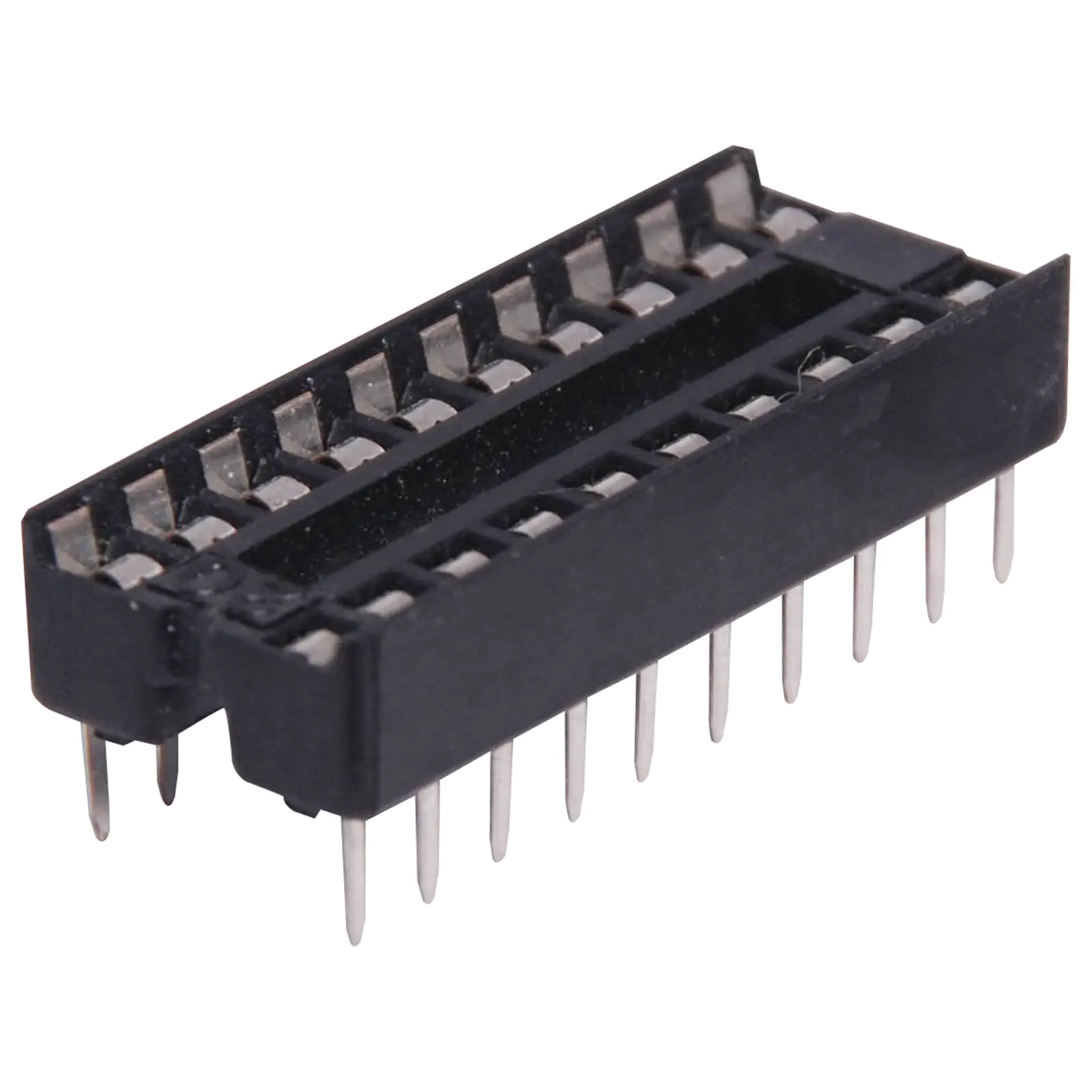

20 Pin (0.3") DIL Tinned IC Socket

by: Oupiin
SKU: P0568
Quality Oupiin brand 8003 series, 20 pin DIL IC socket with dual wipe and tin plated phosphor bronce contacts. Standard 2.54mm (0.1") pin spacing, 7.62 (0.3") pitch.
$0.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $0.55
10+ $0.50
25+ $0.36
i h

Overview

Quality Oupiin brand 8003 series, 20 pin DIL IC socket with dual wipe and tin plated phosphor bronce contacts. Standard 2.54mm (0.1") pin spacing, 7.62 (0.3") pitch.



Dimensions:

A: 25.4

B: 22.86

C: 10.16

D: 7.62





Specifications:



Contact Resistance: 30M Ohms Max @ DC 100mA

Insulation Resistance: 1000M Ohms Min @ DC 250V

Current Rating: 1 Amp

Dielectric Voltage: AC 500V for 1 Minute

Operating Temp: -55° to 105° C

Gold Plated Beryllium Copper Contacts

Details

Products specifications

Warranty 12 Months
Connectors
Type Dual Wipe IC Sockets
