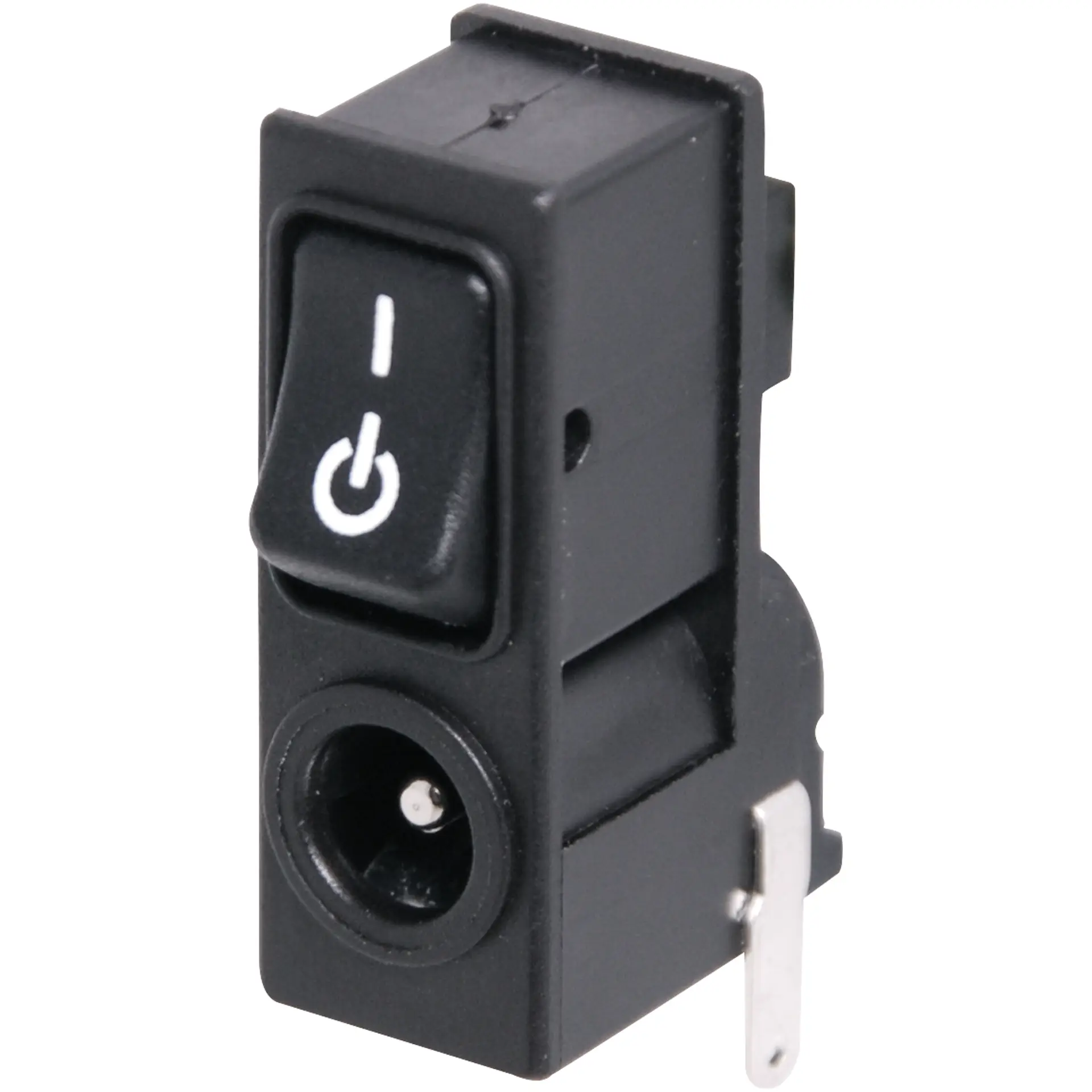

2.1mm DC Power PCB Socket with Switch

SKU: P0639A
DC power socket with switch. 2.1mm pitch. PCB mount type. 12V DC, 3.8A rated.
$6.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.23
10+ $5.73
50+ $4.95
i h

Overview

DC power socket with switch. 2.1mm pitch. PCB mount type. 12V DC, 3.8A rated.





Specifications:



Electrical rating: DC12V 3.8A

Contact resistance: <20mΩ (initial)

Insulation resistance: >100MΩ; (500V DC between open contacts)

Dielectric strength: >1500V 1 minute

Electrical life: 6000cycles

Temperature rise at terminal: Max 30ºC

Solderability of terminal: 350ºMax. 3 seconds ( no pressure may be placed on terminals when soldering by hand)

Details

Products specifications

Warranty 12 Months
Connectors
Type DC Power Sockets
