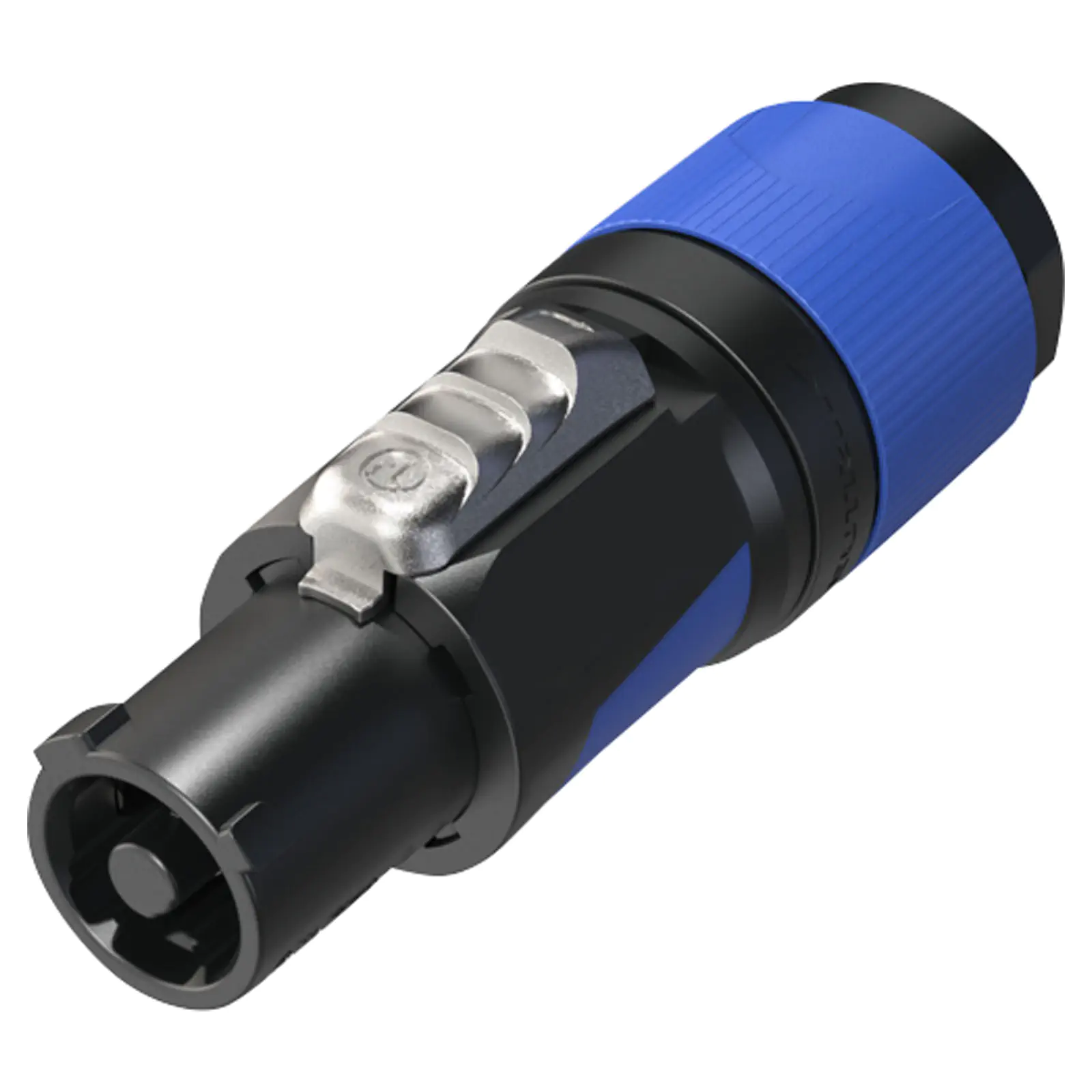

Powercon Line Socket 240V Mains 16A NAC3FXXA-W-S

Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. NAC3FXXA-W-S. SAA approved.

Specifications:

Electrical

Contact resistance: = 2 mΩ

Dielectric strength: > 3 kVac (after mating cycles)

Insulation resistance: > 10 GΩ (initially)

Number of electrical contacts: 2 + PE

Rating Europe: EN 60320-1: 16 A 250 V AC, CBC

Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, CBC

Mechanical

Cable O.D.: 6 - 12 mm

Lifetime: Typically 5000 mating cycles

Wire size (mm²): 1.5 – 2.5 mm²

Wire size (AWG): 16 – 12 AWG

Locking device: Twist lock

Termination: Screw type terminals

Material

Contact plating: Ag

Contacts: Copper Alloy

Insert: Polyamide (PA6.6)

Locking Element: Zinc diecast

Shell: Polyamide (PA6) / TPE

Strain relief: Polyketone

Bushing: Polypropylene / TPE

Environmental

Temperature range: -33 °C to +80 °C

Protection class: IP20

Flammability acc. to UL94: V-0

Features:

• IEC EN 60320-1 / UL 60320-1 / CSA  C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
• Ergonomic design with slip-proof two-component moulded housing
• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• Superior NEUTRIK quality standard, extremely robust and reliable
• Easy and reliable twist lock system
• Improved kink protection by two-component bushing

When connecting to mains power this must be installed by a licensed electrician.

To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.
