3 Pin Female Line XLR NC3FXX

by: Neutrik
SKU: P0840
Neutrik NC3FXX 3 Pin Line XLR female connector. Neutrik connectors are made from rugged diecast aluminium and are designed to be compact yet stand up to the rigours of everyday use.
$11.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $11.59
10+ $11.14
40+ $10.68
i h

Overview

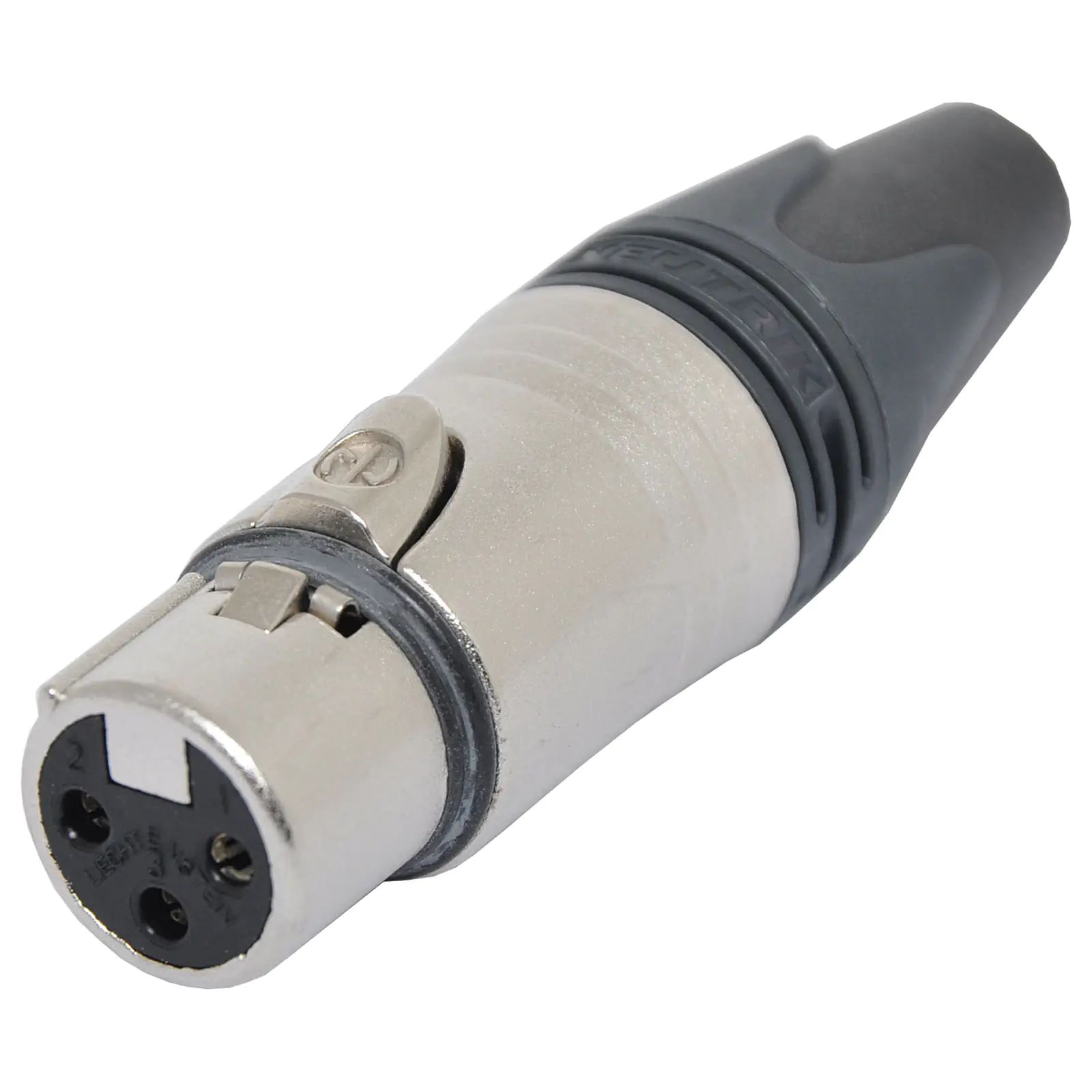

Neutrik NC3FXX 3 Pin Line XLR female connector with silver finish. Neutrik connectors are made from rugged die cast aluminium and are designed to be compact yet stand up to the rigours of everyday use. Connector assembly is designed to be as simple as possible, saving you time when making cables.





Specifications:



Electrical

Capacitance between contacts: = 4 pF

Contact resistance: = 3 mΩ (inner)

Dielectric strength: 1,5 kVdc

Insulation resistance: > 10 GΩ (initial)

Rated current per contact: 16A

Rated voltage: < 50V



Mechanical

Cable O.D.: 3.5 - 8.0 mm

Insertion force: = 20 N

Withdrawal force: = 20 N

Lifetime: > 1000 mating cycles

Wire size max.: 2.5 mm² (14 AWG)

Locking device: Latch lock



Material

Boot: Polyurethane

Contact plating: 2 µm Ag

Contacts: Bronze (CuSn8)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: Zinc die cast (ZnAl4Cu1) / Ck 67 (spring)

Shell: Zinc die cast (ZnAl4Cu1)

Shell plating: Nickel

Strain relief: Polyacetal (POM)



Environmental

Flammability: UL 94 HB

Standard compliance: IEC 61076-2-103

Protection class: IP 40

Solderability: Complies with IEC 68-2-20

Temperature range: -30 °C to +80 °C



Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc die cast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage
