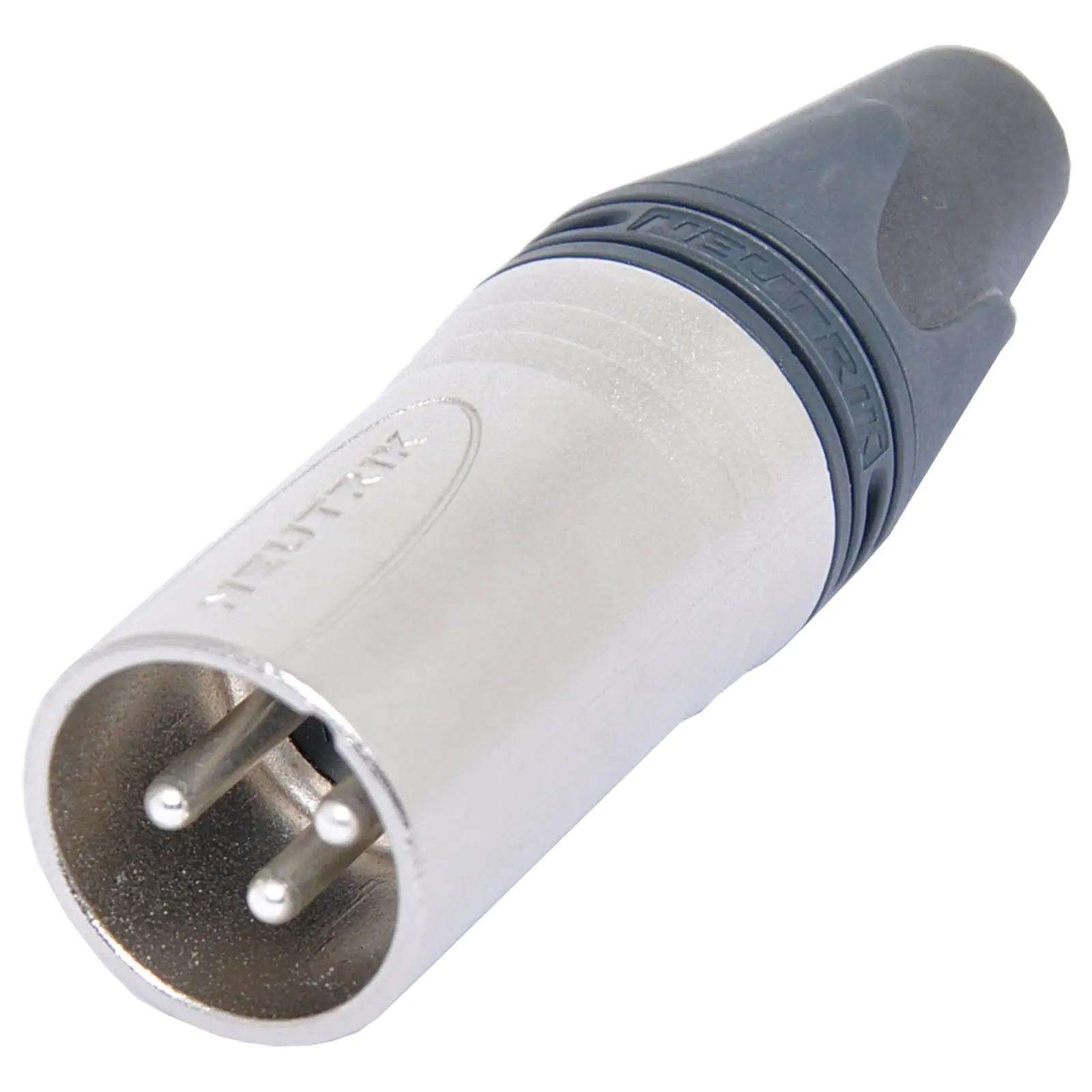

3 Pin Male Line XLR NC3MXX

by: Neutrik
SKU: P0842
Neutrik 3 Pin Line XLR male connector. Neutrik connectors are made from rugged diecast aluminium and are designed to be compact yet stand up to the rigours of everyday use. Connector assembly is designed to be as simple as possible, saving you time when making cables.
$10.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $10.86
10+ $10.45
40+ $9.55
i h

Overview

Neutrik NC3MXX 3 Pin Line XLR male connector with silver finish. Neutrik connectors are made from rugged die cast aluminium and are designed to be compact yet stand up to the rigours of everyday use. Connector assembly is designed to be as simple as possible, saving you time when making cables.







Specifications:



Electrical

Capacitance between contacts: = 4 pF

Contact resistance: = 3 mΩ (inner)

Dielectric strength: 1,5 kVdc

Insulation resistance: >10 GΩ (initial)

Rated current per contact: 16A

Rated voltage: < 50V



Mechanical

Cable O.D.: 3.5 - 8.0 mm

Insertion force: = 20 N

Withdrawal force: = 20 N

Lifetime: >1000 mating cycles

Wire size max.: 2.5 mm² (14AWG)

Wiring: Solder contacts

Locking device: Latch lock



Material

Boot: Polyurethane

Contact plating: 2 µm Ag

Contacts: Brass (CuZn39Pb3)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: Zinc die cast (ZnAl4Cu1)

Shell: Zinc die cast (ZnAl4Cu1)

Shell plating: Nickel

Strain relief: Polyacetal (POM)



Environmental

Flammability: UL 94 HB

Standard compliance: IEC 61076-2-103

Protection class: IP 40

Solderability: Complies with IEC 68-2-20

Temperature range: -30 °C to +80 °C



Features:

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc die cast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage
