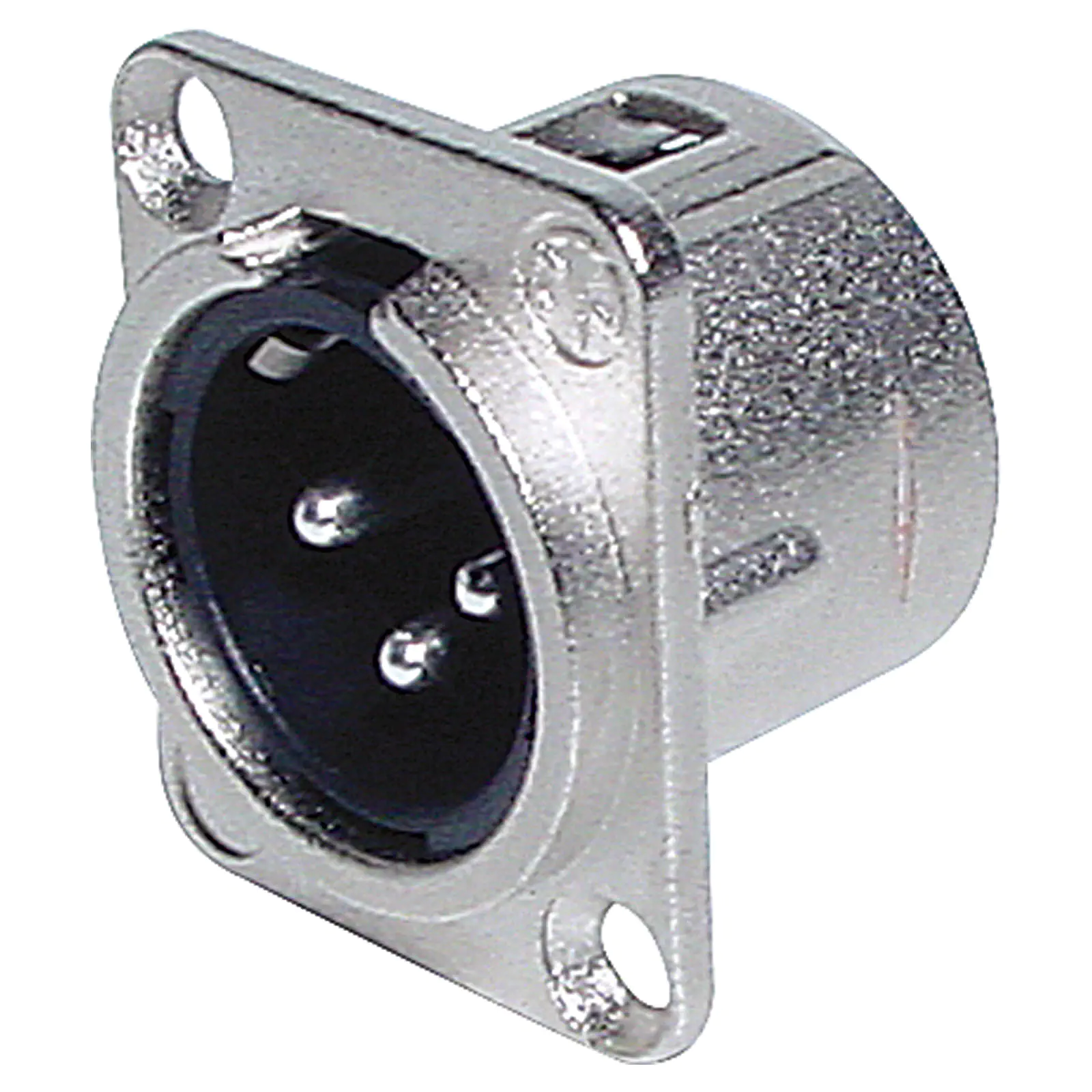

Neutrik NC3MD-L-1 3 Pin Male XLR Chassis Mount

by: Neutrik
SKU: P0852
Neutrik NC3MD-L-1 3 Pin XLR male panel mount connector. Neutrik connectors are made from rugged diecast aluminium and are designed to be compact yet stand up to the rigours of everyday use. Fitted with threaded M3 mounting
$12.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $12.27
10+ $10.91
40+ $10.23
i h

Overview

Neutrik NC3MD-L-1 3 Pin XLR male panel mount connector. Neutrik connectors are made from rugged diecast aluminium and are designed to be compact yet stand up to the rigours of everyday use. RF shielding via 3 point contact to shell. Fitted with threaded M3 mounting







Specifications:



Electrical

Capacitance between contacts; ≤ 4 pF

Contact resistance; ≤ 5 mΩ (inner)

Dielectric strength: 1,5 kVdc

Insulation resistance: > 10 GΩ (initial)

Rated current per contact: 16 A

Rated voltage: < 50 V



Mechanical

Insertion force: ≤ 20 N

Withdrawal force: ≤ 20 N

Lifetime: > 1000 mating cycles

Wiring: Solder contacts

Locking device: Latch lock

Mounting direction: front

Chassis shape: D



Material

Contact plating: 2 µm Ag over 2 µm Ni

Contacts: Brass (CuZn35Pb2)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: Steel Ck67

Shell: Zinc diecast (ZnAl4Cu1)

Shell plating: Nickel



Environmental

Approvals: UL

Flammability: UL 94 HB

Standard compliance: IEC 61076-2-103

Protection class: IP 40

Solderability: Complies with IEC 68-2-20

Temperature range: -30 °C to +80 °C



Features:

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version
