3 Pin Female Line XLR 90 Deg. NC3FRX

by: Neutrik
SKU: P0860
Cable entry angle can be varied 180. Strain relief secures cable from 3 to 6mm. Once connected body extends only 30mm.
$21.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $21.77
4+ $19.54
10+ $18.18
i h

Overview

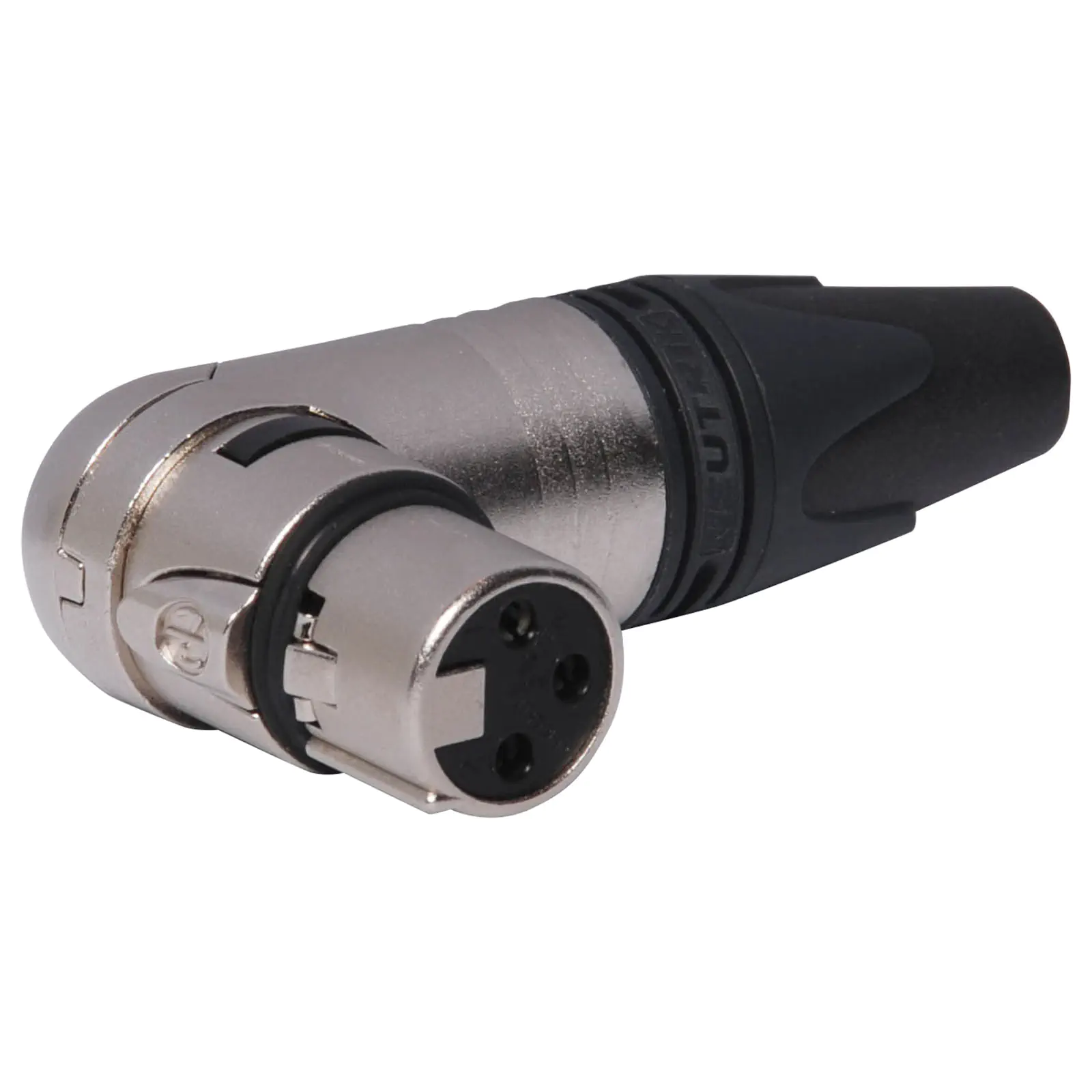

Neutrik NC3FRX with silver finish. Cable entry angle can be varied 180°. Strain relief secures cable from 3 to 6mm. Once connected body extends only 30mm.





Specifications:



Electrical

Capacitance between contacts: ≤ 4 pF

Contact resistance: ≤ 3 mΩ (inner)

Dielectric strength: 1,5 kVdc

Insulation resistance: > 2 GΩ (initial)

Rated current per contact: 16 A

Rated voltage: < 50 V



Mechanical

Cable O.D.: 3.5 - 8.0 mm

Insertion force: ≤ 20 N

Withdrawal force: ≤ 20 N

Lifetime: > 1000 mating cycles

Wire size max.: 2.5 mm²

Wire size max.: 14 AWG

Wiring: Solder contacts



Material

Boot: Polyurethane

Contact plating: 2 µm Ag

Contacts: Bronze (CuSn8)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)

Shell: Zinc diecast (ZnAl4Cu1)

Shell plating: Nickel

Strain relief: Polyacetal (POM)



Environmental

Flammability: UL 94 HB

Standard compliance: IEC 61076-2-103

Protection class: IP 40

Solderability: Complies with IEC 68-2-20

Temperature range: -30 °C to +80 °C



Features:

  • Extra slim right-angle connector
  • 5 selectable cable outlet positions
  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy

Details

Products specifications

Warranty 12 Months
Connectors
Gender Sockets

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
