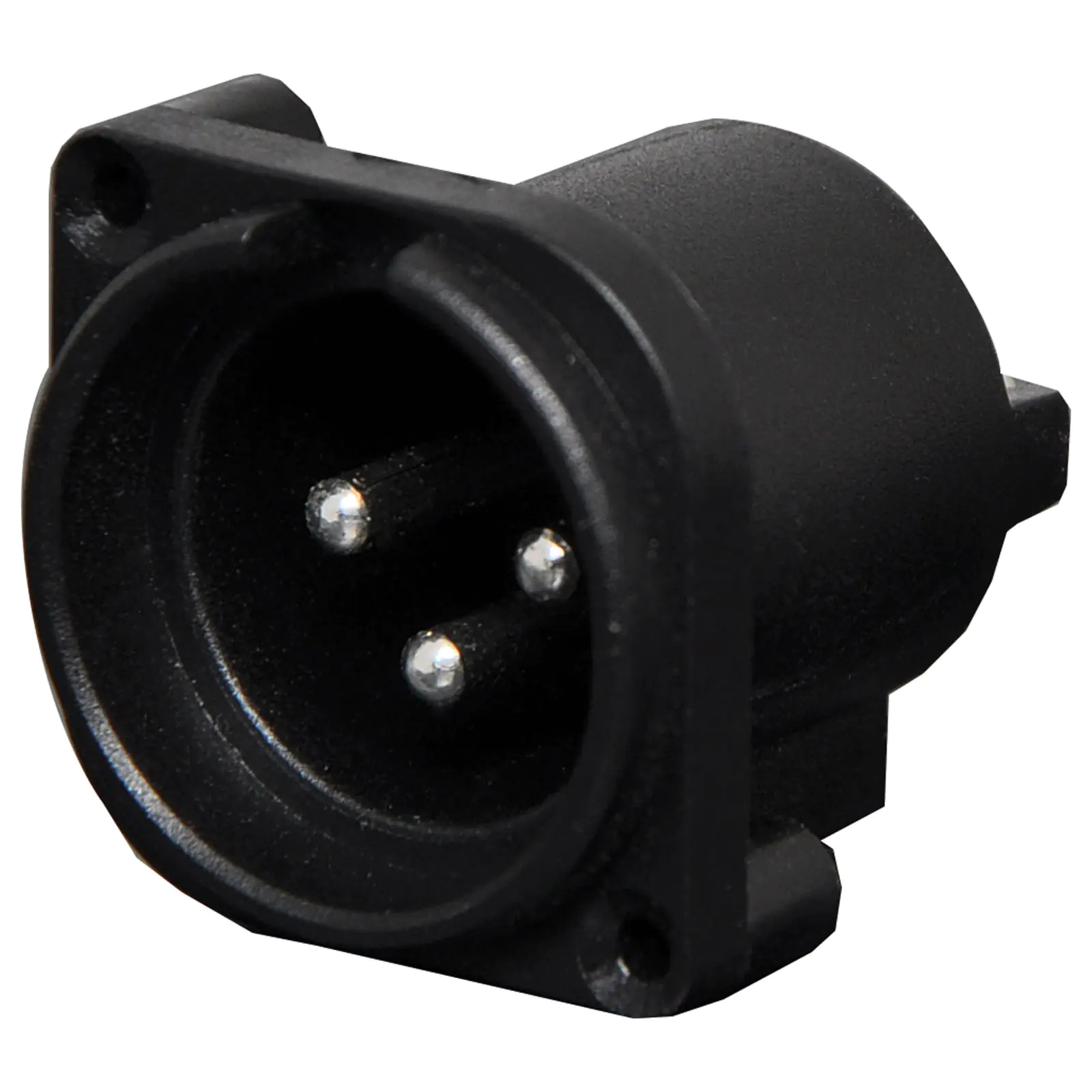

3 Pin Male Horizontal PCB Mount XLR

SKU: P0871
Straight pin PCB mount XLR connectors.
$2.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.77
10+ $2.50
40+ $2.23
i h

Overview

Straight pin PCB mount XLR connectors.





Specifications:



Life: 10,000 Cycles Min.

Insertion / Withdrawal Force: 3~5 kg·f/cm

Contact Resistance: 20mΩ(Max.)

Insulation Resistance: Over 100MΩ

Dielectric Withstanding Voltage: 500V AC

Contact Rating: 25A, 48V DC



Features:

  • Reduced and compact size (mounting pitch: 20mm)
  • Housing is made of thermoplastic material with Glassfiber
  • Vertical and horizontal P.C. Board mounting are available

Details

Products specifications

Warranty 12 Months
Connectors
Gender Plugs
