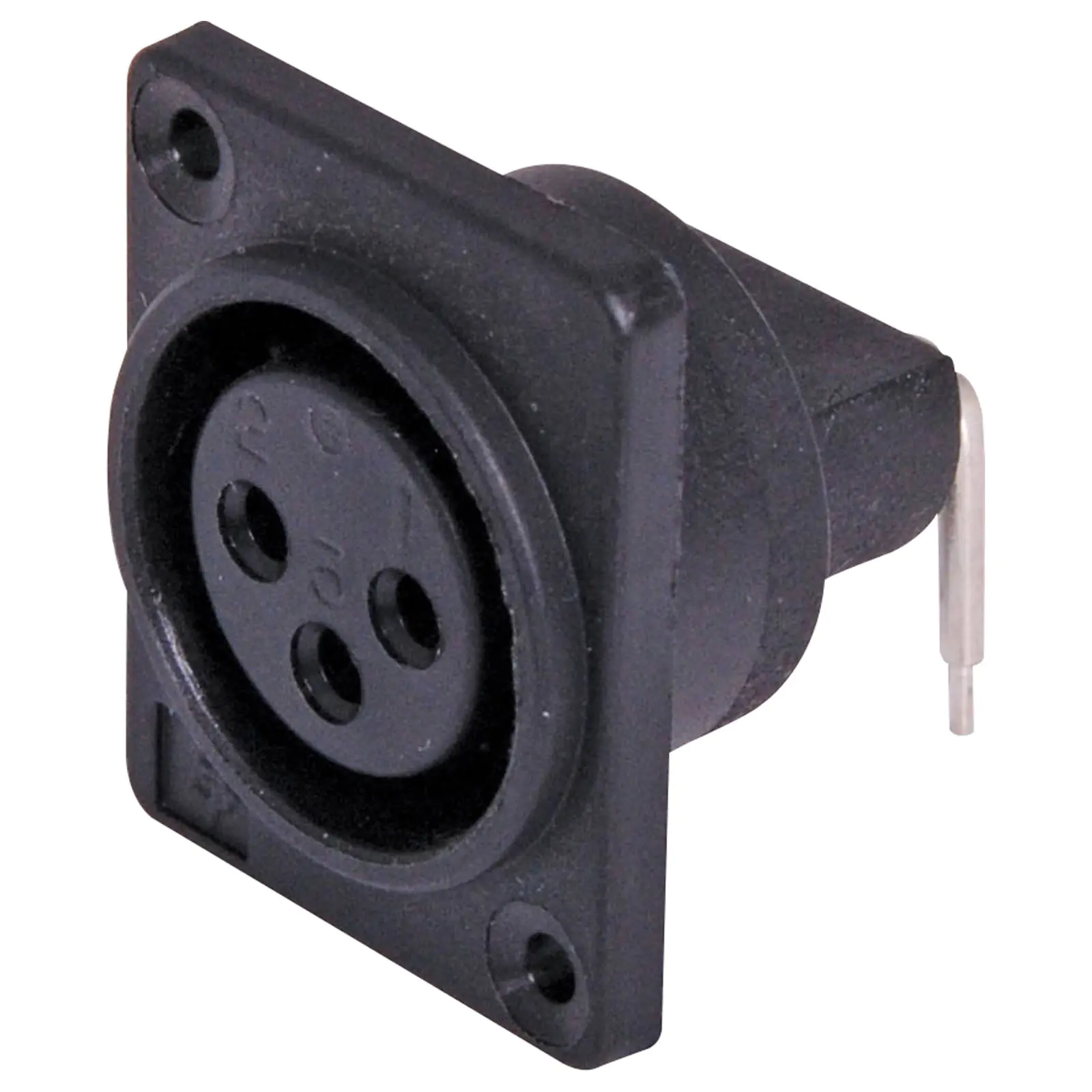

3 Pin Female 90° PCB / Chassis Mount XLR

SKU: P0882
90 deg. PCB mount XLR Female connector
$2.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.82
10+ $2.55
40+ $2.27
i h

Overview

90° PCB mount XLR Female connector

Features:

  • 3 circuits male and female type
  • Housing is made of thermoplastic material with Glass fiber
  • Vertical and horizontal P.C. Board mounting are available



Specifications:

Life: 10,000 Cycles Min. (Insertion / Withdrawal)

Insertion / Withdrawal Force: 3~5 kg·f/cm

Contact Resistance: 20 mΩ(Max.)

Insulation Resistance: Over 100MΩ

Dielectric Withstanding Voltage: 500V AC

Contact Rating: 25A, 48V DC



Details

Products specifications

Warranty 12 Months
Connectors
Gender Sockets
